Bently Nevada 3500/15E Power Supply Module

Bently Nevada 3500/15E Power Supply Module

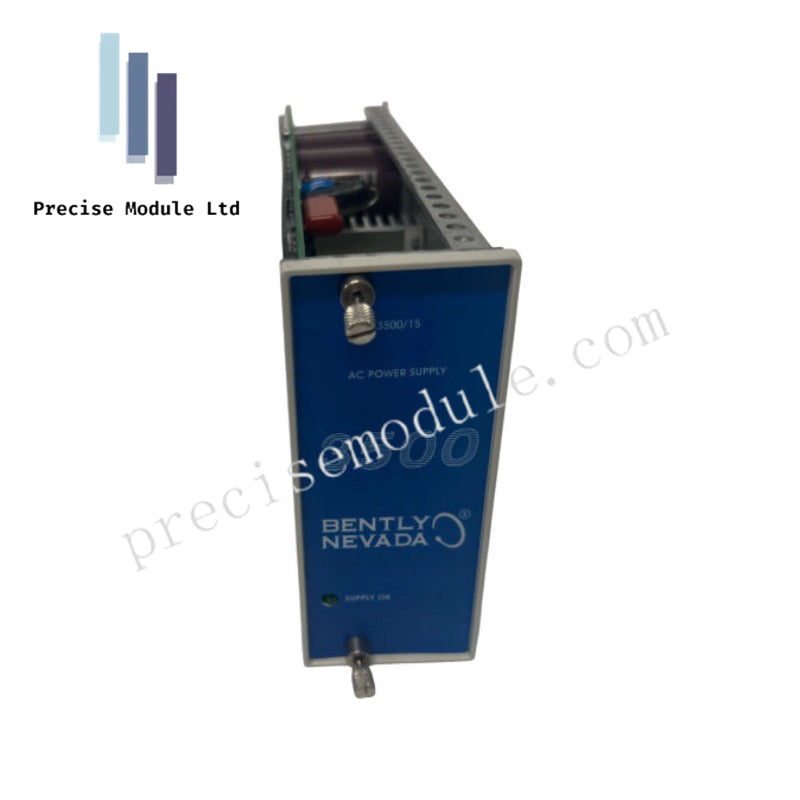

The Bently Nevada 3500/15E, also cataloged as the 3500/15 Power Supply Module, operates as a dedicated hardware component for converting line voltage to internal system bus voltages within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Power Bus Validation

Designed for the 3500 Machinery Protection System, this unit maintains strict gap voltage validation and cross-talk suppression on the backplane power distribution rails. The module guarantees stable DC output rails to support proximity probes, eddy-current transducers, and vibration monitoring cards without introducing electrical noise into critical rotor dynamics monitoring circuits. Dual power supply configurations utilize hot-swappable redundancy where the lower slot acts as primary and the upper slot acts as backup, ensuring zero operational interruption during primary power loss or module extraction.

Frequently Asked Questions

• Q: Can the module be inserted or removed under power?
  • A: Yes, the 3500/15 series module supports hot-swapping. Removing or inserting either power supply module does not disrupt rack operation provided a second operational power supply is installed in the system.
• Q: What is the structural role of dual supplies in a single rack?
  • A: When two power supplies are installed, the unit in the lower slot functions as the primary power source, while the upper slot unit serves as an active hot-backup supply.

Field Installation Guidelines

• Slot Placement: Install the 3500/15E exclusively in the designated half-height power supply slots located on the far left side of the 3500 rack framework.
• Grounding Requirements: Ensure the rack chassis is securely connected to the plant earth ground to maintain electromagnetic compatibility and protect internal switching circuits from transient surges.
• Wiring Verification: Verify AC or DC input voltage ranges at the terminal blocks prior to energizing the module to prevent internal fuse damage.
