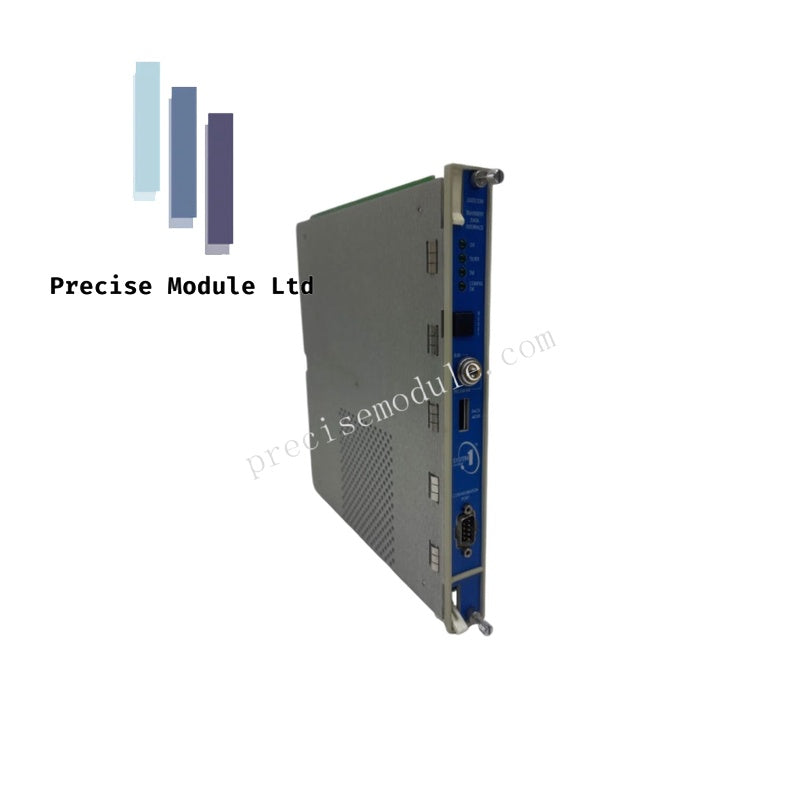

Bently Nevada 3500/22-01-01-05 (138607-01+146031-01) Transient Data Interface Module Bundle

Bently Nevada 3500/22-01-01-05 (138607-01+146031-01) Transient Data Interface Module Bundle

The Bently Nevada 3500/22-01-01-05, encompassing part numbers 138607-01 (Transient Data Interface Module) and 146031-01 (10Base-T/100Base-TX I/O Module), operates as a combined hardware assembly for executing network communications, rack management, and dynamic data collection tasks within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating via the integrated Transient Data Interface (TDI) and 10Base-T/100Base-TX I/O card, this bundle manages high-resolution transient waveform routing, gap voltage validation targets (-10 VDC), and data transfer to System 1 host software. The module processes steady-state and dynamic rotor dynamics streams originating from M-series monitor cards across the backplane bus. It provides a physical Ethernet gateway for remote diagnostics without participating in the critical machine protection shutdown loop.

Frequently Asked Questions

• Q: Does the 3500/22-01-01-05 assembly reside in the critical machinery protection path?
  • A: No, while the bundle handles communication and transient data aggregation, it remains isolated from the critical monitoring path and exerts no control over automatic machinery protection shutdowns.
• Q: Where must this hardware combination be installed within the 3500 rack structure?
  • A: The TDI processor module and its designated I/O module must occupy Slot 1 immediately adjacent to the rack power supply slots.

Field Installation Guidelines

• Slot Placement: Insert the 138607-01 processor card into Slot 1 of the front rack and secure the matching 146031-01 I/O module into the corresponding rear backplane position.
• Shielding and Grounding: Terminate industrial CAT5/CAT6 Ethernet cable shielding directly to the designated panel grounding bar to mitigate electromagnetic interference.
• Network Verification: Validate link status LEDs and verify IP configuration parameters prior to launching System 1 host software communication sessions.
