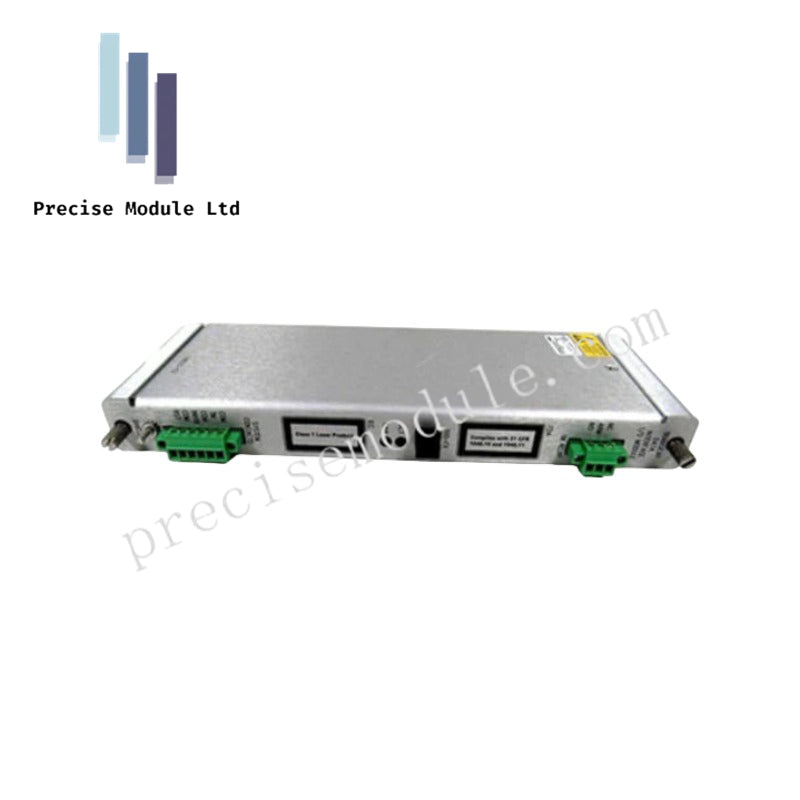

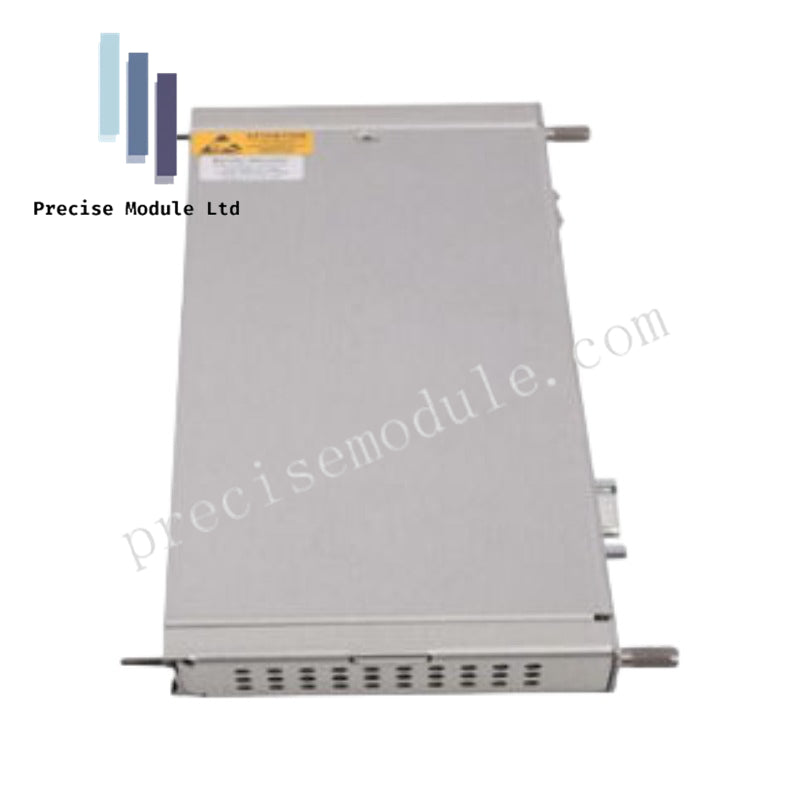

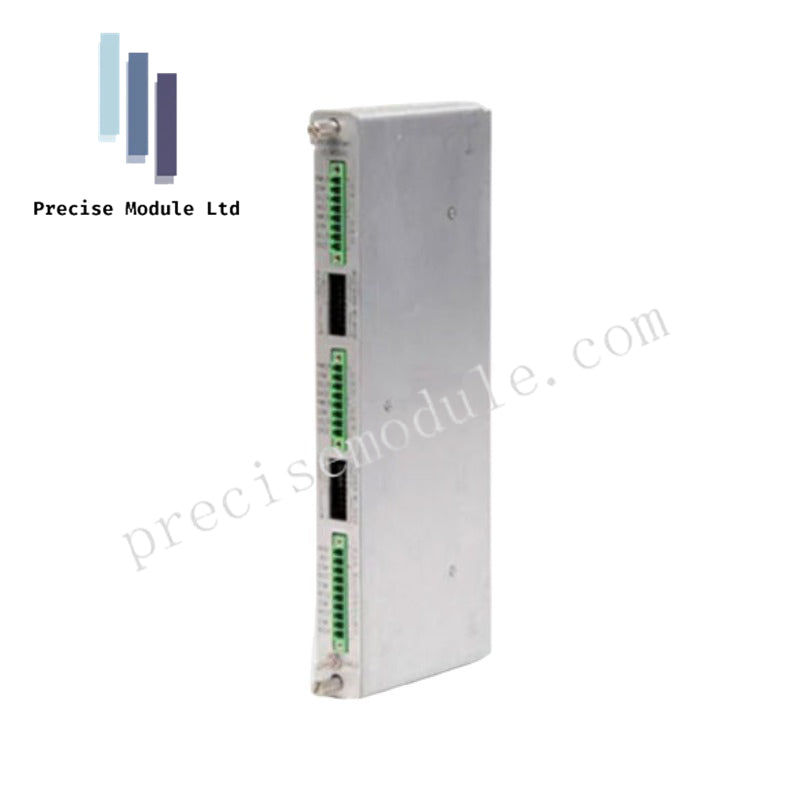

Bently Nevada 3500/22 161580-01 I/O Module

Bently Nevada 3500/22 161580-01 I/O Module

The Bently Nevada 3500/22 161580-01, also cataloged as the 3500/22 I/O Module, operates as a dedicated hardware component for executing Ethernet communication interface and data routing tasks within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating in conjunction with the Transient Data Interface (TDI) module, this I/O card manages high-resolution transient data routing, gap voltage validation targets (-10 VDC), and dynamic waveform transfer to host diagnostic software. The unit handles steady-state and dynamic rotor dynamics streams from M-series monitor cards via backplane communication buses while maintaining strict cross-talk suppression. It acts as the primary physical network interface for the rack without entering the critical machine protection shutdown path.

Frequently Asked Questions

• Q: Does the 3500/22 I/O module reside in the critical machinery protection path?
  • A: No, while it provides communication and transient data collection functions, it is isolated from the critical monitoring path and does not affect automatic machinery protection functions.
• Q: Where must this module be mounted within the 3500 rack structure?
  • A: The associated Transient Data Interface and its corresponding I/O module must occupy Slot 1 immediately adjacent to the power supply modules.

Field Installation Guidelines

• Slot Placement: Install the 3500/22 161580-01 module in the designated Slot 1 backplane position directly linked to the Transient Data Interface card.
• Shielding and Grounding: Terminate industrial Ethernet cable shielding directly to the panel grounding bar to prevent electromagnetic interference across communication networks.
• Network Verification: Verify link integrity and IP configuration parameters before initiating communication with System 1 diagnostic software.
