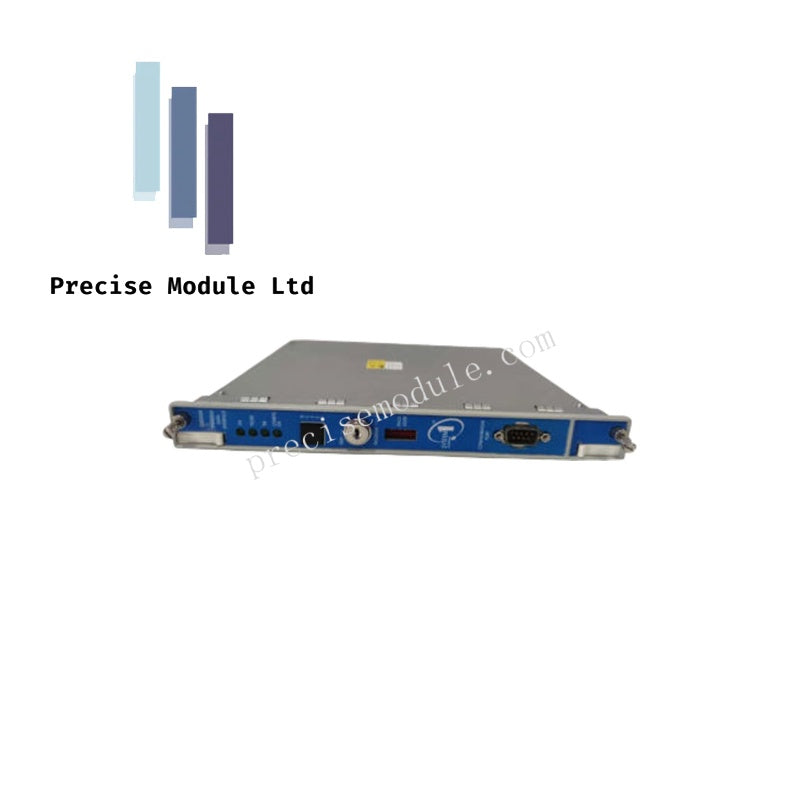

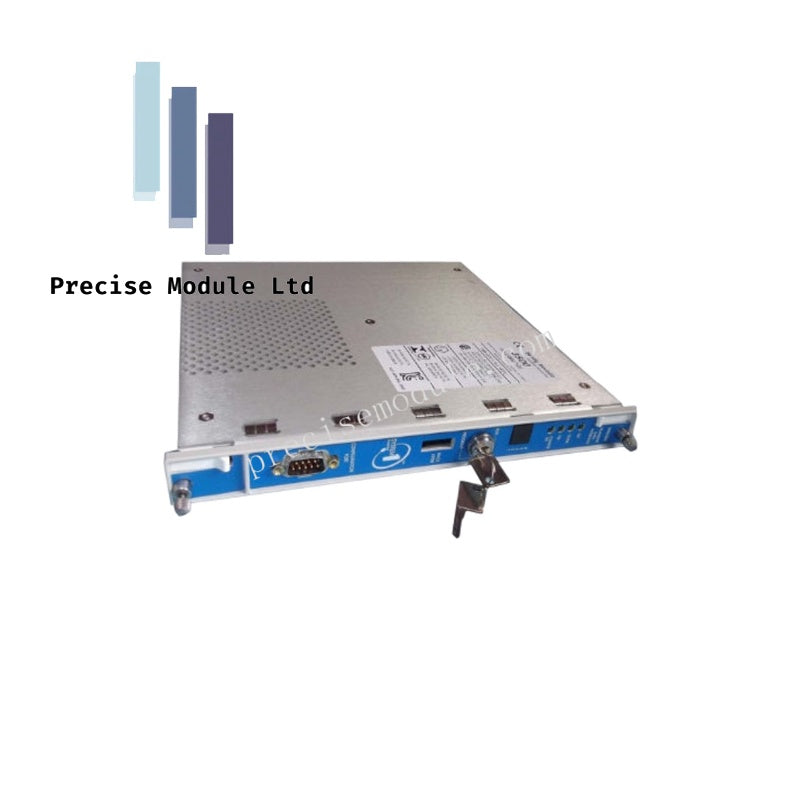

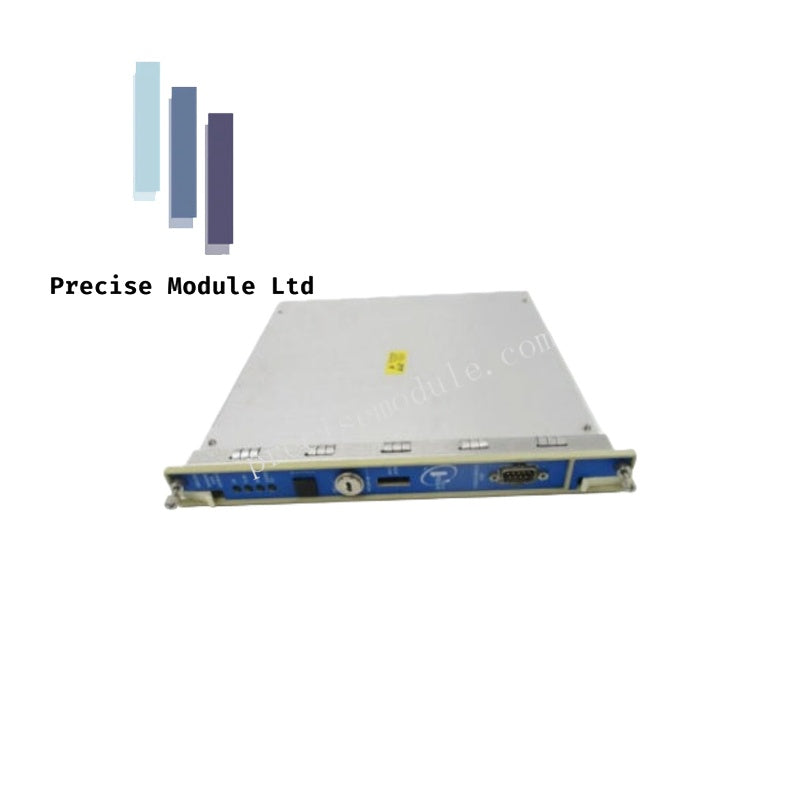

Configured for transient waveform data acquisition and communication processing in Bently Nevada 3500 Machinery Monitoring System platforms, the Bently Nevada 3500/22M 138607-01 (138607-01 Transient Data Interface) provides direct physical/electrical execution for rack-level data collection and host software communication.

Suffix Breakdown & Model Matrix

Hardware Specifications

Firmware Flash Compatibility and Rack Communication Processing

The 3500/22M 138607-01 Transient Data Interface combines the functions of a 3500/20 Rack Interface Module and a communication processor within the 3500 rack architecture. The module continuously collects steady-state data and transient dynamic waveform data from compatible M series monitors and transfers collected information through an Ethernet connection to host software.

The TDI supports static data capture as standard. With an optional Channel Enabling Disk, the module can capture dynamic and high-resolution transient data. The TDI occupies Slot 1 in the 3500 rack and provides rack communication functions without affecting the normal operation of the automatic machinery protection monitoring path.

Frequently Asked Questions

Q: Where is the 3500/22M 138607-01 installed in a 3500 rack?
A: The TDI is installed in Slot 1, directly adjacent to the rack power supplies.

Q: Does the 3500/22M participate in the critical machinery protection monitoring path?
A: The TDI provides communication and data collection functions and does not affect normal operation of the automatic machinery protection monitoring path.

Q: What type of data can be collected by the 3500/22M?
A: The module collects steady-state data and transient dynamic waveform data from compatible 3500 M series monitors.

Field Installation Guidelines

• Install the 3500/22M TDI in the dedicated Slot 1 position adjacent to the rack power supplies.
• Verify rack power configuration before inserting or removing the module.
• Connect communication interfaces according to the 3500 system wiring configuration.
• Maintain separation between Ethernet communication cables and high-current power wiring.
• Confirm module seating and backplane connection after installation.
• Configure communication parameters using compatible 3500 System Configuration Software.
• Verify data acquisition and communication status before returning the rack to service.
