Bently Nevada 3500/22M 146031-01 10Base-T/100Base-TX I/O Module

Bently Nevada 3500/22M 146031-01 10Base-T/100Base-TX I/O Module

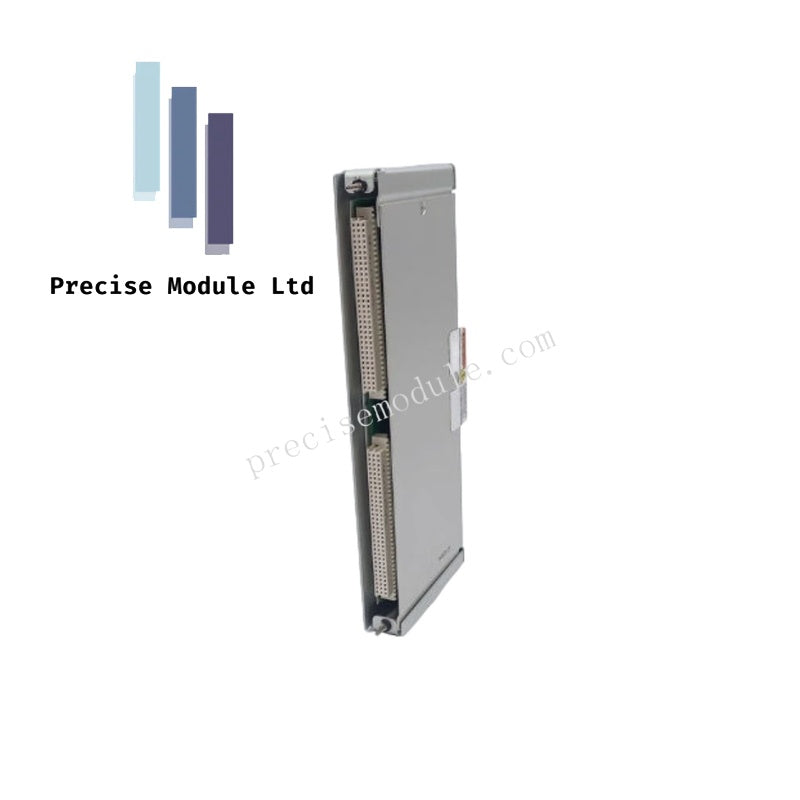

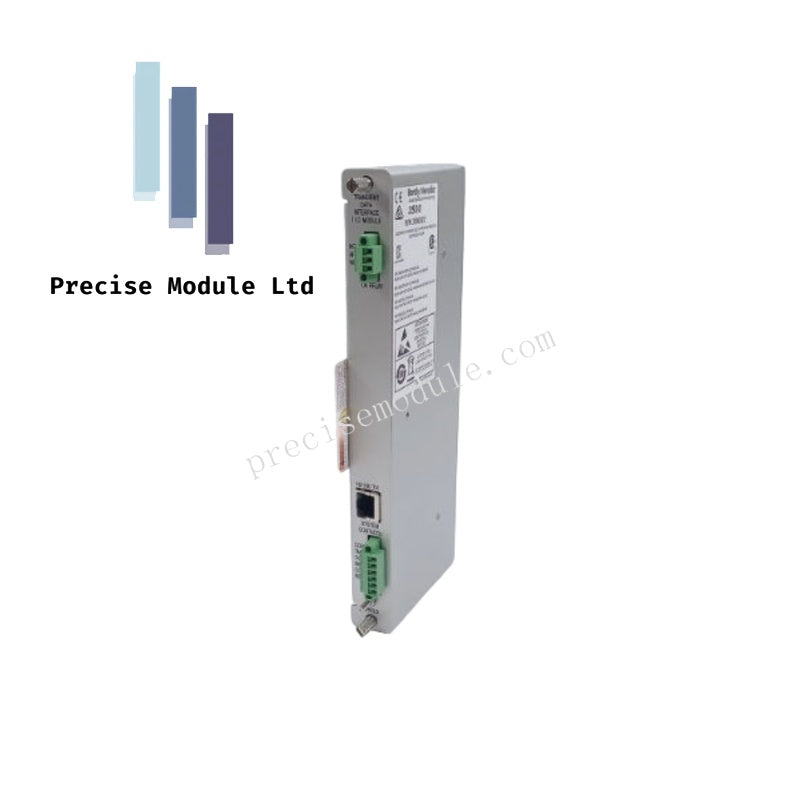

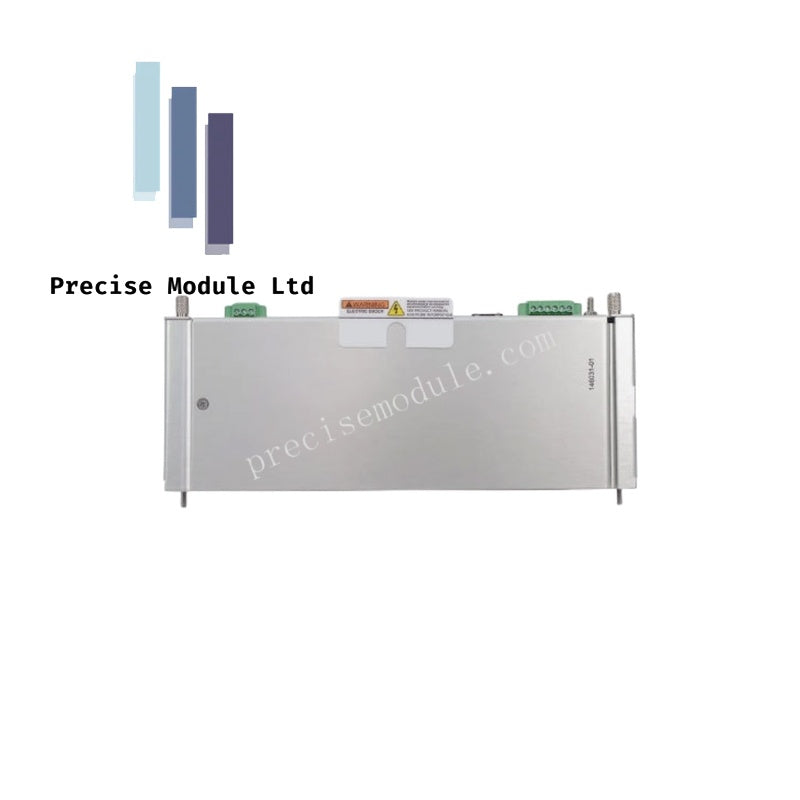

The Bently Nevada 3500/22M 146031-01, cataloged as the 10Base-T/100Base-TX I/O Module, operates as a dedicated rear-rack hardware component for executing Ethernet communication interfaces, signal conditioning, and data routing tasks within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating in conjunction with the Transient Data Interface (TDI) processor module, this I/O card manages high-resolution transient data routing, gap voltage validation targets (-10 VDC), and dynamic waveform transfers to host diagnostic software. The unit processes steady-state and dynamic rotor dynamics streams originating from M-series monitor cards via backplane communication buses while maintaining strict input signal fidelity and cross-talk suppression. It acts as the physical network and connection gateway for the rack without entering the critical machine protection shutdown path.

Frequently Asked Questions

• Q: Does the 3500/22M 146031-01 I/O module reside in the critical machinery protection path?
  • A: No, while it handles network connectivity and data routing functions, it remains isolated from the critical monitoring path and does not affect automatic machinery protection functions.
• Q: Where must this I/O module be mounted within the 3500 rack structure?
  • A: The I/O module must occupy the rear backplane position directly corresponding to Slot 1, immediately adjacent to the rack power supply slots.

Field Installation Guidelines

• Slot Placement: Install the 3500/22M 146031-01 module into the designated rear Slot 1 backplane position directly linked to the front TDI processor card.
• Shielding and Grounding: Terminate industrial Ethernet cable shielding directly to the panel grounding bar to prevent electromagnetic interference across plant communication networks.
• Network Verification: Verify link integrity, port status, and IP configuration parameters prior to initiating communication with System 1 diagnostic software.
