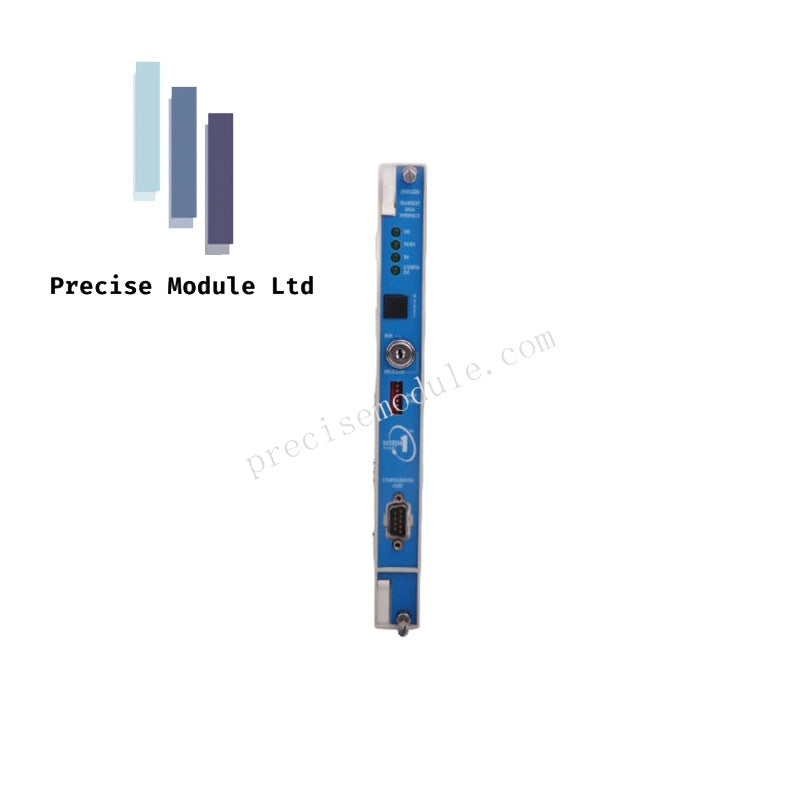

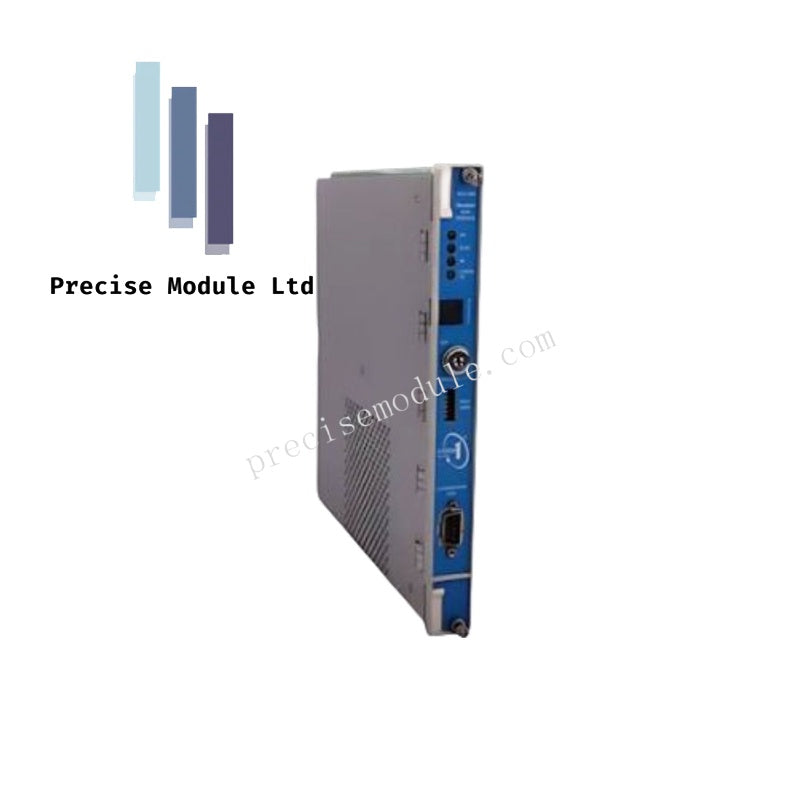

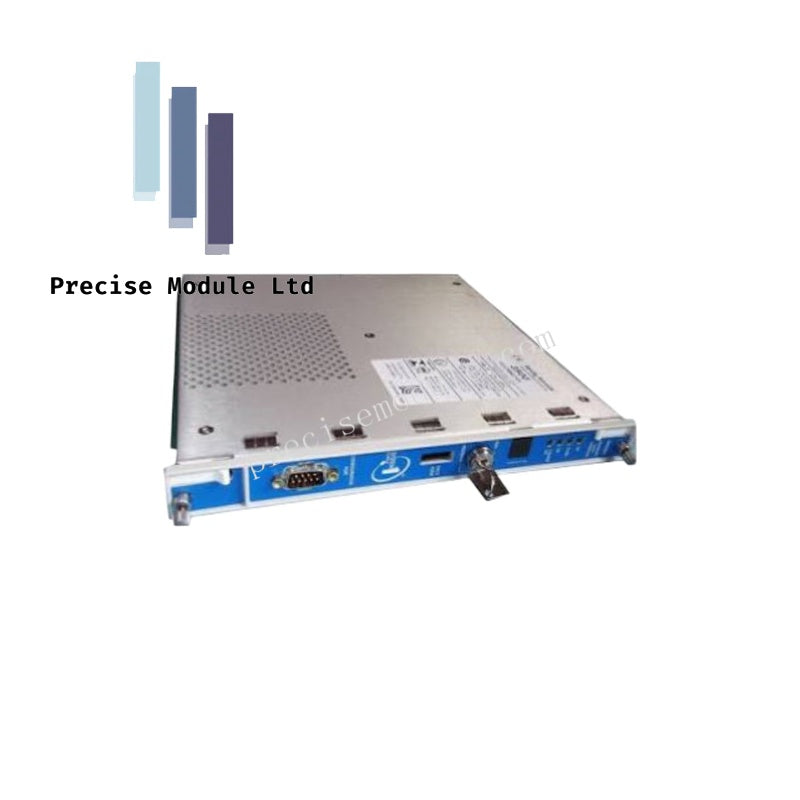

Bently Nevada 3500/22M 288055-01 Transient Data Interface Module

Bently Nevada 3500/22M 288055-01 Transient Data Interface Module

The Bently Nevada 3500/22M 288055-01, cataloged as the Standard Transient Data Interface Module with USB cable, operates as a dedicated processor component for executing rack management, communication routing, and dynamic data collection tasks within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating as the primary communication and rack interface processor, this unit aggregates steady-state and dynamic transient waveform data from M-series monitor cards via the backplane bus. It interfaces directly with System 1 Condition Monitoring and Diagnostic software, handling high-resolution event capture and gap voltage validation parameters (-10 VDC). While it centralizes rack configuration and diagnostic communication tasks through its USB and network interfaces, it remains isolated from the critical safety loop and exerts no control over automatic machinery protection shutdowns.

Frequently Asked Questions

• Q: Does the 3500/22M 288055-01 module reside in the critical machinery protection path?
  • A: No, while it aggregates rack data and manages software communications, it is structurally isolated from the critical monitoring path and does not affect automatic machinery protection functions.
• Q: Where must this processor module be positioned within the 3500 rack?
  • A: The Transient Data Interface must occupy Slot 1 immediately adjacent to the rack power supply modules.

Field Installation Guidelines

• Slot Placement: Insert the 3500/22M 288055-01 module securely into Slot 1 of the front rack backplane framework.
• Interface Connections: Connect the included USB cable or rear communication links strictly according to network architecture requirements for System 1 integration.
• System Verification: Confirm proper power-up sequences, verify backplane communication LEDs, and validate software link parameters prior to operational handoff.
