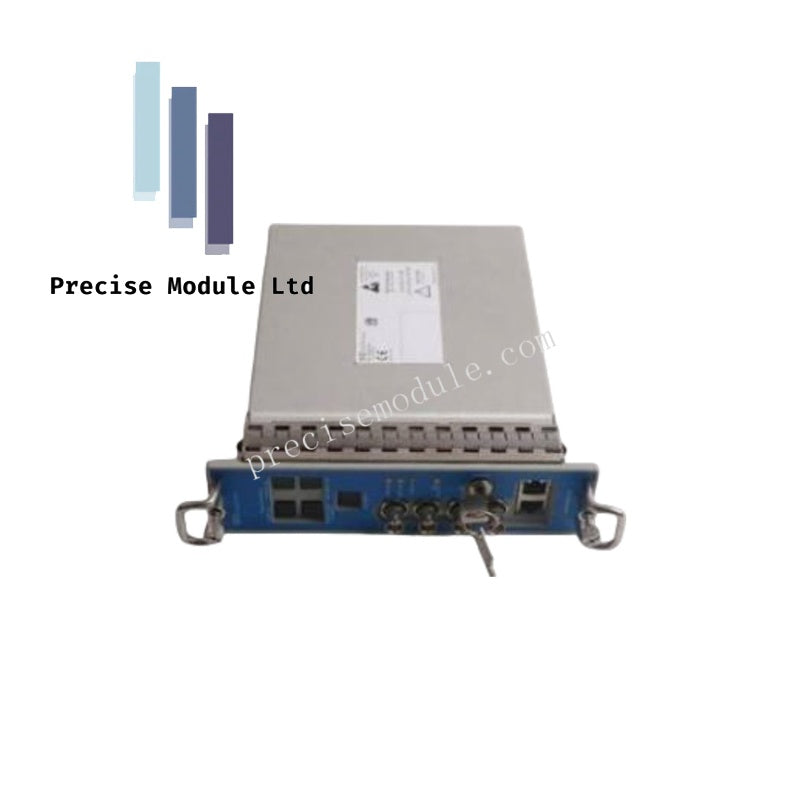

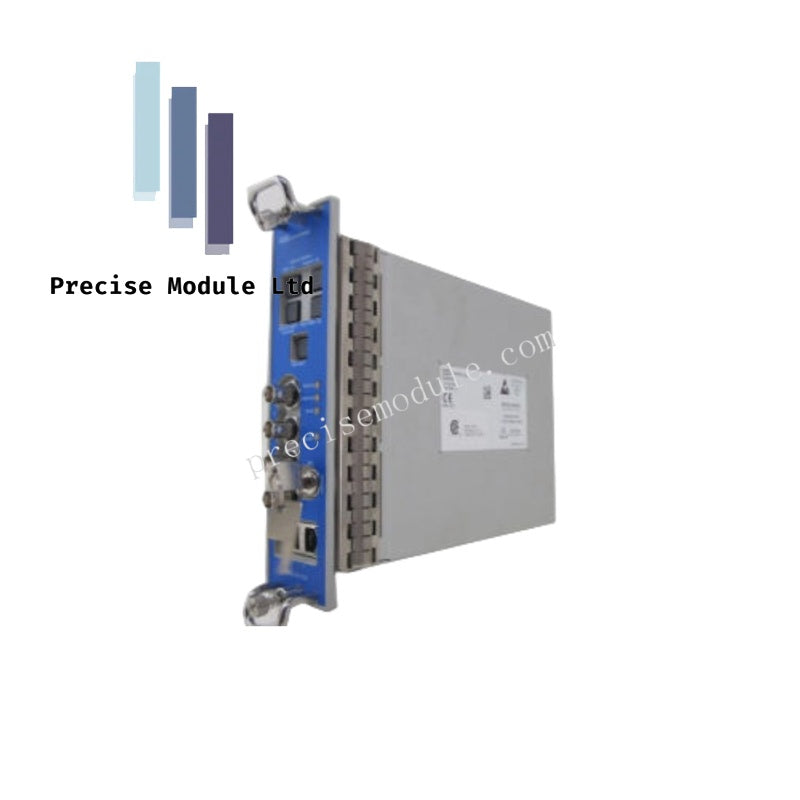

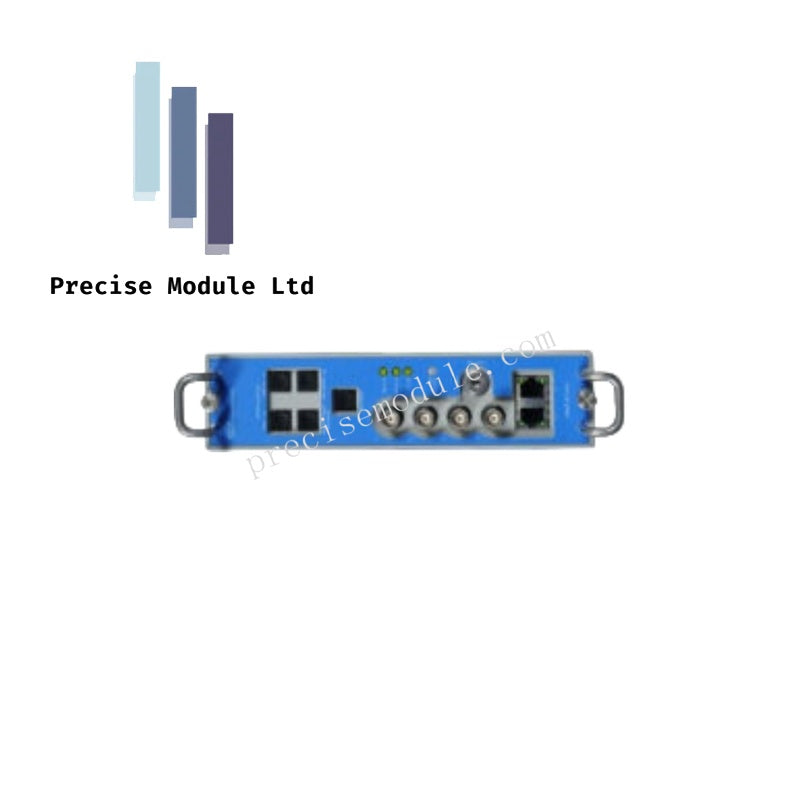

Bently Nevada 3500/23E Transient Data Interface

Bently Nevada 3500/23E Transient Data Interface

The Bently Nevada 3500/23E, cataloged as the 3500/23E Transient Data Interface (TDI), operates as a dedicated processor and communication component designed specifically for the 3500 ENCORE monitoring system platform to link machinery hardware with GE's System 1 diagnostic software.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating as the primary communication processor and system monitor within the 3500 ENCORE rack framework, this unit continuously aggregates steady-state and dynamic transient waveform data from vibration monitors such as the 3500/42E. It routes these streams through high-speed Ethernet links to host software while supporting legacy serial communication protocols (RS232, RS422, and RS485) for seamless integration with external process control and automation networks. While it centralizes rack configuration and diagnostic data collection, it remains completely isolated from the critical safety loop to prevent interference with automatic machinery protection functions.

Frequently Asked Questions

• Q: Does the 3500/23E TDI module participate in the critical machinery protection path?
  • A: No, while it aggregates rack data and manages external software communications, it is structurally isolated from the critical monitoring path and exerts no influence over automatic machinery protection shutdowns.
• Q: Where must the 3500/23E module be installed within the rack framework?
  • A: The 3500/23E TDI module must occupy Slot 1 immediately adjacent to the rack power supply modules within every 3500 ENCORE rack.

Field Installation Guidelines

• Slot Placement: Insert the 3500/23E processor module securely into the designated Slot 1 system monitor position of the 3500 ENCORE rack.
• Communication Wiring: Terminate Ethernet and serial communication lines (RS232/RS422/RS485) securely, ensuring proper cable shielding to prevent electromagnetic interference across industrial networks.
• System Verification: Validate power-up sequences, examine backplane communication indicators, and verify network parameters before establishing active links with System 1 diagnostic software.
