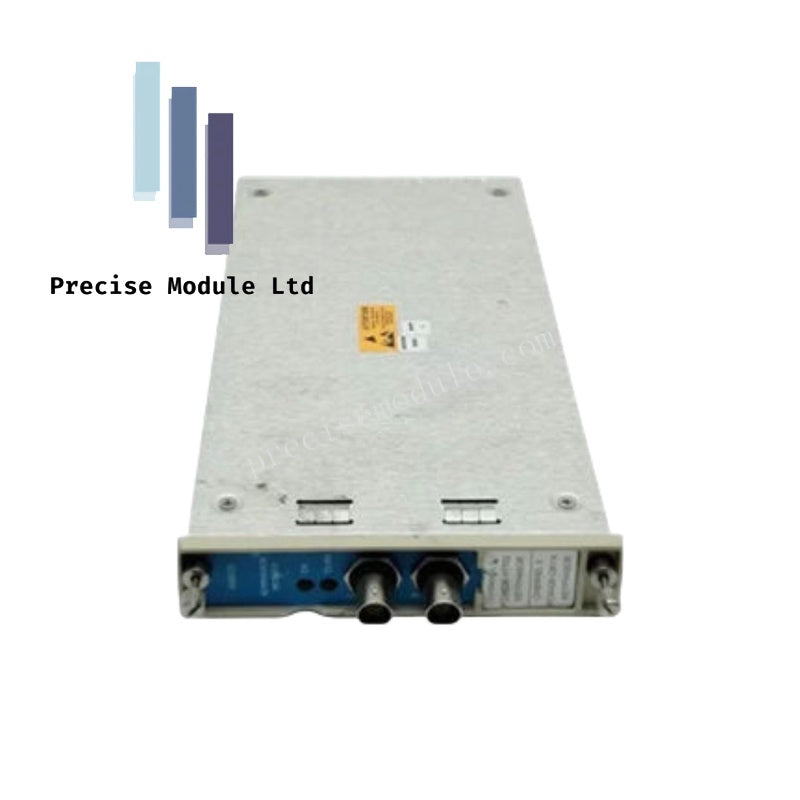

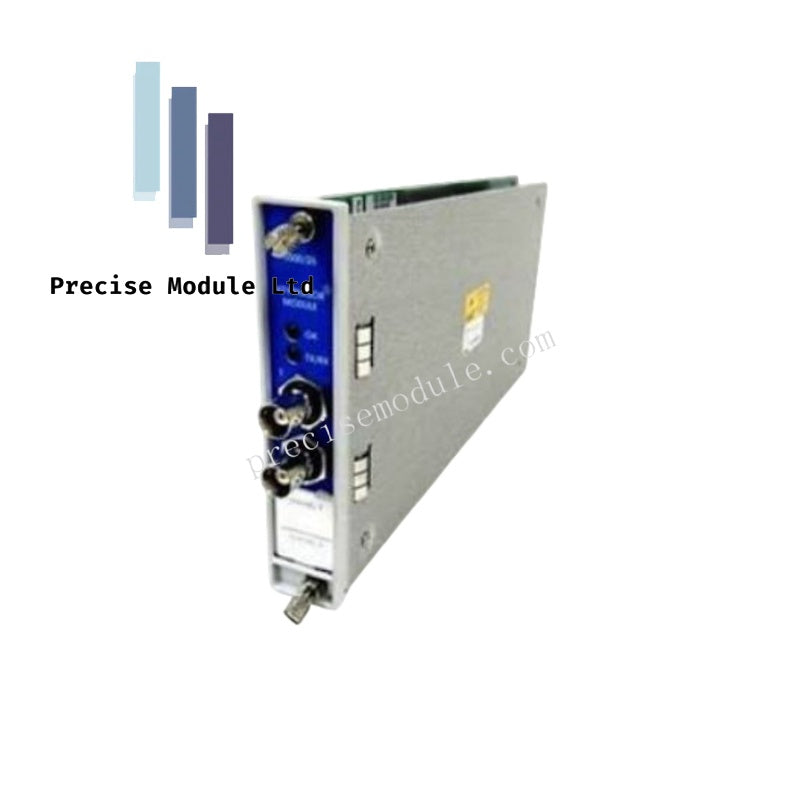

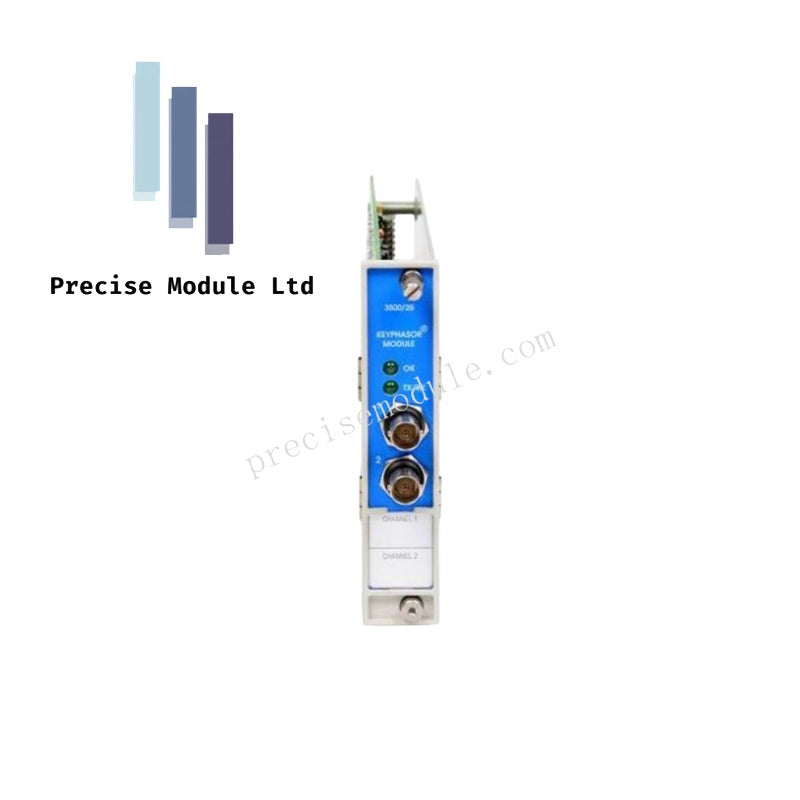

The Bently Nevada 3500/25 125792-01, cataloged as the Enhanced Keyphasor Module, operates as a dedicated two-channel half-height processor card designed to condition proximity probe and magnetic pickup signals into precise digital timing pulses within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating as a critical timing source for rotor dynamics analysis, this module translates raw shaft-vibration transducer inputs into digital Keyphasor markers. These markers establish exact shaft rotational speed and phase angle references (1X, 2X, and sub-synchronous vectors) required by monitor cards and System 1 diagnostic software. A standard rack configuration supports up to four Keyphasor signals, while paired configurations expand capacity to eight channels. Galvanic channel-to-ground isolation safeguards low-level speed signals against ground loops and electromagnetic transients across plant architectures.

Frequently Asked Questions

• Q: What is the primary function of the Bently Nevada 3500/25 125792-01 module?
  • A: It accepts raw input signals from proximity probes or magnetic pickups and converts them into digital Keyphasor pulses indicating exact shaft-marker alignment.
• Q: How many Keyphasor channels can an integrated 3500 rack handle?
  • A: Standard configurations accept up to four Keyphasor signals, whereas paired configurations support up to eight channels.

Field Installation Guidelines

• Module Placement: Insert the half-height 3500/25 125792-01 module into the designated front-rack slot assigned for Keyphasor processing cards.
• Signal Wiring: Terminate proximity probe or magnetic pickup signal conductors securely, utilizing shielded cabling to eliminate electrical noise interference.
• Verification: Confirm power-up indicators, check transducer gap voltages, and validate speed/phase synchronization with monitor modules prior to system commissioning.
