Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module

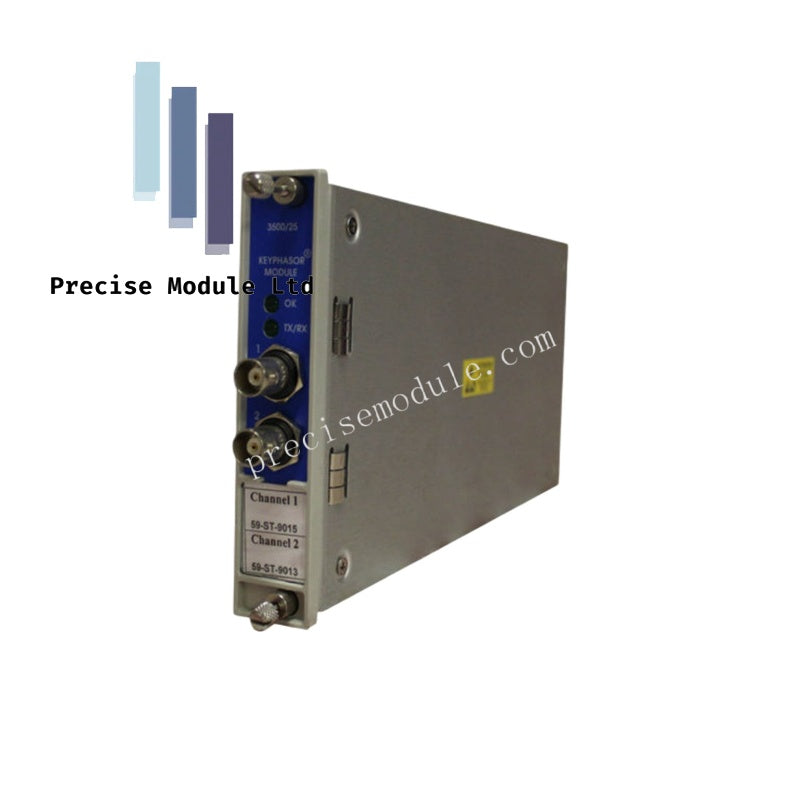

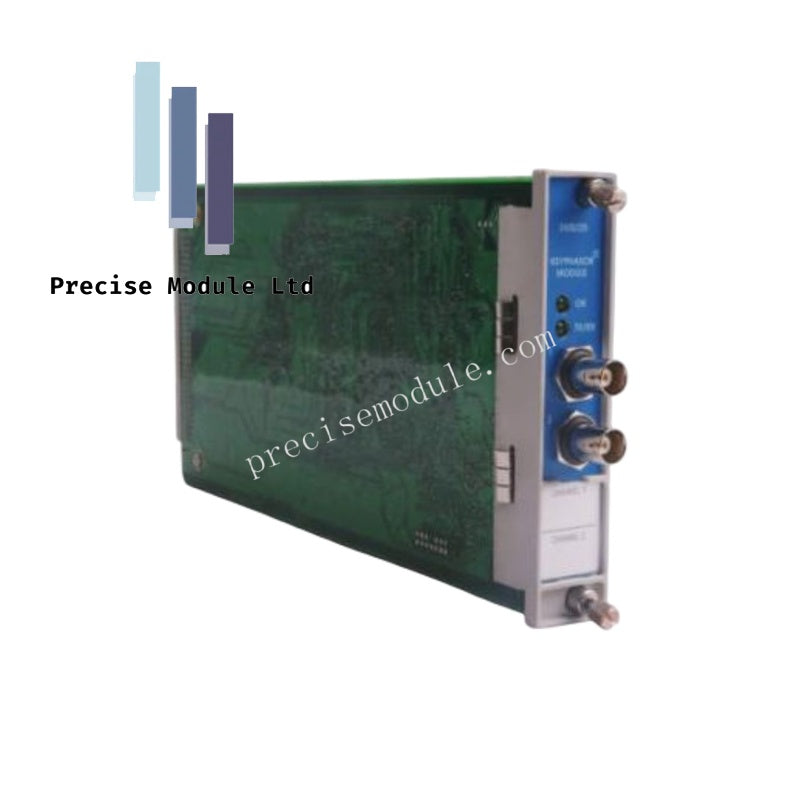

The Bently Nevada 3500/25 149369-01, also cataloged as the 149369-01 Enhanced Keyphasor Module, operates as a dedicated hardware component for Keyphasor signal acquisition and digital pulse generation within the 3500 Machinery Protection System. The module receives signals from proximity probes or magnetic pickups and converts them into digital Keyphasor reference signals for synchronized rotor position and speed measurements.

Hardware Specifications

Keyphasor Signal Processing and Rotor Dynamics

The 3500/25 Enhanced Keyphasor Module generates digital timing references used by monitor modules to establish shaft rotational position. The module detects the passage of a Keyphasor mark relative to the transducer and distributes synchronized reference signals throughout the 3500 monitoring system.

Accurate Keyphasor timing is fundamental for rotor dynamic analysis, including phase measurements, synchronous vibration, orbit plots, polar plots, and startup or coast-down data acquisition. When proximity probes are used as the input device, proper eddy-current probe scaling and gap voltage verification, commonly near -10 VDC during commissioning, help ensure stable pulse generation and repeatable phase reference.

For Triple Modular Redundant (TMR) configurations, the 3500 system requires two Enhanced Keyphasor Modules operating in parallel. This arrangement provides both primary and secondary Keyphasor signals for redundant monitoring channels while maintaining synchronization across the rack.

Frequently Asked Questions

Q: What input devices are supported by the Enhanced Keyphasor Module?
A: The module accepts signals from compatible proximity probes and magnetic pickups, converting them into digital Keyphasor reference signals.

Q: Is the 149369-01 compatible with systems using the earlier 125792-01 module?
A: Yes. The 149369-01 replaces PWA 125792-01 while maintaining backward compatibility in form, fit, and function for legacy 3500 installations.

Q: How is a TMR Keyphasor configuration implemented?
A: The 3500 TMR architecture uses two Enhanced Keyphasor Modules operating in parallel to provide primary and secondary Keyphasor reference signals for redundant monitoring channels.

Field Installation Guidelines

• Install the module in the designated 3500 rack slot and connect the required full-height rear I/O module.
• Verify correct polarity and wiring for proximity probe or magnetic pickup inputs before energizing the rack.
• Route Keyphasor signal cables separately from high-voltage conductors to minimize electromagnetic interference.
• Ground cable shields according to the 3500 installation specification to reduce electrical noise and signal cross-talk.
• Confirm stable Keyphasor pulse detection before enabling phase, orbit, or speed-related monitoring functions.
• After commissioning, verify synchronization between the Keyphasor module and associated monitor channels.
