Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module

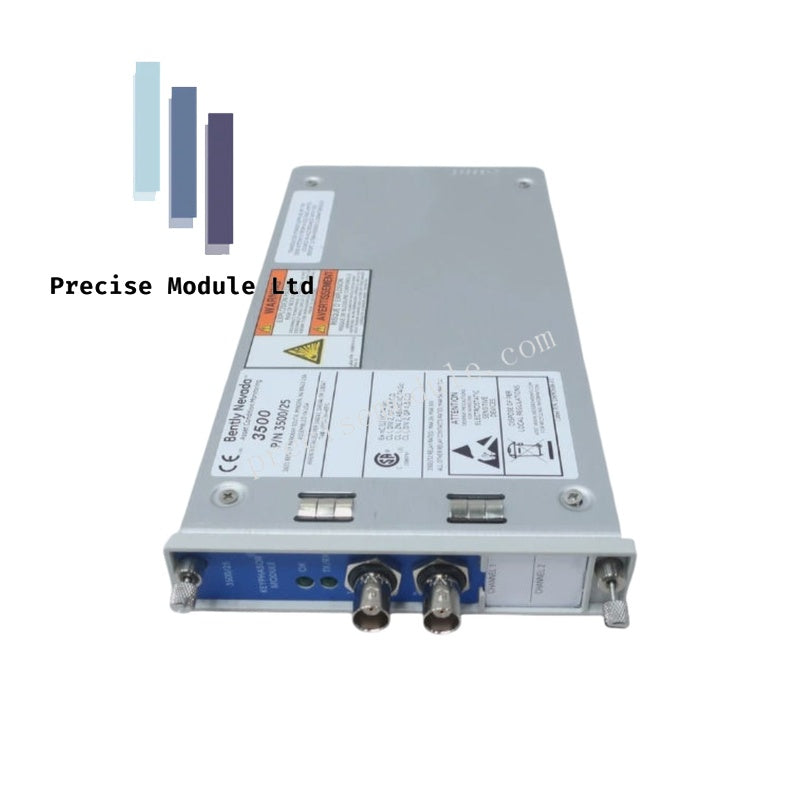

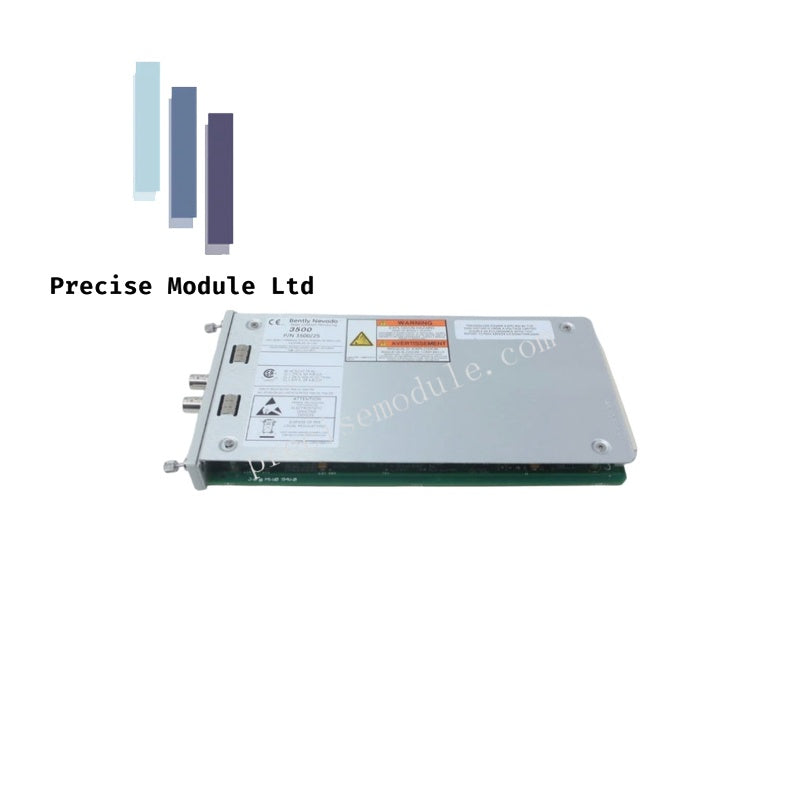

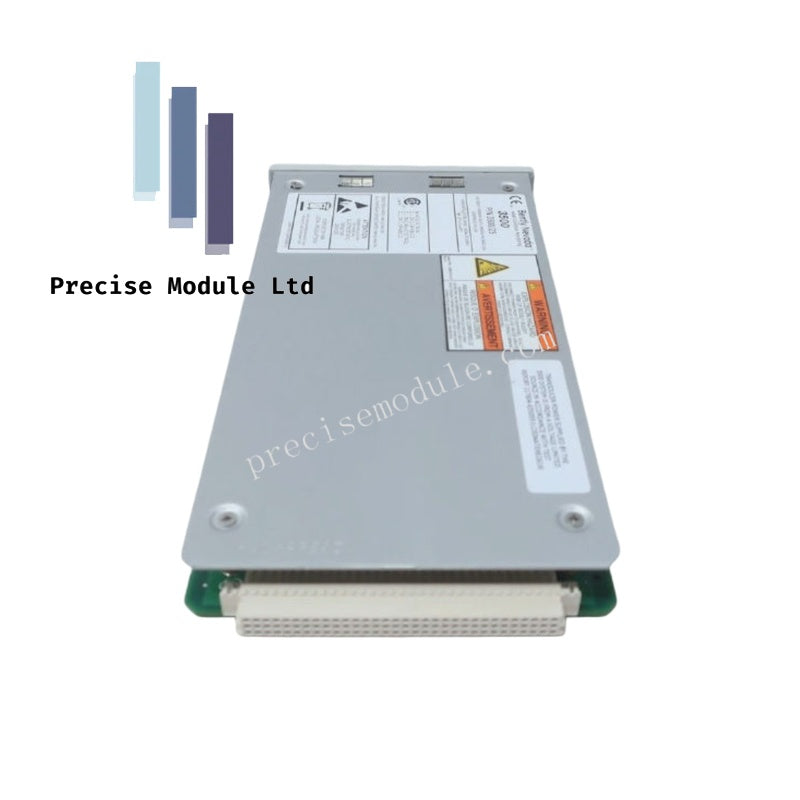

The Bently Nevada 3500/25 149369-01, cataloged as the Enhanced Keyphasor Module, operates as a dedicated two-channel half-height processor card designed to condition proximity probe and magnetic pickup signals into precise digital timing pulses within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating as a critical timing source for rotor dynamics analysis, this module translates raw shaft-vibration transducer inputs into digital Keyphasor markers. These markers establish exact shaft rotational speed and phase angle references (1X, 2X, and sub-synchronous vectors) required by monitor cards and System 1 diagnostic software. A standard rack configuration supports up to four Keyphasor signals, while paired configurations expand capacity to eight channels. The unit interfaces directly with a full-height rear I/O slot to maintain signal fidelity and secure termination paths across the backplane bus.

Frequently Asked Questions

• Q: What is the primary function of the Bently Nevada 3500/25 149369-01 module?
  • A: It receives input signals from proximity probes or magnetic pickups, converting them into digital Keyphasor pulses that indicate exact shaft-marker alignment with the transducer.
• Q: How many rear I/O slots does this module require?
  • A: It requires one full-height rear slot to accommodate its corresponding I/O interface connections.

Field Installation Guidelines

• Module Placement: Insert the half-height 3500/25 149369-01 module into the designated front-rack slot assigned for Keyphasor cards, ensuring proper alignment with the full-height rear I/O module.
• Signal Wiring: Terminate proximity probe or magnetic pickup signal conductors securely, utilizing shielded cabling to eliminate electrical noise interference.
• Verification: Confirm power-up indicators, check transducer gap voltages, and validate speed/phase synchronization with monitor modules prior to system commissioning.
