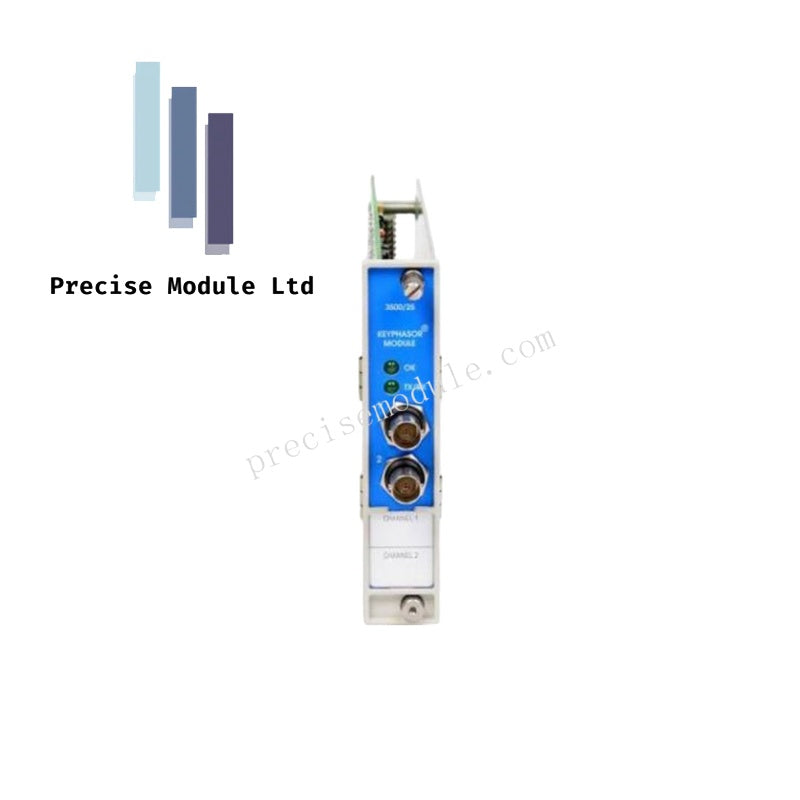

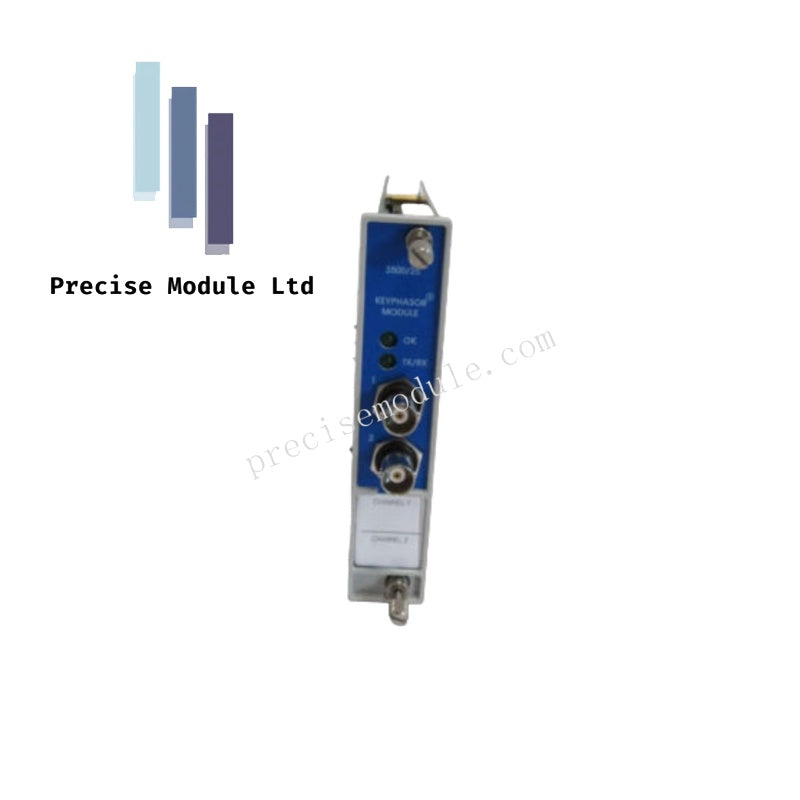

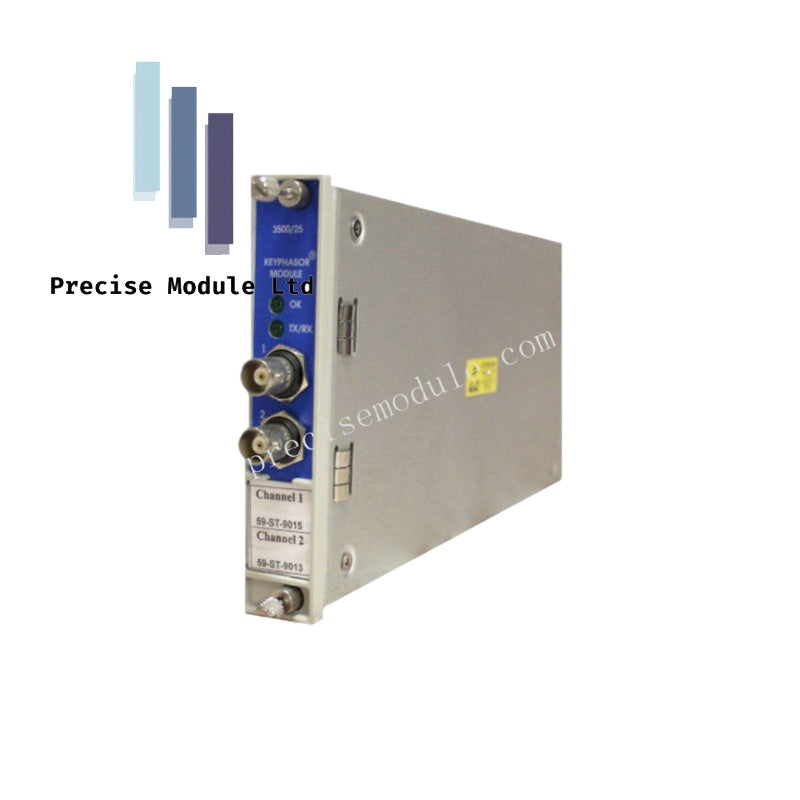

The Bently Nevada 3500/25, cataloged as the Enhanced Keyphasor Module, operates as a dedicated two-channel half-height processor card designed to condition proximity probe and magnetic pickup signals into precise digital timing pulses within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating as a critical timing source for rotor dynamics analysis, this module translates raw shaft-vibration transducer inputs into digital Keyphasor markers. These markers establish exact shaft rotational speed and phase angle references (1X, 2X, and sub-synchronous vectors) required by monitor cards and System 1 diagnostic software. A standard rack configuration supports up to four Keyphasor signals, while paired configurations expand capacity to eight channels. Buffered outputs supply clean analog signals to external diagnostic test instruments while maintaining signal integrity across the backplane.

Frequently Asked Questions

• Q: What is the primary function of the Bently Nevada 3500/25 Enhanced Keyphasor Module?
  • A: It receives input signals from proximity probes or magnetic pickups, converting them into digital Keyphasor pulses that indicate exactly when the shaft mark aligns with the transducer.
• Q: How many Keyphasor channels can a standard 3500 rack accommodate?
  • A: A standard configuration accepts up to four Keyphasor signals, whereas a paired configuration supports up to eight signals.

Field Installation Guidelines

• Module Placement: Insert the half-height 3500/25 module into the designated front-rack slot assigned for Keyphasor cards, ensuring proper alignment with the rear I/O module with external terminations.
• Signal Wiring: Terminate proximity probe or magnetic pickup signal wires securely to the external termination blocks, utilizing shielded cabling to eliminate electrical noise.
• Verification: Confirm power-up indicators, check transducer gap voltages, and validate speed/phase synchronization with monitor modules prior to system commissioning.
