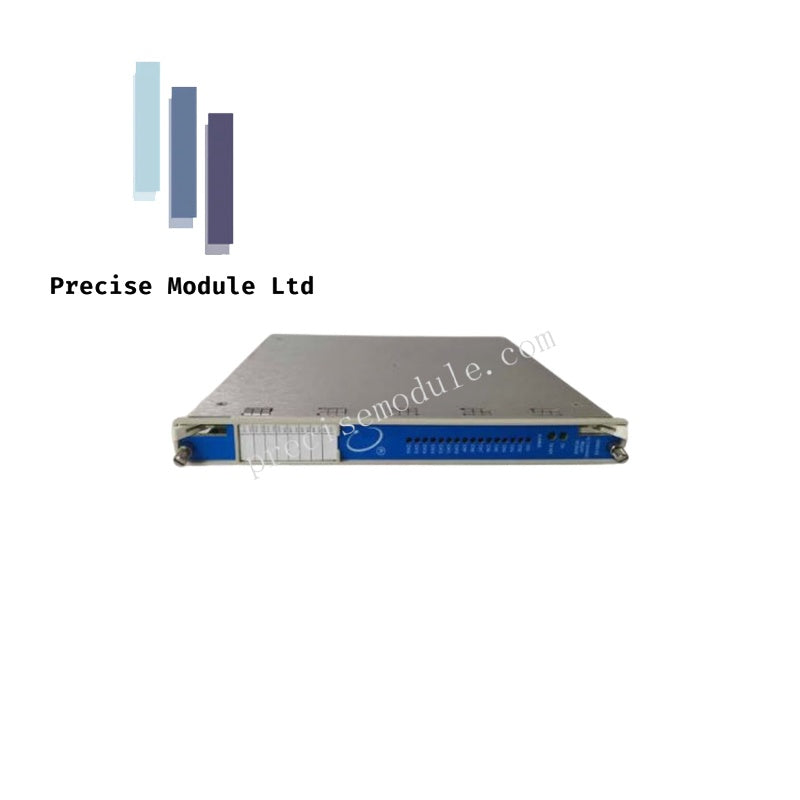

The Bently Nevada 3500/33, also cataloged as the 149986-01 16-Channel Relay Control Module, operates as a dedicated hardware component for relay output execution and voting logic processing within the 3500 Machinery Protection System.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Operating within the framework of machinery protection architecture, this module interfaces directly with rack monitor channels to evaluate alert and danger statuses. The internal circuitry processes alarm drive logic utilizing configurable AND and OR boolean operators across designated monitor channels. Signal integrity is maintained through rigorous backplane communication protocols, ensuring deterministic trip execution while suppressing cross-talk across adjacent slots.

Frequently Asked Questions

Q: Can the 3500/33 149986-01 module be hot-swapped during system operation?

A: Yes, the module supports hot-insertion and removal when installed in designated rear slots to the right of the Transient Data Interface (TDI) module, provided standard safety precautions for live rack maintenance are observed.

Q: How is the alarm logic programmed for individual relay outputs on the 3500/33 149986-01?

A: Programming is executed externally via the 3500 Rack Configuration Software, allowing users to map specific measured variables, Not-OK conditions, and alarm statuses to individual relay channels.

Field Installation Guidelines

Physical Placement: Mount the module in any available full-height rear slot situated to the right of the Transient Data Interface (TDI) module within the 3500 rack frame.

Wiring and Grounding: Ensure all external field wiring connected to the relay terminals complies with local electrical codes and is properly shielded to prevent electromagnetic interference.

Verification: Verify power consumption limits against rack power supply capacity prior to initial system energization.
