Bently Nevada 3500/34 I/O Modules

Bently Nevada 3500/34 I/O Modules

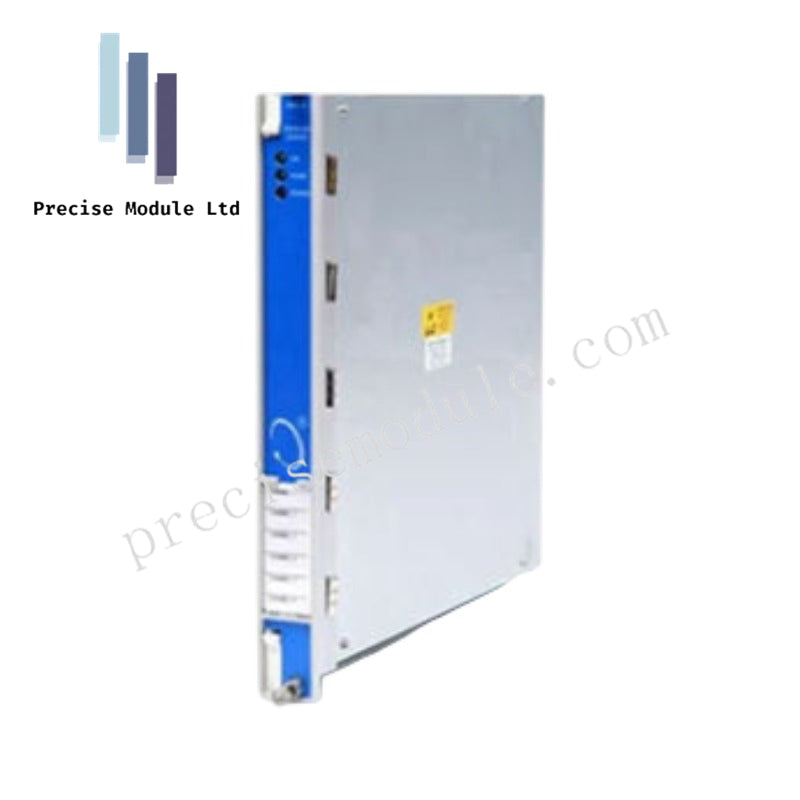

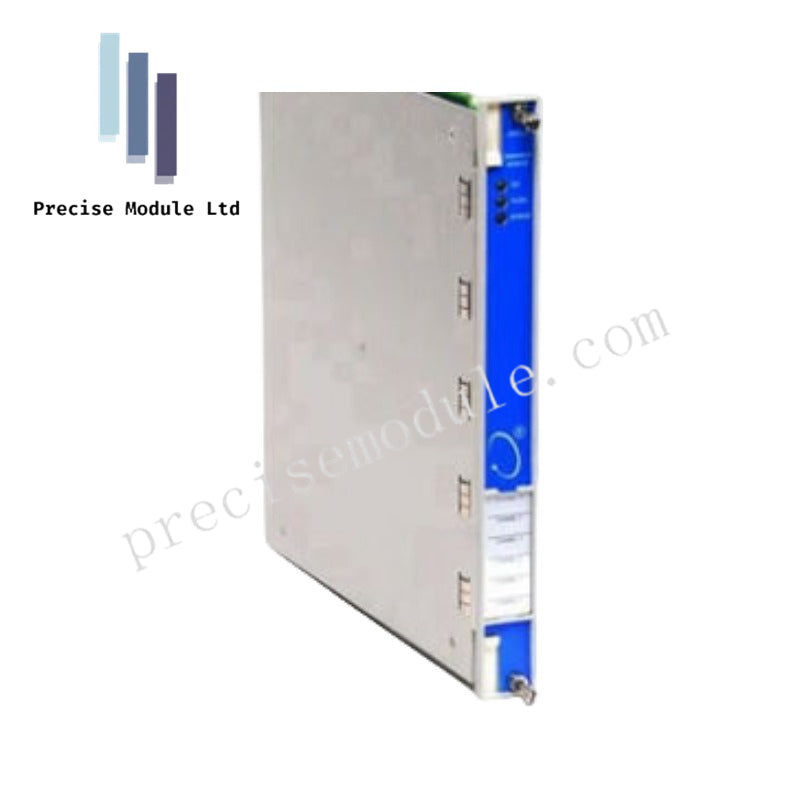

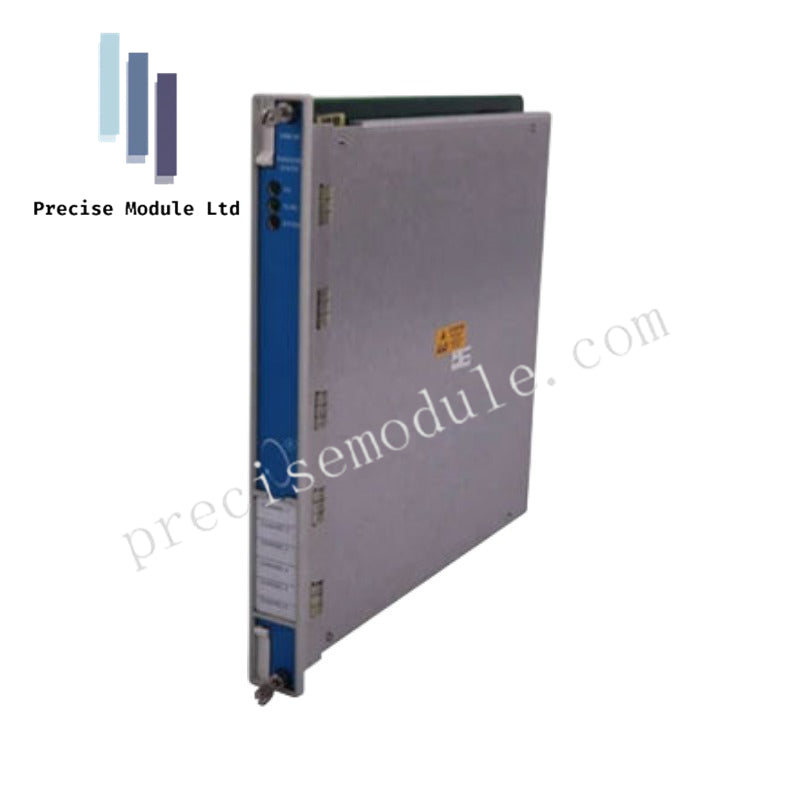

The Bently Nevada 3500/34, also cataloged as the 3500/34 4-Channel Relay Module, operates as a dedicated hardware component for continuous machinery protection and relay output execution within the 3500 Machinery Protection System platform.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Operating within the framework of API 670 compliant machinery protection architecture, this 4-channel module interfaces directly with rack monitor channels to process alarm conditions and drive external trip circuits. The internal circuitry evaluates alert and danger statuses derived from individual monitor modules across the rack. Signal integrity is maintained through deterministic backplane communication, guaranteeing reliable relay actuation while suppressing electrical noise and cross-talk.

Frequently Asked Questions

Q: Can the 3500/34 module be integrated into any 3500 instrument rack slot?

A: No, relay modules must be positioned in designated optional slots as defined by the system architecture, operating alongside required components such as the 3500/05 rack, 3500/15 power supplies, and the 3500/22M TDI module.

Q: How are the relay output channels configured for alarm management?

A: Configuration is managed using the 3500 System Configuration Software, permitting operators to map specific monitor channel variables and voting logic directly to the relay outputs.

Field Installation Guidelines

Physical Placement: Secure the module into its assigned rack location in accordance with system layout constraints and backplane connection guidelines.

Wiring and Grounding: Connect external field wiring to the terminal blocks while observing standard shielding and grounding protocols to mitigate electromagnetic interference.

Verification: Inspect operational parameters and verify environmental temperature limits prior to powering on the system.
