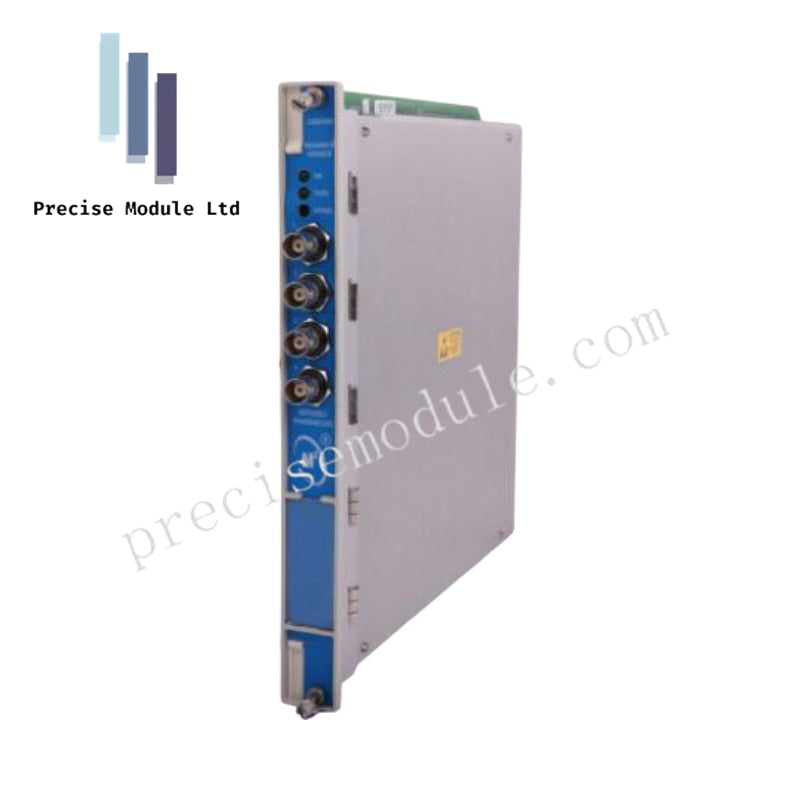

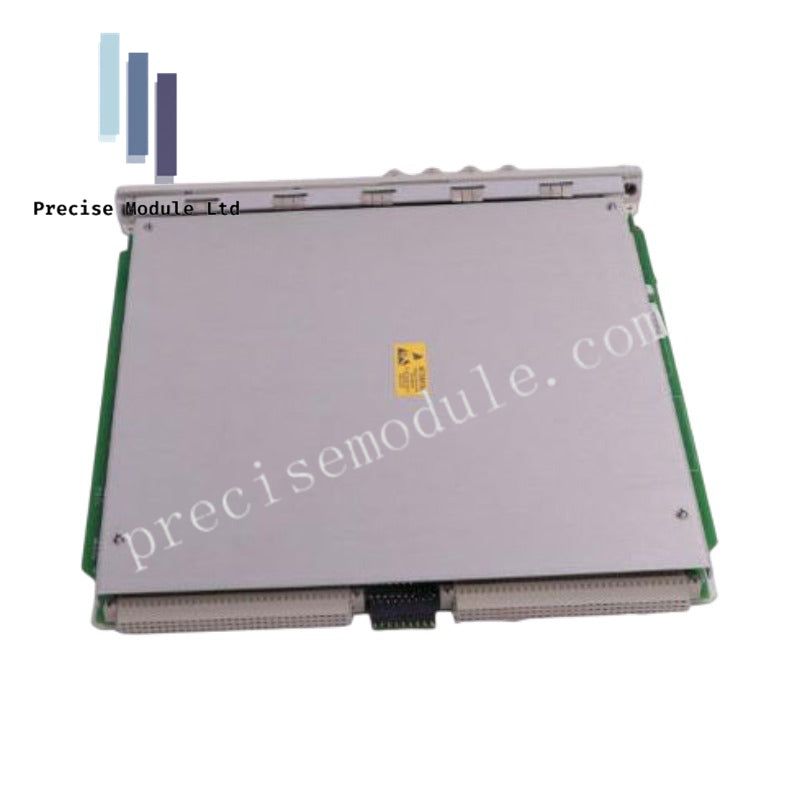

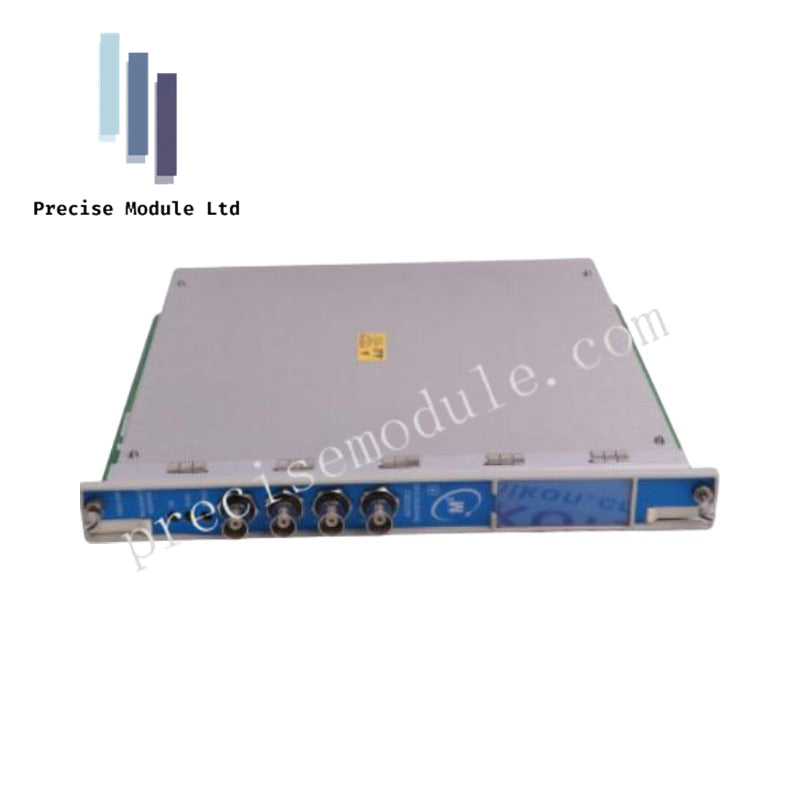

Bently Nevada 3500/40 125680-01 Proximitor Monitors

Bently Nevada 3500/40 125680-01 Proximitor Monitors

The Bently Nevada 3500/40, also cataloged as the 125680-01 Proximitor I/O Module, operates as a dedicated hardware component for signal routing and proximity transducer termination within the 3500 Machinery Protection System platform.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Operating within the framework of machinery protection architecture, this rear I/O module interfaces directly with proximity transducers to route raw vibration and position signals to the associated front monitor module. The internal circuitry manages eddy-current probe scaling and maintains strict gap voltage validation targets across all four input channels. Signal integrity is preserved through robust shielding and backplane routing, suppressing electrical cross-talk and supporting precise evaluation of radial vibration, thrust position, and rotor dynamics.

Frequently Asked Questions

Q: Can the 125680-01 I/O module be replaced without powering down the entire 3500 rack?

A: Yes, rear I/O modules support hot-insertion and removal when executed in coordination with front monitor slot protocols, provided proper safety measures for live industrial maintenance are followed.

Q: How are transducer signals terminated and protected against noise interference?

A: Termination is handled directly via dedicated terminal blocks on the module, utilizing standard shielding practices to ground incoming signal cables and prevent electromagnetic interference.

Field Installation Guidelines

Physical Placement: Mount the module into the designated rear slot directly aligned with its corresponding 3500/40M front monitor module within the rack frame.

Wiring and Grounding: Terminate all proximity transducer cables securely to the module's connectors while ensuring shield drain wires are properly grounded to mitigate noise.

Verification: Check environmental operating limits and confirm secure mechanical latching prior to powering the instrument rack.
