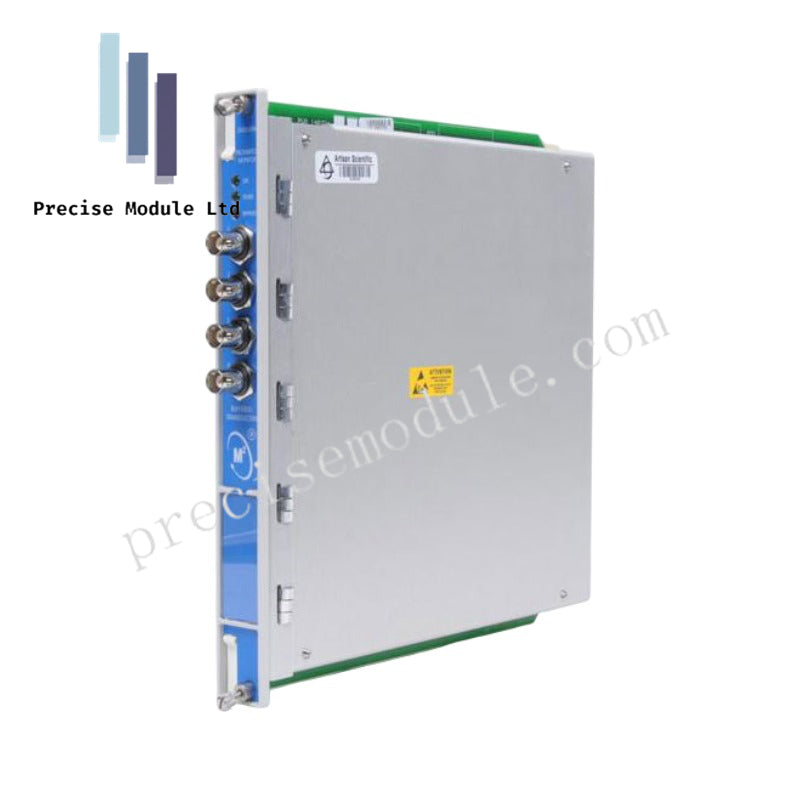

Bently Nevada 3500/40 3500/40M Proximitor Monitor

Bently Nevada 3500/40  Proximitor Monitor

The Bently Nevada 3500/40, also cataloged as the 3500/40M Proximitor Monitor, operates as a dedicated hardware component for radial vibration, thrust position, and rotor dynamics acquisition within the 3500 Machinery Protection System platform.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Operating within the framework of machinery protection architecture, this four-channel monitor accepts input signals from proximity transducers to validate gap voltage targets and evaluate rotor dynamics parameters. The internal circuitry processes eddy-current probe scaling, generating static values such as radial vibration, thrust position, eccentricity, differential expansion, and REBAM. Signal integrity is maintained through rigorous backplane communication protocols, ensuring cross-talk suppression and precise comparison against user-programmable alert and danger setpoints.

Frequently Asked Questions

Q: Can the 3500/40M monitor handle live insertions without shutting down the rack?

A: Yes, the module supports hot-insertion and removal procedures when installed in designated front slots alongside its corresponding I/O module, provided standard safety rules for live maintenance are adhered to.

Q: How are alert and danger setpoints assigned to individual channels?

A: Configuration is executed via the 3500 Rack Configuration Software, enabling operators to map alert thresholds to active static values and danger setpoints to selected variables.

Field Installation Guidelines

Physical Placement: Install the monitor module into any available front slot of the 3500 instrument rack, matching it with its proper Proximitor I/O module at the rear.

Wiring and Grounding: Route proximity transducer signal cables through properly shielded conduits and ground signal shields in accordance with standard industrial instrumentation practices.

Verification: Check transducer power supply output at -24 VDC and validate gap voltage targets prior to initiating full machinery operation.
