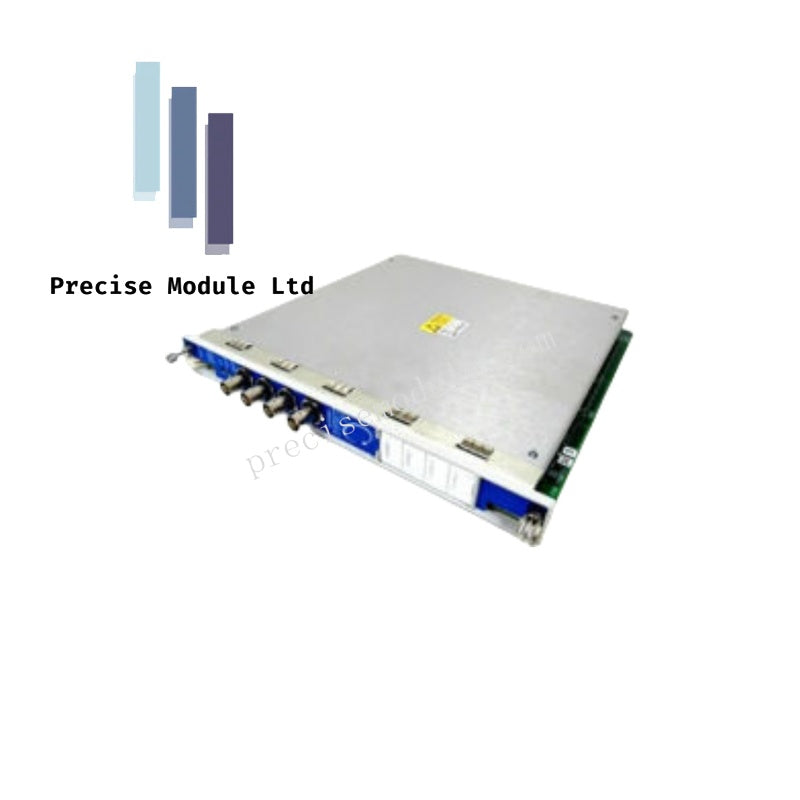

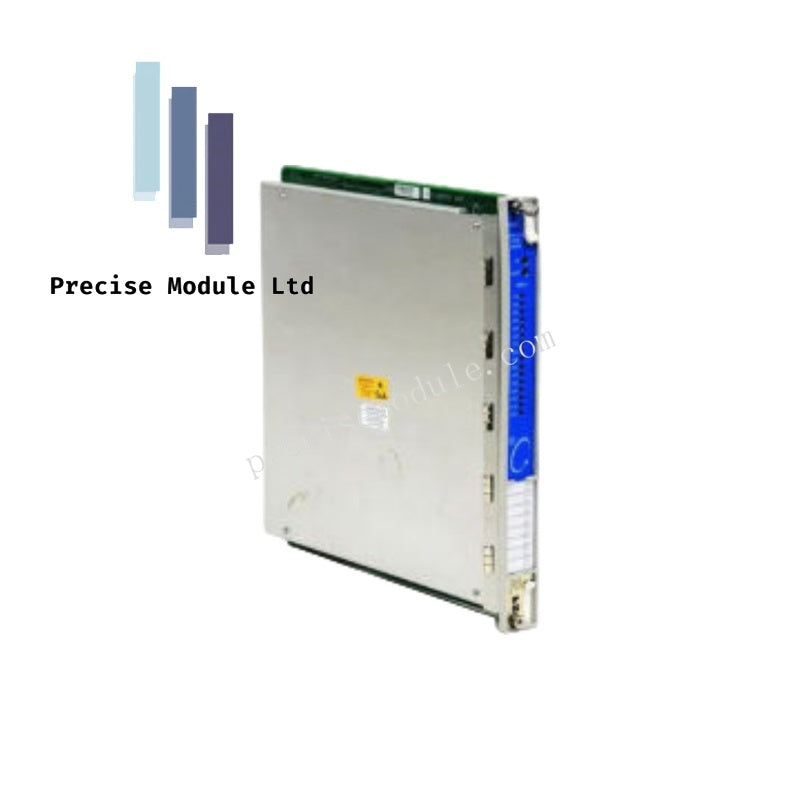

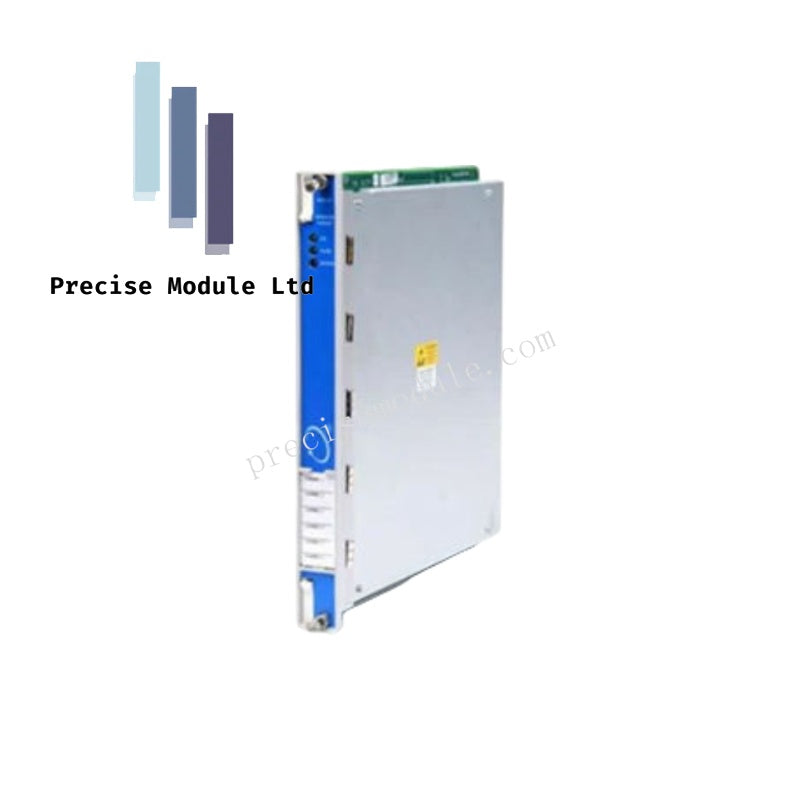

The Bently Nevada 3500/42 125672-02, also cataloged as the 3500/42M Proximitor/Seismic Monitor, operates as a dedicated hardware component for multi-channel machinery protection and signal conditioning within 3500 Rack systems.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3500/42 module provides high-precision signal processing for rotor dynamics by conditioning inputs from up to four proximity or seismic transducers. The internal 1X and 2X vector filter utilizes a Constant Q architecture with a stopband rejection of -57.7 dB, ensuring high-fidelity extraction of vibration vectors. During operation, gap voltage validation is performed to maintain transducer linearity, while the 0.09 Hz gap filter stabilizes static position inputs. The module supports robust fail-safe state execution by comparing conditioned signals against user-configured alarm setpoints, providing integrated protection for fluid-film bearing machines.

Frequently Asked Questions

Q: Does the 3500/42 support input from multiple transducer types simultaneously?A: Yes. The module is a four-channel device that can be configured via the 3500 Rack Configuration Software to accept signals from both proximity and seismic transducers, depending on the specific monitoring application (e.g., radial vibration, thrust position, or acceleration).

Q: What is the significance of the -57.7 dB stopband rejection in the vector filter?A: Noise Suppression. This high level of rejection ensures that non-target frequency components are effectively attenuated, providing a clean vector output for accurate analysis of machine vibration state, particularly in complex speed-varying environments.

Field Installation Guidelines

• Backplane Interface: Ensure the module is seated fully within the rack slot. The connector pins must be clean and free of oxidation to prevent high-impedance paths that could corrupt low-level transducer signals.
• Signal Shielding: All proximity and seismic transducer cables must utilize shielded twisted-pair wiring. Terminate shields at the I/O module ground to ensure effective common-mode noise rejection.
• Configuration: Utilize the 3500 Rack Configuration Software to set parameters for each channel. Verify that scaling, alarm setpoints, and filter settings match the mechanical specifications of the monitored asset before placing the module in service.
• Grounding: Maintain the 3500 rack chassis at a stable plant instrument ground potential. Avoid ground loops by ensuring that signal returns from external transducers do not create multi-point grounding paths.
