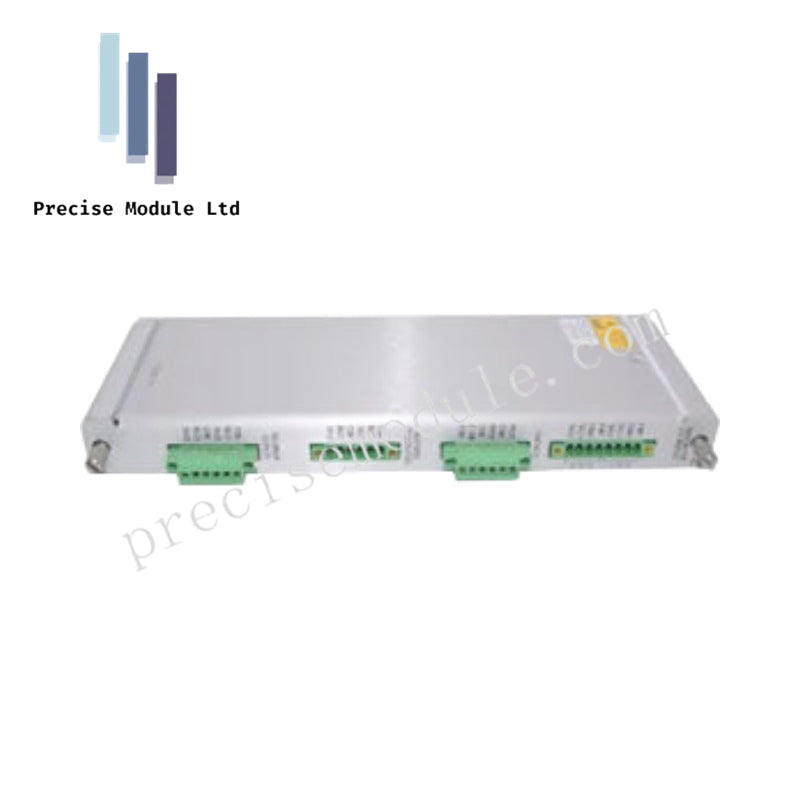

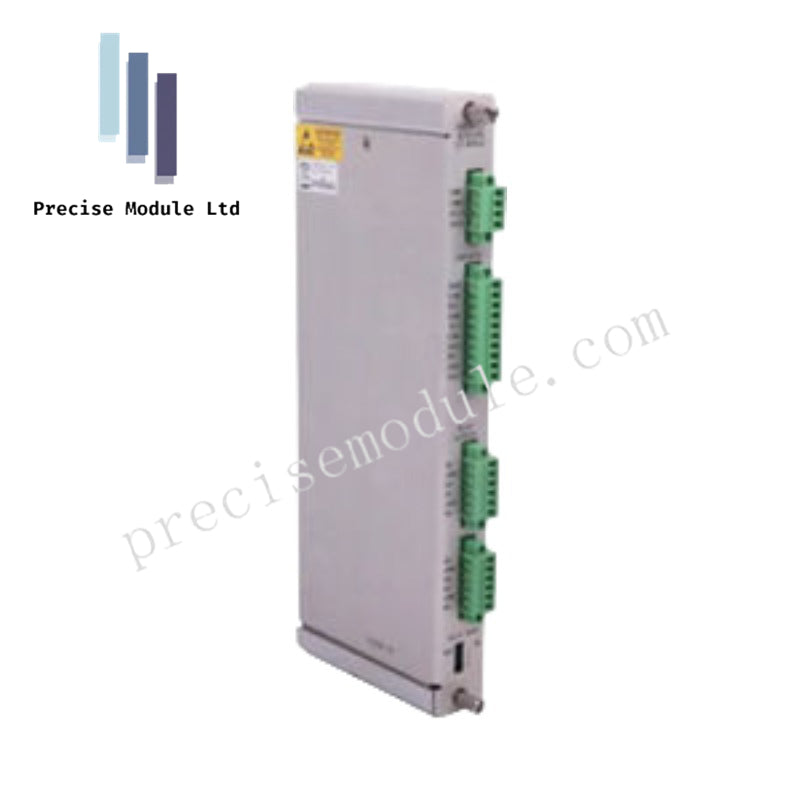

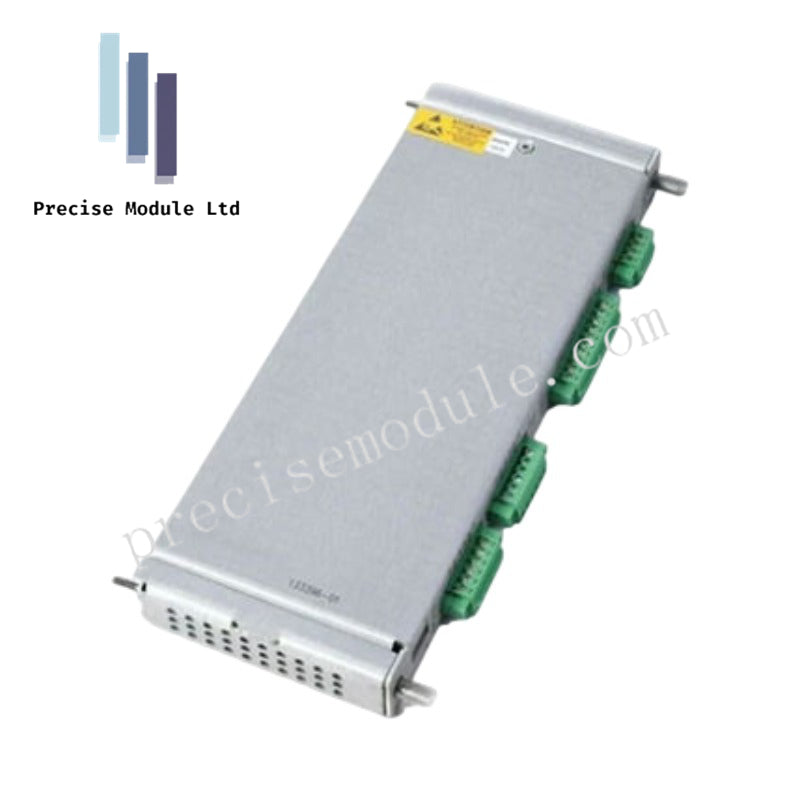

Bently Nevada 3500/42 125972-02 Proximitor Seismic Monitor Modules

Bently Nevada 3500/42 125972-02 Proximitor Seismic Monitor Modules

The Bently Nevada 3500/42, specifically cataloged as part number 125972-02 (representing the 3500/42M Proximitor Seismic Monitor platform), operates as a dedicated four-channel monitoring solution designed to accept inputs from proximity, velocity, and acceleration transducers within the 3500 Machinery Protection System.

Hardware Specifications

Rotor Dynamics and Signal Conditioning

Operating within the framework of machinery protection architecture, this four-channel monitor conditions incoming signals from proximity and seismic transducers to evaluate critical operational parameters. The system configuration is executed via the 3500 Rack Configuration Software, enabling operators to tailor measurements such as radial vibration, acceleration, velocity, shaft absolute, and thrust position. Signal integrity is maintained through dedicated processing channels and 12-bit A/D conversion, ensuring precise comparison against user-programmable alert and danger alarm setpoints.

Frequently Asked Questions

Q: Can the 3500/42 125972-02 module handle live insertions without shutting down the rack?

A: Yes, the module supports hot-insertion and removal procedures when installed in designated front slots alongside its corresponding I/O module, provided standard safety rules for live maintenance are adhered to.

Q: How are alarm setpoints assigned to individual channels?

A: Configuration is completed via the 3500 Rack Configuration Software, allowing operators to map alert and danger thresholds directly to active static measurement values.

Field Installation Guidelines

Physical Placement: Install the monitor module into any available front slot of the 3500 instrument rack, matching it with its proper Proximitor Seismic I/O module at the rear.

Wiring and Grounding: Route transducer signal cables through properly shielded conduits and ground signal shields in accordance with standard industrial instrumentation practices.

Verification: Check power supply outputs and transducer connections prior to initiating full machinery operation and protection loops.
