Bently Nevada 3500/42 135489-02 I/O Modules

Bently Nevada 3500/42 135489-02 I/O Modules

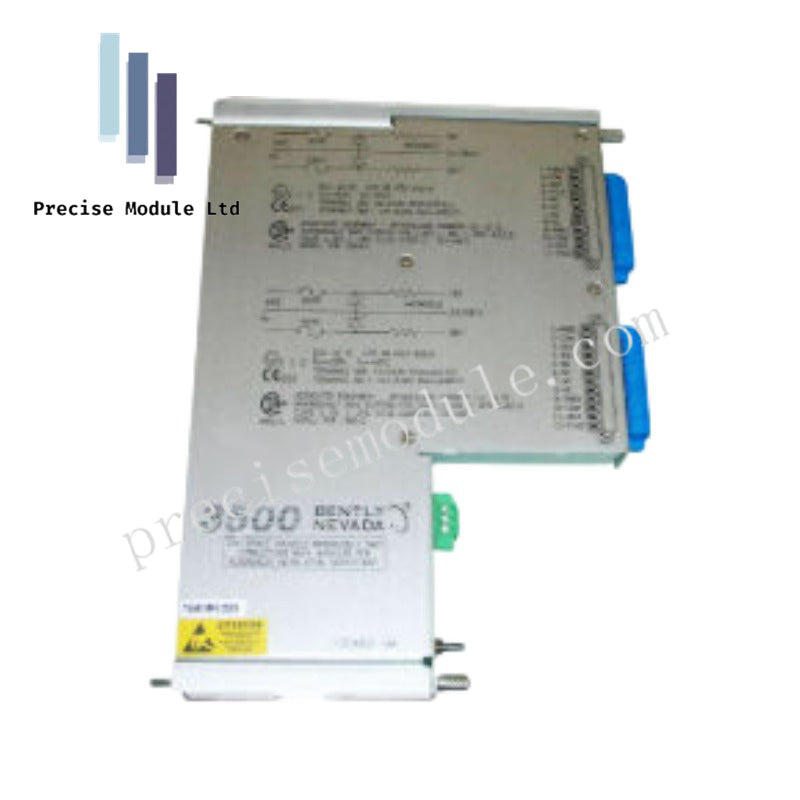

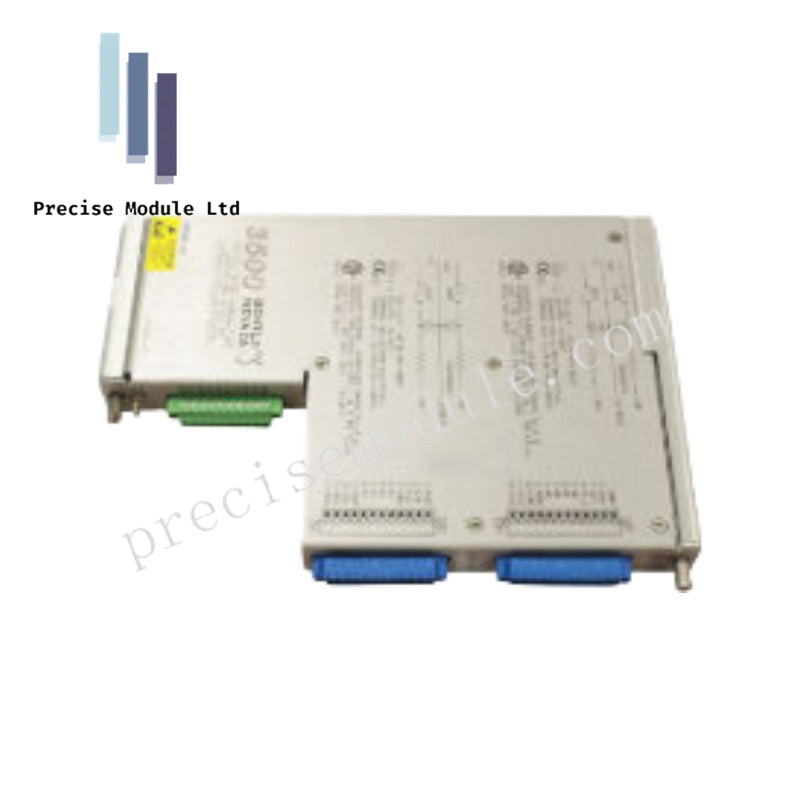

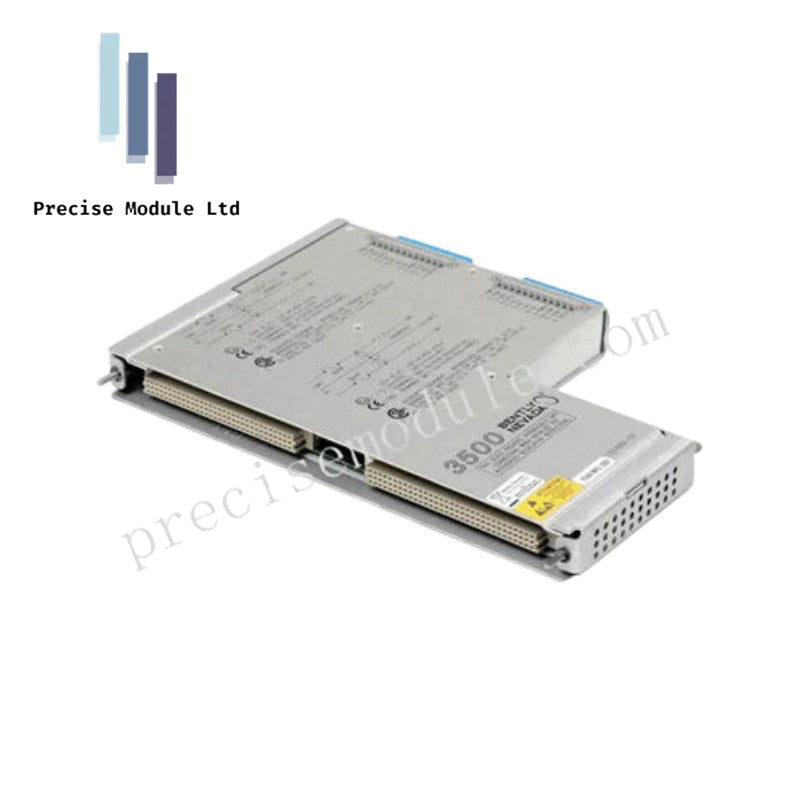

The Bently Nevada 3500/42, specifically cataloged as part number 135489-02, operates as a dedicated rear I/O Module featuring internal barriers and internal terminations designed for the 3500/42M Proximitor Seismic Monitor platform within the 3500 Machinery Protection System.

Suffix Breakdown & Model Matrix

Hardware Specifications

Signal Conditioning and Barrier Integration

Operating within the framework of machinery protection architecture, this I/O module incorporates internal safety barriers and internal terminations to securely process signals from mixed transducer types. The channel architecture specifically accommodates two proximity or accelerometer inputs alongside two velomitor inputs, providing flexible signal routing for complex turbomachinery trains. Signal integrity is preserved through robust channel isolation and precision terminal design, ensuring reliable data delivery to the front-slot monitor module.

Frequently Asked Questions

Q: Can the 135489-01 or 135489-02 I/O module be replaced without disconnecting rear field wiring?

A: Yes, 3500 series I/O modules are engineered to allow rear connectors and field wiring blocks to remain intact during module extraction, minimizing maintenance downtime.

Q: What specific sensor configuration does the 135489-02 I/O module support?

A: This module variant features internal barriers and internal terminations supporting two proximity/accelerometer channels and two velomitor channels.

Field Installation Guidelines

Physical Placement: Install the I/O module into the rear slot directly aligned with the corresponding front-slot 3500/42M monitor module within the 3500 instrument rack.

Wiring and Grounding: Terminate field signal cables securely to the internal barrier terminal blocks, ensuring proper shielding and grounding to prevent electromagnetic interference.

Verification: Confirm power supply voltage at $24\text{ VDC}$ and check input signal scaling prior to energizing the protection loops.
