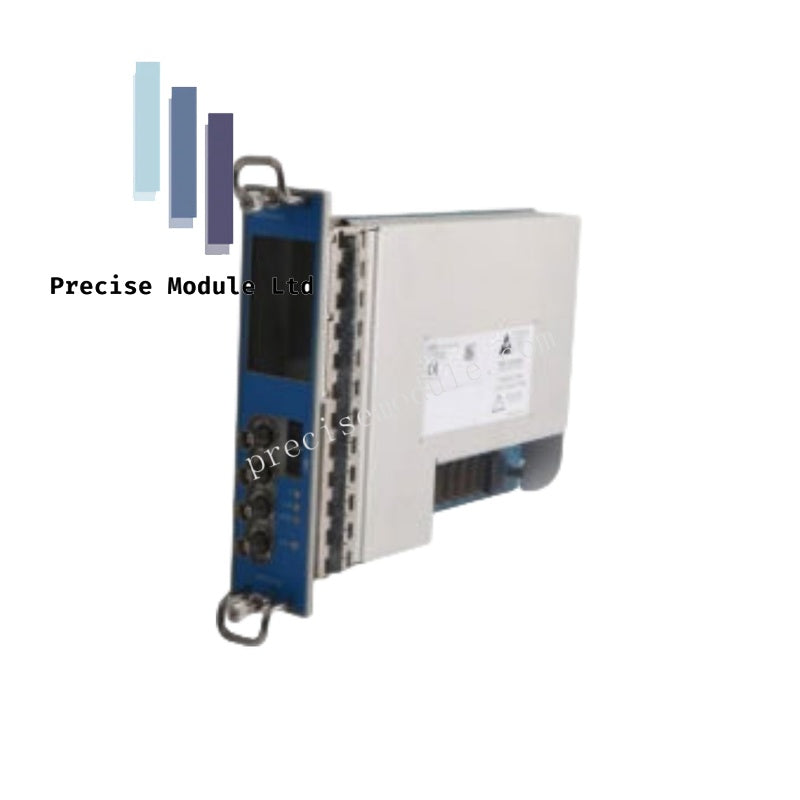

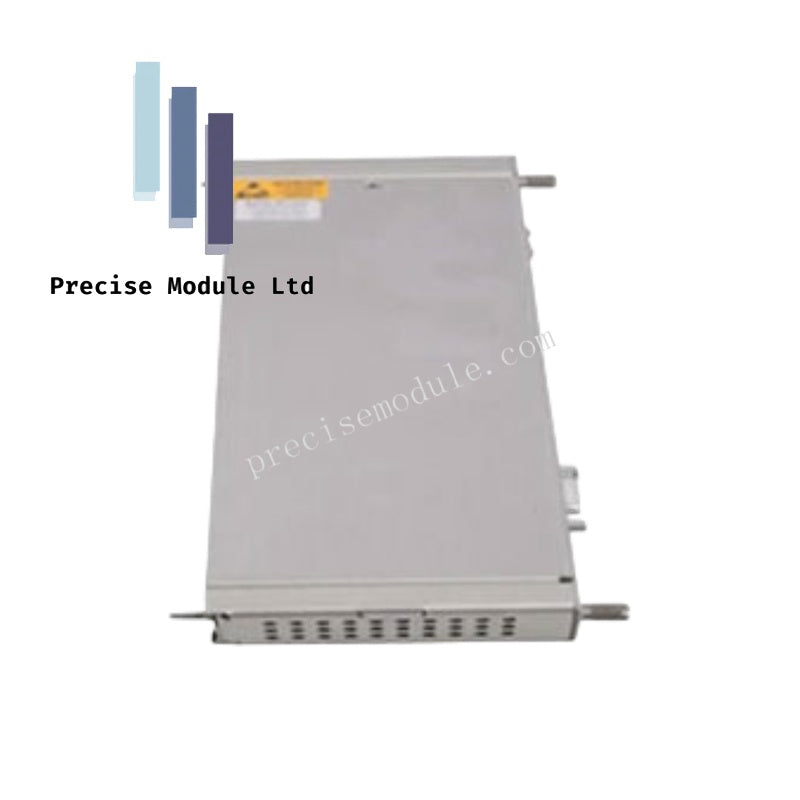

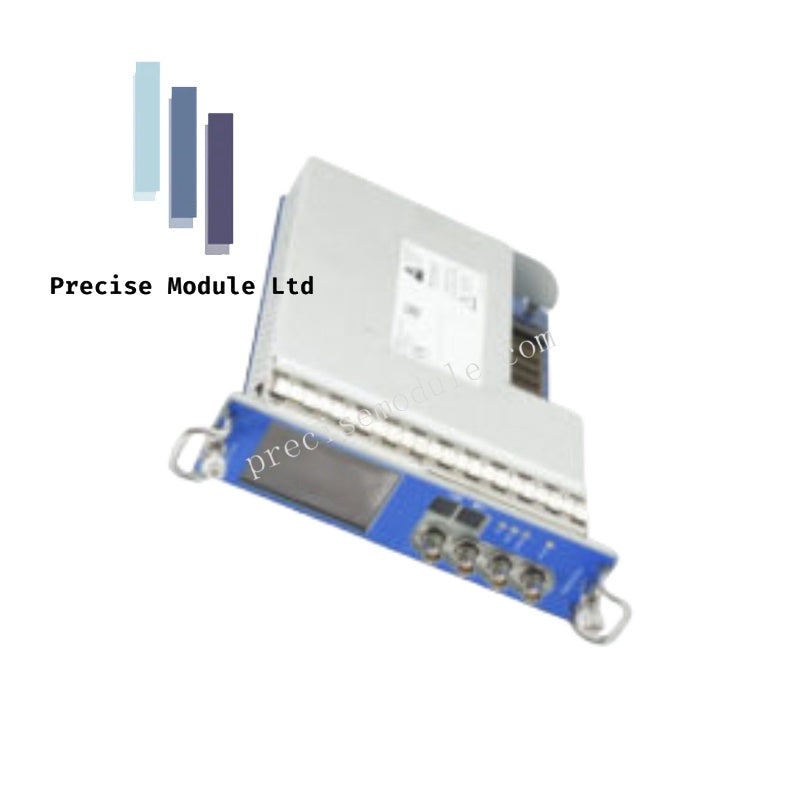

Bently Nevada 3500/42E 285691-01 Enhanced Vibration Monitor Module

Configured for high-accuracy machinery monitoring within 3500 Machinery Protection System networks, the Bently Nevada 3500/42E 285691-01 (3500/42E Enhanced Vibration Monitor Module) provides direct physical/electrical execution. The module conditions raw transducer signals from proximity and seismic sensors to deliver discrete vibration, position, and acceleration metrics while executing internal comparisons against user-defined alarm thresholds.

Hardware Specifications

Proximity Probe Integration and Gap Voltage Validation

The 3500/42E module utilizes strict electrical interfacing for eddy-current probe scaling to preserve rotor dynamics measurement integrity. During commissioning and steady-state operations, engineers must execute gap voltage validation, targeting a nominal -10 VDC baseline for standard proximity sensor loops to position the transducer within its linear calibration range. Internal digital filtering suppresses high-frequency cross-talk suppression between adjacent transducer channels, preventing phase errors and false alarm trippings caused by mutual inductance inside tightly packed conduit runs.

Frequently Asked Questions

Q: Does the 3500/42E module support hot-swap insertion during active rack operations?

A: Yes. The module features designated grounding strips on its backplane connector that engage before the power pins, enabling safe hot-swap replacement without interrupting the power distribution or communication loops of adjacent operational rack components.

Q: How are channel configurations altered for varying measurement types such as thrust or radial vibration?

A: All hardware adaptations are executed via software configurations using the 3500 Rack Configuration Software. The module modifies its internal conditioning circuits to process differing electrical inputs without physical jumper modifications on the circuit card assembly.

Field Installation Guidelines

• Shielding Termination: Strip field cables only to the minimum required length. Terminate sensor cable shields exclusively at the designated 3500 rack chassis ground terminals. Do not ground the shield at the sensor junction box to eliminate parasitic ground loop currents.

• Wiring Separation: Route low-level transducer instrumentation lines via separate, dedicated metal conduits away from high-voltage motor control circuits and variable frequency drives to prevent electromagnetic noise coupling.

• Mechanical Seating: Insert the module firmly into the rack slot until the top and bottom chassis levers click into place. Tighten the integration screws to ensure continuous chassis-to-module electrical continuity.
