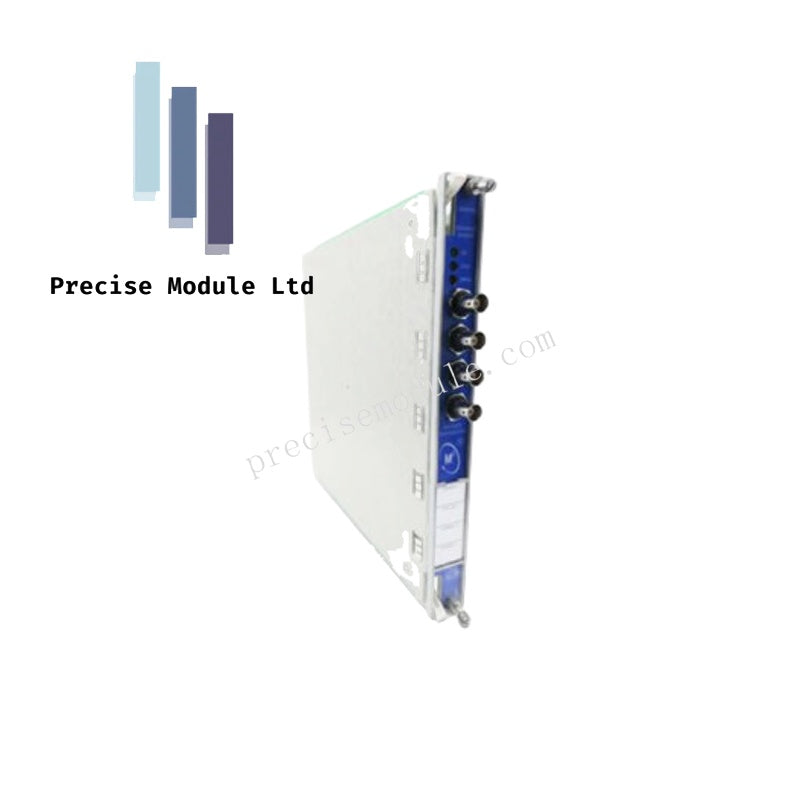

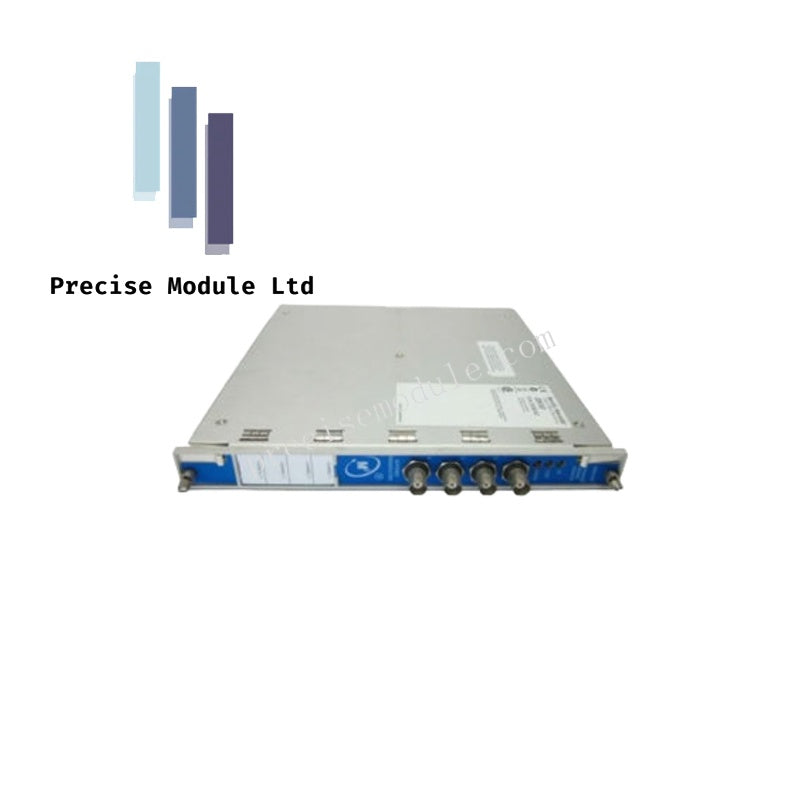

The Bently Nevada 3500/45 140072-04, also cataloged as the 3500/45 Position Monitor Module, operates as a dedicated hardware component for four-channel displacement signal monitoring and alarm processing within the Bently Nevada 3500 Monitoring System.

Suffix Breakdown & Model Matrix

No functional difference between 140072-02 and 140072-04 is defined in the supplied technical documentation.

Hardware Specifications

Eddy-Current Position Scaling and Rotor Mechanical Monitoring

The Bently Nevada 3500/45 140072-04 Position Monitor Module conditions input signals from displacement transducers and compares processed measurement values against configured alarm thresholds. The module provides four monitoring channels for machinery position measurement applications.

Supported measurement functions include axial thrust position, differential expansion, standard single ramp differential expansion, non-standard single ramp differential expansion, dual ramp differential expansion, complementary differential expansion, case expansion, and valve position.

Each channel processes input signals into measured variables according to the selected transducer configuration. Alert setpoints can be assigned to active measured variables, while Danger setpoints can be configured for selected measurement parameters.

The module operates within the 3500 monitoring architecture to process mechanical position data and provide alarm relay interfaces through configured protection logic. Correct transducer scaling and input configuration are required for accurate displacement measurement.

Frequently Asked Questions

Q: How many measurement channels are available on the 3500/45 140072-04?
A: The Position Monitor Module provides four independent monitoring channels.

Q: Which transducer types can be connected to the 3500/45 Position Monitor system?
A: Supported transducer types include proximity transducers, Rotary Position Transducers (RPTs), DC LVDTs, AC LVDTs, and rotary potentiometers.

Q: How are alarm thresholds configured for monitored position values?
A: Alert and Danger setpoints are configured through the 3500 Rack Configuration Software based on active measured variables.

Field Installation Guidelines

Install the 140072-04 module into the designated Bently Nevada 3500 rack slot and verify module recognition before configuring measurement channels.

Use shielded signal wiring for position transducer connections and route measurement cables separately from power and high-current circuits. Connect shields according to the site grounding standard.

Confirm the connected sensor type, channel function, and scaling parameters through the 3500 Rack Configuration Software before enabling alarms.

Verify field wiring integrity, terminal connections, and sensor installation conditions during commissioning to ensure correct position measurement operation.
