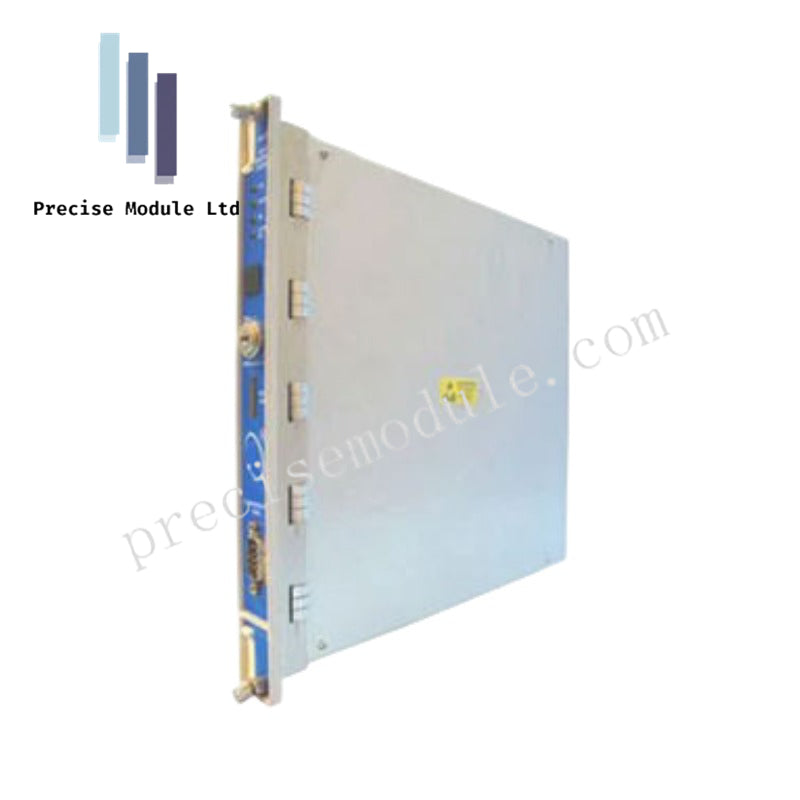

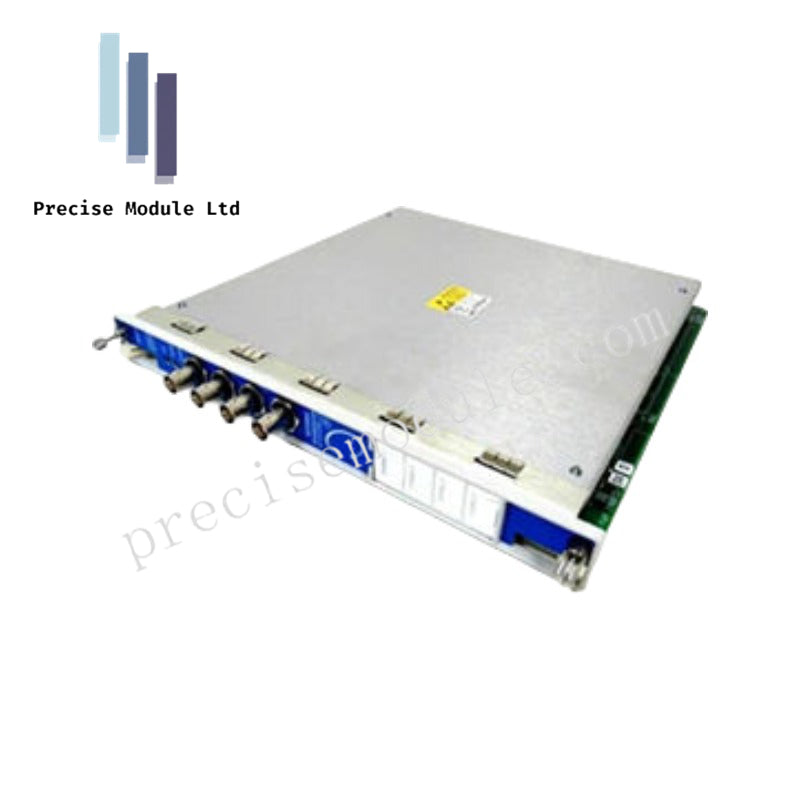

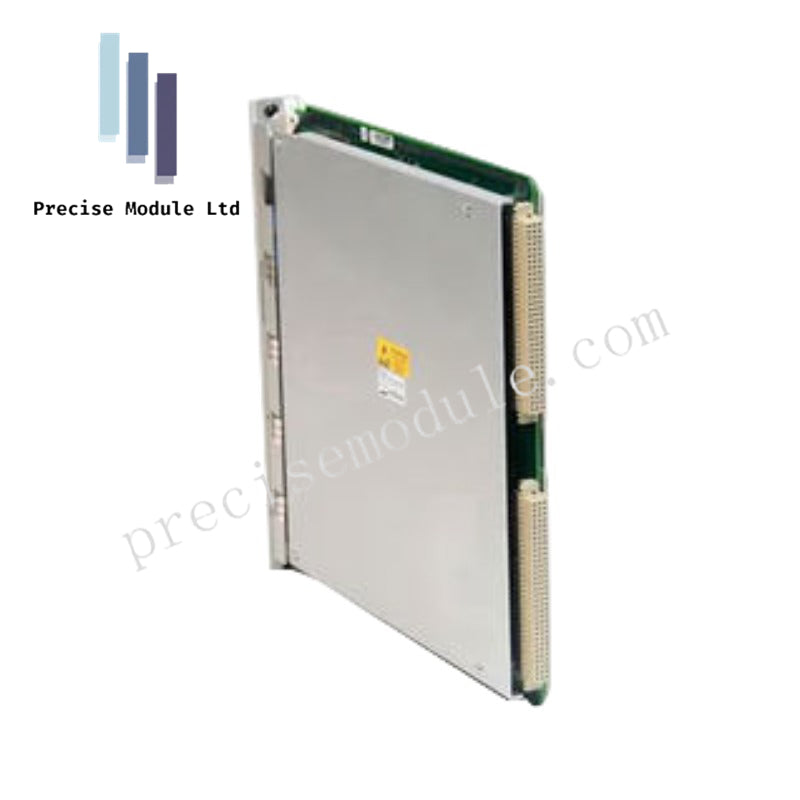

Bently Nevada 3500/45 140072-04 Position Monitor Module

Bently Nevada 3500/45 140072-04 Position Monitor Module

The Bently Nevada 3500/45 140072-04, also cataloged as the 3500/45 Position Monitor Module, operates as a dedicated hardware component for multi-channel position signal acquisition and mechanical protection within machinery protection and TSI networks.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

Configured for position monitoring across rotating and reciprocating machinery, the Bently Nevada 3500/45 140072-04 processes electrical inputs derived from proximity transducers, Rotary Position Transducers, DC and AC Linear Variable Differential Transformers, and rotary potentiometers. The internal circuitry enforces precise eddy-current probe scaling and analog conditioning to convert sensor variations into accurate displacement metrics. During operation, gap voltage validation targets nominal baselines to ensure proper probe positioning relative to the monitored surface. Cross-talk suppression filters are embedded within the multi-channel architecture to eliminate inter-channel electromagnetic interference, preserving signal integrity across high-precision industrial deployments.

Frequently Asked Questions

Q: What transducer types are supported by the 3500/45 position monitor architecture?

A: The 4-channel instrument accepts inputs from proximity transducers, Rotary Position Transducers, DC LVDTs, AC LVDTs, and rotary potentiometers.

Q: How are signal inputs handled for alarm evaluation?

A: The monitor conditions the raw inputs and continuously compares the conditioned signals against user-programmable alarm thresholds to drive protective actions.

Field Installation Guidelines

Mounting and Grounding: Install the module exclusively within designated slots of a standard 3500 rack enclosure. Ensure the rear I/O module is firmly secured and torqued to prevent backplane bus misalignment. Connect the earth ground stud directly to the plant grounding grid using low-impedance copper braided wire to mitigate high-frequency noise interference.

Signal Wiring: Route all transducer signal cables separately from high-voltage power conduits and variable frequency drive outputs. Utilize shielded twisted-pair cabling, terminating the shield strictly at the system rack grounding bar to maintain electromagnetic compatibility.
