Bently Nevada 3500/53 133388-01 Overspeed Detection Module

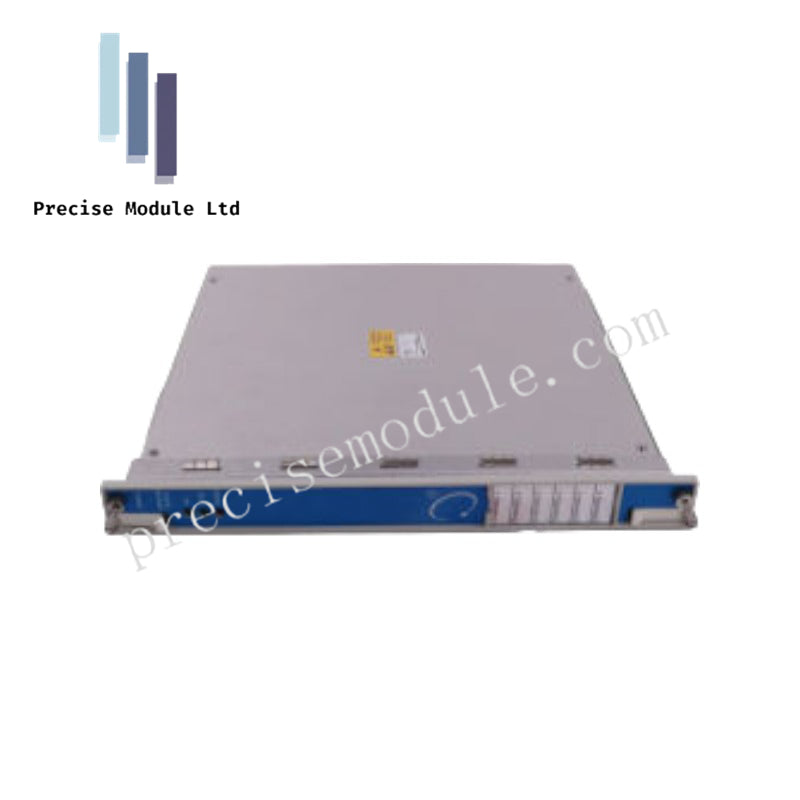

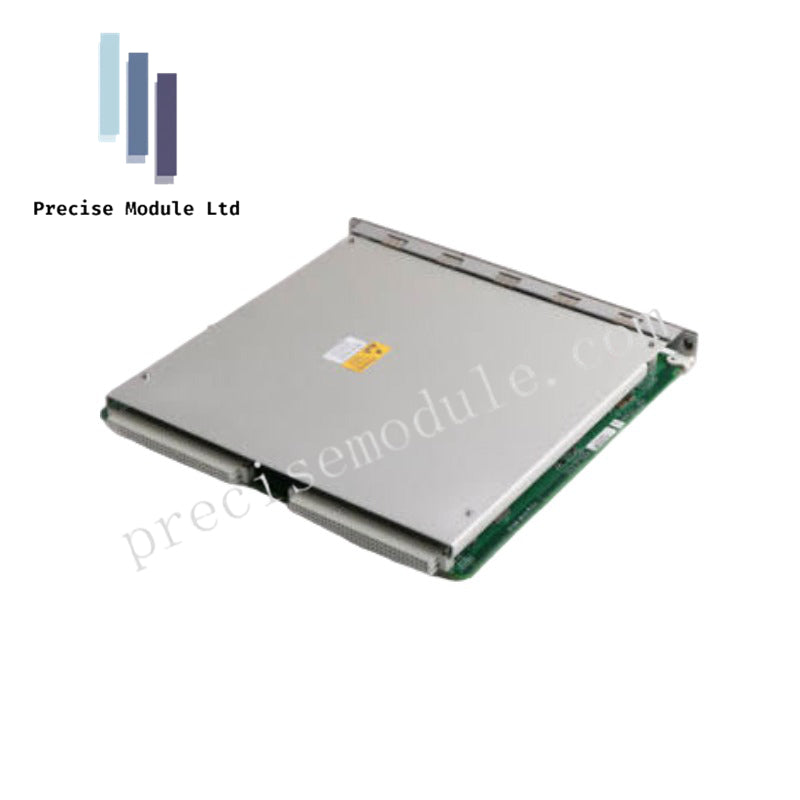

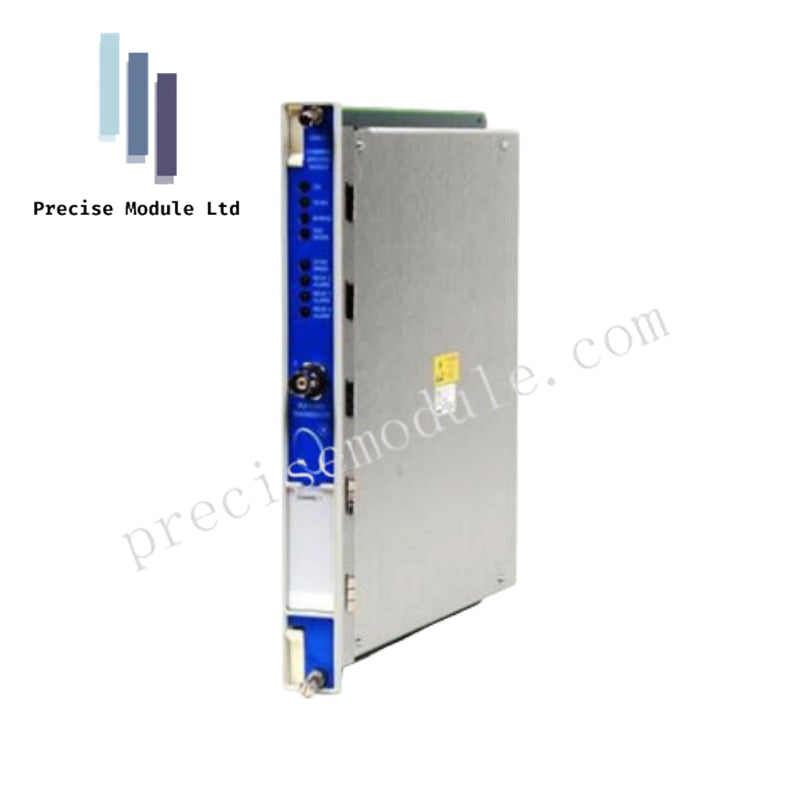

The Bently Nevada 3500/53 133388-01, also cataloged as the 3500/53 Overspeed Detection Module, operates as a dedicated hardware component for high-reliability, fast-response, redundant tachometer and overspeed protection within machinery protection and TSI networks.

Hardware Specifications

Rotor Dynamics and Overspeed Protection Architecture

Engineered to fulfill the requirements of American Petroleum Institute (API) Standards 670 and 612 for overspeed protection, the Bently Nevada 3500/53 133388-01 provides a redundant tachometer architecture designed for critical turbine and compressor safety systems. Individual 3500/53 modules can be integrated to construct a 2-out-of-2 or a recommended 2-out-of-3 voting configuration. Furthermore, this electronic overspeed detection framework requires implementation within a 3500 rack structure equipped with redundant power supplies to ensure uninterrupted operational safety and fault tolerance.

Frequently Asked Questions

Q: What industry standards are targeted by the 3500/53 overspeed detection system?

A: The system is explicitly designed to meet the requirements of American Petroleum Institute (API) Standards 670 and 612 pertaining to overspeed protection.

Q: How are multiple 3500/53 modules combined for voting logic?

A: The modules can be combined to form a 2-out-of-2 or a 2-out-of-3 (recommended) voting system architecture.

Field Installation Guidelines

Mounting and Grounding: Install the module exclusively within designated slots of a standard 3500 rack enclosure configured with redundant power supplies. Ensure the rear I/O module is firmly secured and torqued to prevent backplane bus misalignment. Connect the earth ground stud directly to the plant grounding grid using low-impedance copper braided wire to mitigate high-frequency noise interference.

Signal Wiring: Route all speed and pickup signal cables separately from high-voltage power conduits and variable frequency drive outputs. Utilize shielded twisted-pair cabling, terminating the shield strictly at the system rack grounding bar to maintain electromagnetic compatibility.
