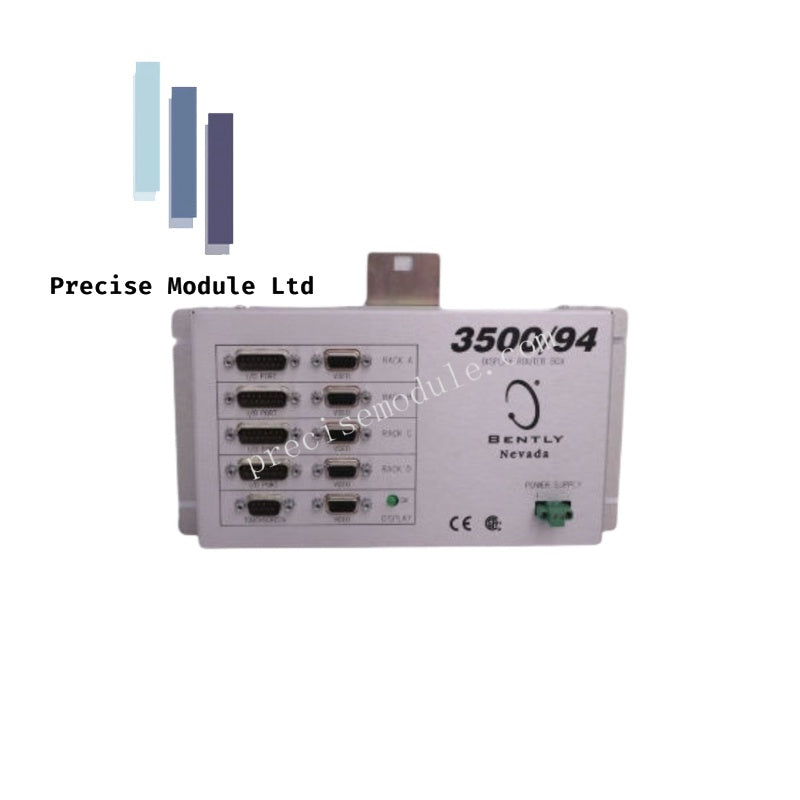

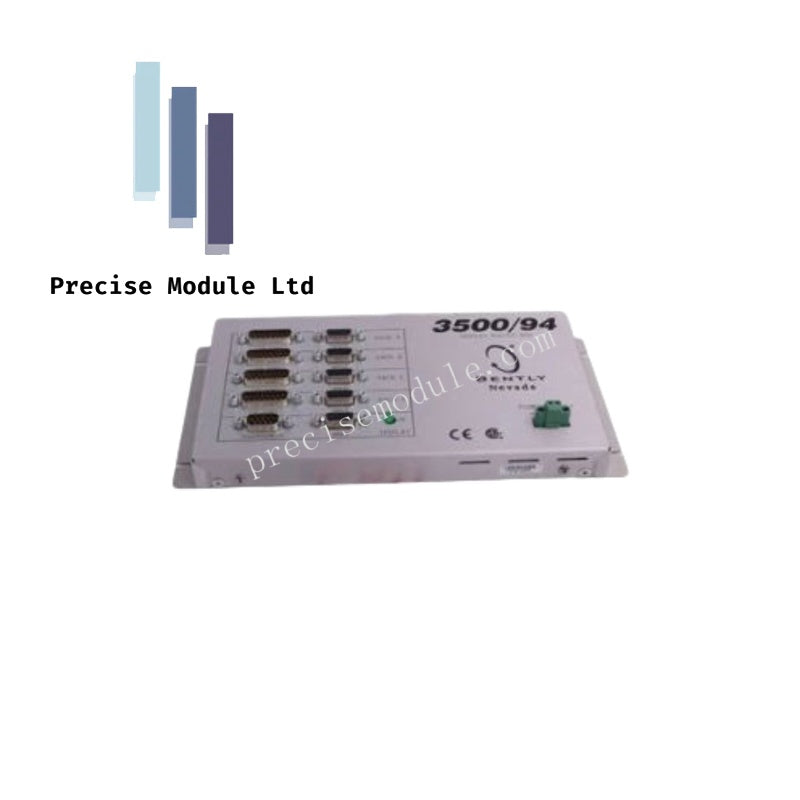

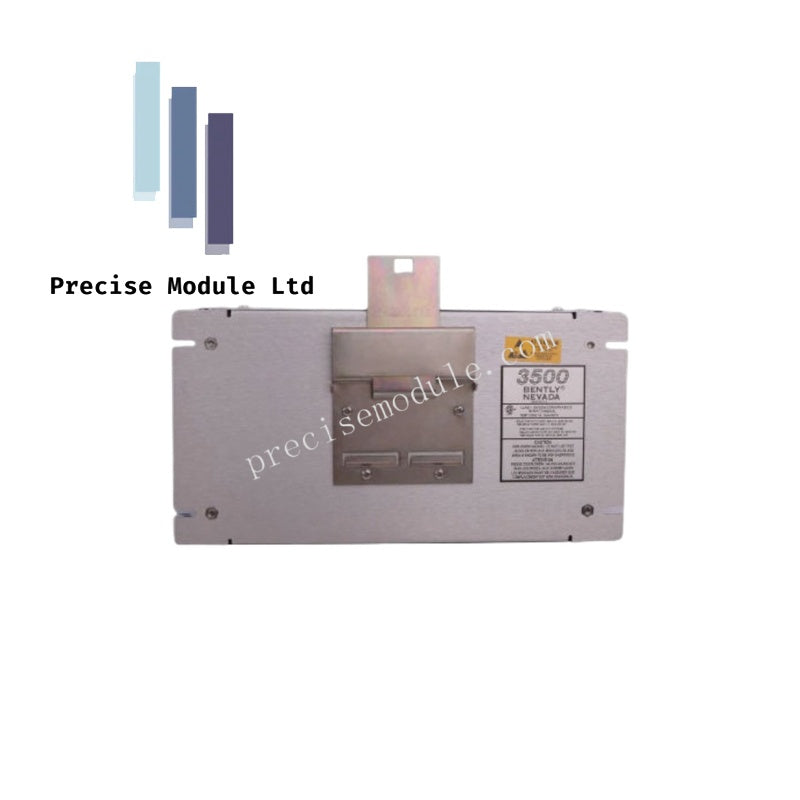

Bently Nevada 3500/94 145988-01 Display Monitor

Bently Nevada 3500/94 145988-01 Display Monitor

The Bently Nevada 3500/94 145988-01, also cataloged as the 3500/94 VGA Display Monitor, operates as a dedicated hardware component for machinery protection system data visualization and operator interface display within the Bently Nevada 3500 system network.

Hardware Specifications

3500 VGA Display Interface and System Data Visualization

The 3500/94 VGA Display Monitor provides a local visualization interface for Bently Nevada 3500 machinery protection system information. The module displays system event lists, alarm event lists, module and channel data, and alarm or OK status information.

The display configuration supports up to nine custom screens through the 3500 Rack Configuration Software. Custom pages can be arranged into machine train groups, with system data assigned to selected display pages.

The 3500/94M system consists of the VGA module, I/O module, and a 10 inch or 15 inch VGA touch screen display. The display connection supports standard cable installation up to 6 m from the 3500 rack or extended installation through a supported KVM extender up to 10 km from the rack.

Frequently Asked Questions

Q: What information can be displayed by the 3500/94 VGA module?
A: The module displays system event lists, alarm event lists, module and channel data, and alarm or OK status information.

Q: How many custom display screens can be configured?
A: The 3500/94M supports configuration of up to nine custom screens through the 3500 Rack Configuration Software.

Q: What is the input power range for the module?
A: The module accepts a 22.5 to 25.5 VDC input range.

Field Installation Guidelines

Install the 3500/94 module in the assigned position within a compatible 3500 rack after confirming rack power isolation. Connect the I/O module, display interface cables, and power wiring according to the approved system wiring documentation.

Maintain separation between display communication cables and high-voltage or high-current wiring paths. Verify RS232 touch controller connections and high-speed network communication wiring before energizing the system.

After installation, configure display pages and machine train group settings using the 3500 Rack Configuration Software. Confirm displayed channel data, alarm status information, and event list operation before placing the interface into service.
