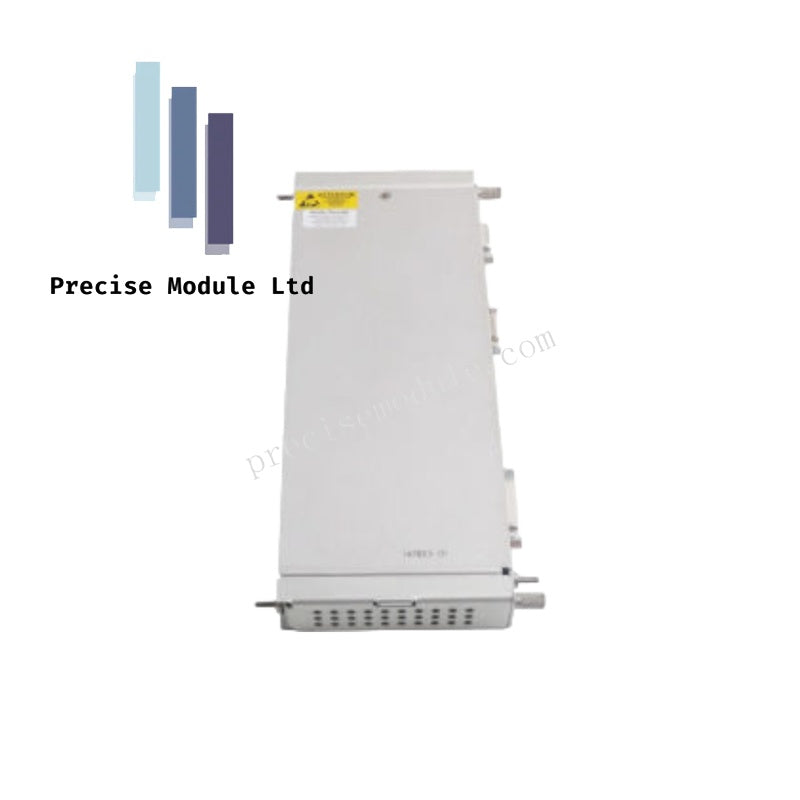

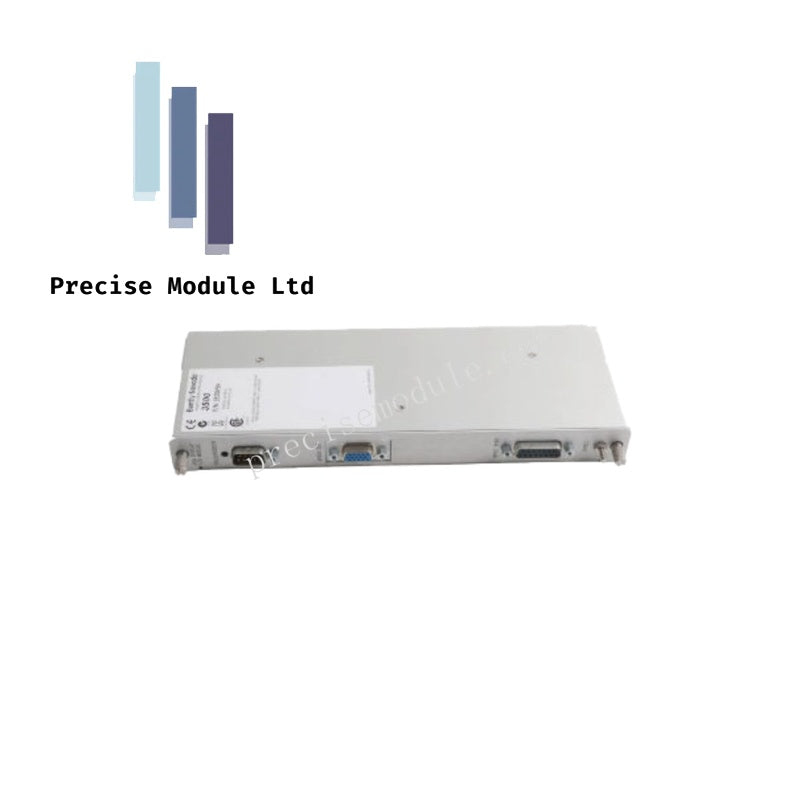

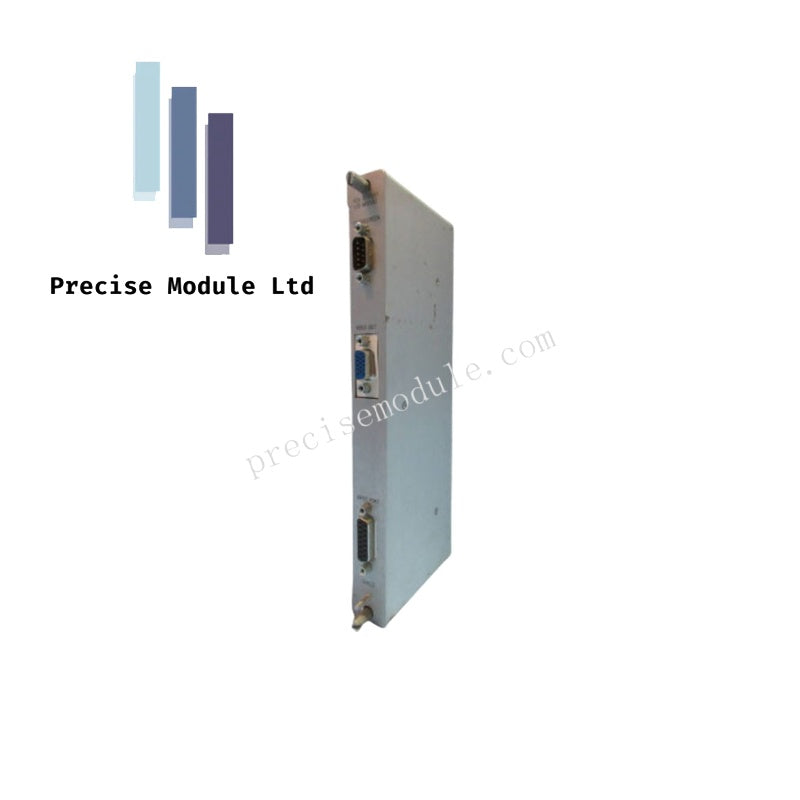

Bently Nevada 3500/94 147663-01 I/O Module

Bently Nevada 3500/94 147663-01 I/O Module

The Bently Nevada 3500/94 147663-01, also cataloged as the 3500/94 I/O Module, operates as a dedicated hardware component for VGA display interface signal handling and machinery protection data transfer within the Bently Nevada 3500 Machinery Protection System.

Hardware Specifications

Rotor Monitoring Display Interface and Signal Communication

The 3500/94 147663-01 I/O Module provides the interface functions required for the Bently Nevada 3500/94M VGA display system. The module transfers display-related data between the 3500 rack system and the external VGA touch screen display assembly.

The I/O module operates as part of the 3500/94M system components, which include the VGA module, I/O module, and a 10 inch or 15 inch VGA touch screen display. The display system provides access to system event lists, alarm event lists, module data, channel data, and alarm or OK status information.

The module supports isolated field interface operation with 500 Vrms isolation and provides power distribution for the display interface assembly.

Frequently Asked Questions

Q: What is the function of the 3500/94 147663-01 module?
A: The module provides I/O interface functions for the 3500/94M VGA display system used with the Bently Nevada 3500 Machinery Protection System.

Q: What power supply is required for the 147663-01 I/O module?
A: The module operates from a +24 VDC supply with a maximum consumption of 4.7 W at 24 V.

Q: Is the 147663-01 module installed independently from the VGA display system?
A: No. The module is a component of the 3500/94M VGA display assembly and operates together with the VGA module and external touch screen display.

Field Installation Guidelines

Install the 3500/94 147663-01 I/O Module in the designated Bently Nevada 3500 rack configuration according to the system hardware arrangement. Verify module seating, rack backplane connection, and supply voltage polarity before startup.

Use shielded communication wiring where required by the installation design. Route interface cables separately from high-current power conductors and switching equipment to reduce electrical noise coupling.

Confirm +24 VDC supply wiring, isolation requirements, and communication connections before enabling the VGA display system. Configure display functions and custom screen parameters through the 3500 Rack Configuration Software after hardware installation.
