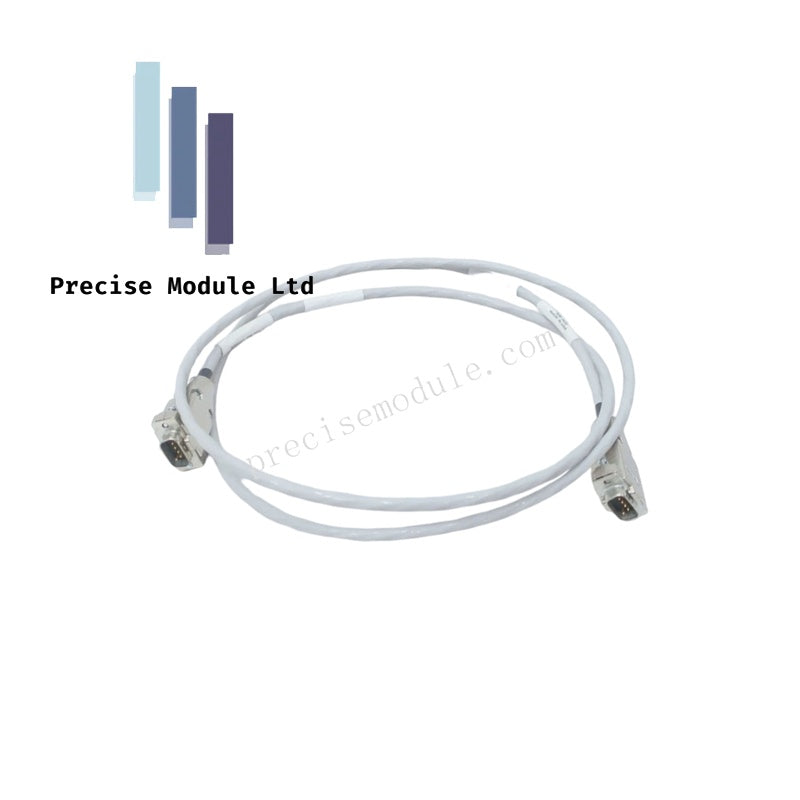

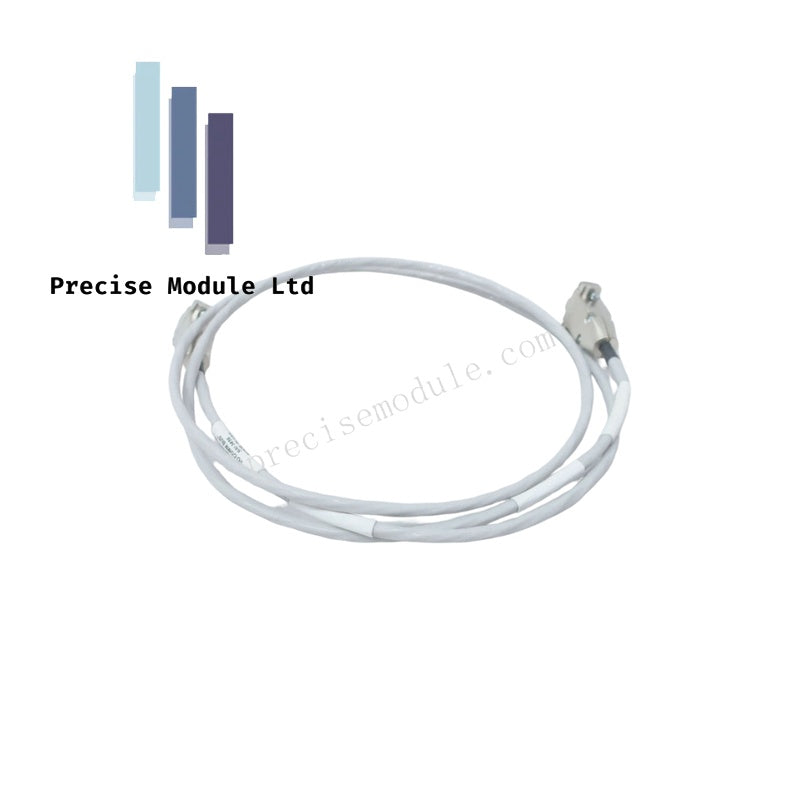

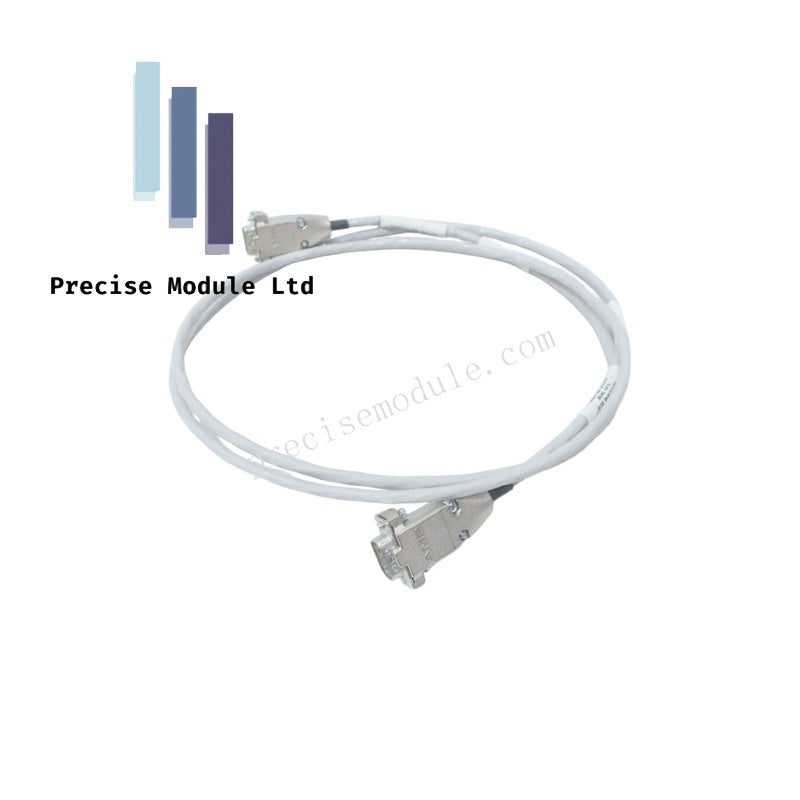

The Bently Nevada 4000212-006, also cataloged as the 4000212-006 I/O Communication Bus Cable, operates as a dedicated hardware component for physical data transmission within Bently Nevada 3300 and 3500 series machinery condition monitoring platforms. The pre-terminated cable assembly provides direct electrical linkage between internal backplane modules, rack components, or external communication interfaces without requiring field crimping or termination adjustments.

Hardware Specifications

Machinery Monitoring & Signal Cross-Talk Suppression

To prevent signal corruption within high-density Turbomachinery Instrumentation (TSI) installations, the Bently Nevada 4000212-006 incorporates a double-layer foil and braided copper shielding matrix. In environments such as steam turbine decks or industrial compressor stations, high-energy electromagnetic fields can induce cross-talk or voltage transients across parallel data lines. The multi-layered shield architecture provides continuous cross-talk suppression and radio frequency interference (RFI) attenuation, keeping the low-impedance differential communication signals stable. This ensures accurate diagnostic data routing from backplane processors to digital communication interfaces without packet loss or signal delay.

Frequently Asked Questions

Q: Can the 4000212-006 cable assembly be cut or spliced in the field to adapt to short distances?

A: No. The cable is a factory pre-terminated assembly with precise physical impedance tuning and integrated shield boundaries. Altering or slicing the cable in the field will degrade the shield coverage, modify characteristic impedance, and risk signal attenuation or bus errors.

Q: Is this communication cable rated for active hot-swapping while the 3500 monitoring rack is powered up?

A: Yes. As a passive, shielded connection component, it can be attached or detached from compatible I/O communication ports while the monitoring rack is energized, provided that the connected modules themselves support live insertion.

Field Installation Guidelines

1. Bend Radius Restrictions: Maintain a minimal bend radius of 8 times the outer cable diameter during routing to prevent internal conductor deformation, shield splitting, or stress on the molded connectors.
2. Conduit Separation Rules: Route the cable in dedicated low-voltage or communication trays. Avoid running the 4000212-006 parallel to motor lead lines, AC mains power, or variable frequency drive (VFD) conduits to suppress inductive noise.
3. Connector Alignment and Torque: Ensure proper structural alignment with the module mating receptacle prior to locking the retention mechanisms. Hand-tighten all integrated thumb screws or mounting hardware to guarantee continuous ground contact.
4. Shield Ground Continuity: The internal shield relies on the factory-terminated connector shell for grounding to the chassis. Verify that the mating module's grounding tabs are free of debris or non-conductive coatings to secure a low-resistance path to earth ground.
