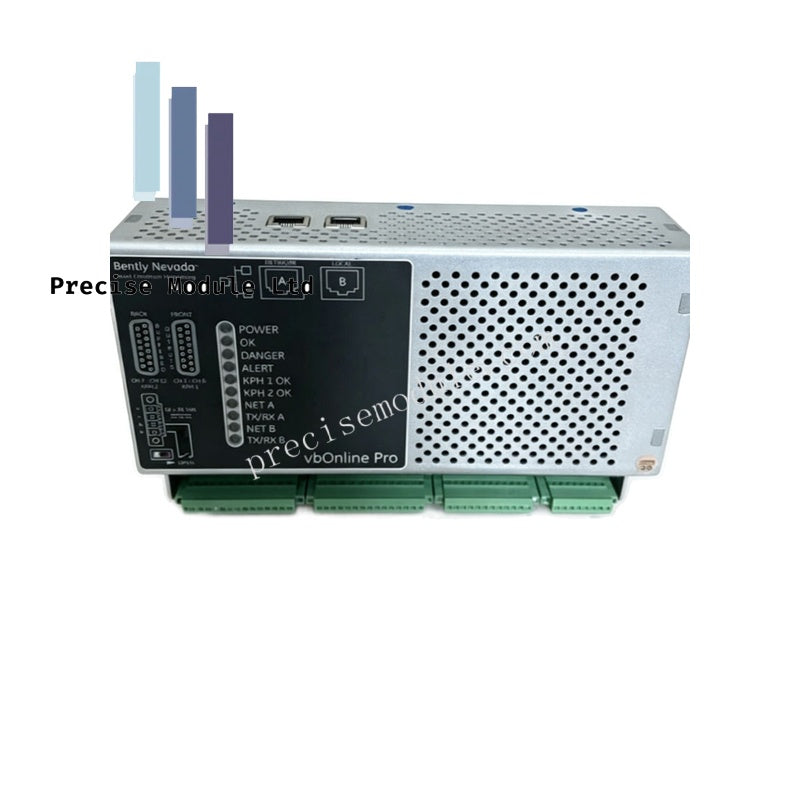

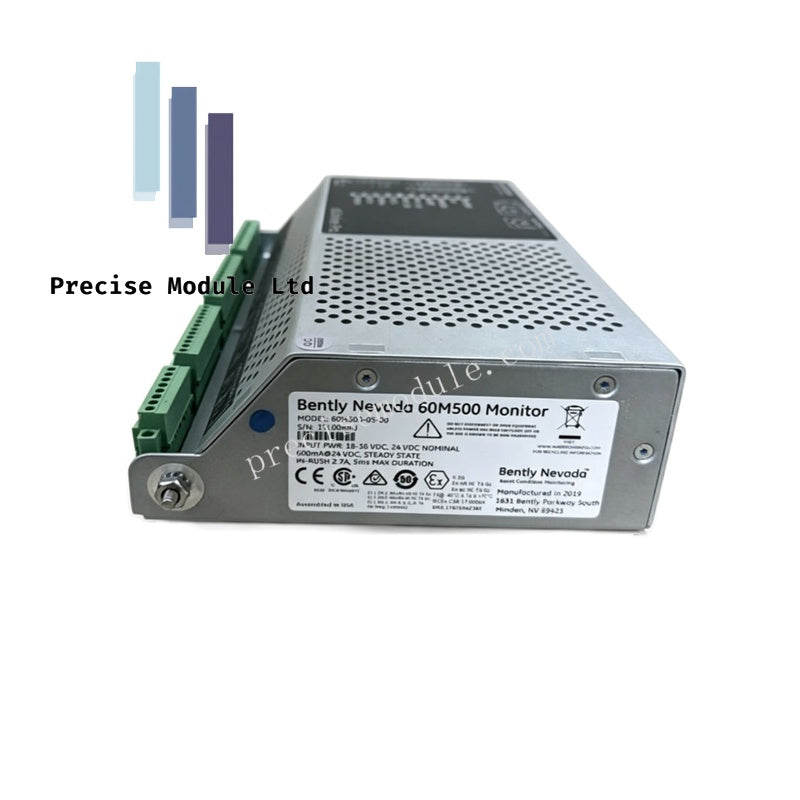

Bently Nevada 60M500-05-00 vbOnline Pro Condition Monitoring System

Bently Nevada 60M500-05-00 vbOnline Pro Condition Monitoring System

The Bently Nevada 60M500-05-00, also cataloged as the 60M500 Condition Monitoring System, operates as a dedicated hardware component for continuous asset vibration processing within System 1 network architectures. It samples analog input channels from industrial accelerometers utilizing 24 bit analog-to-digital conversion over a 40 kHz bandwidth to monitor rolling element bearings and gearbox configurations across variable machine operating states.

Hardware Specifications

Proximity Transducer Mechanical Monitoring Attributes

The 60M500-05-00 utilizes precise signal conditioning parameters to process rotor dynamics and high-frequency structural vibration data simultaneously. Dual Ethernet connections allow concurrent communication with external Modbus sensor systems and machine controllers, ensuring cross-talk suppression and continuous validation of phase, speed, and gap voltage vectors without processing latency.

Frequently Asked Questions

Q: What type of analog-to-digital conversion does this unit use for vibration inputs?

A: The module executes high-resolution 24 bit analog-to-digital conversion across a maximum bandwidth of 40 kHz to capture transient and steady-state mechanical data.

Q: How does the system handle machines operating at variable speeds and loads?

A: Data collection and alarming functions are dynamically categorized and compartmentalized based on combinations of measured speed, vibration amplitude, and active process parameters.

Field Installation Guidelines

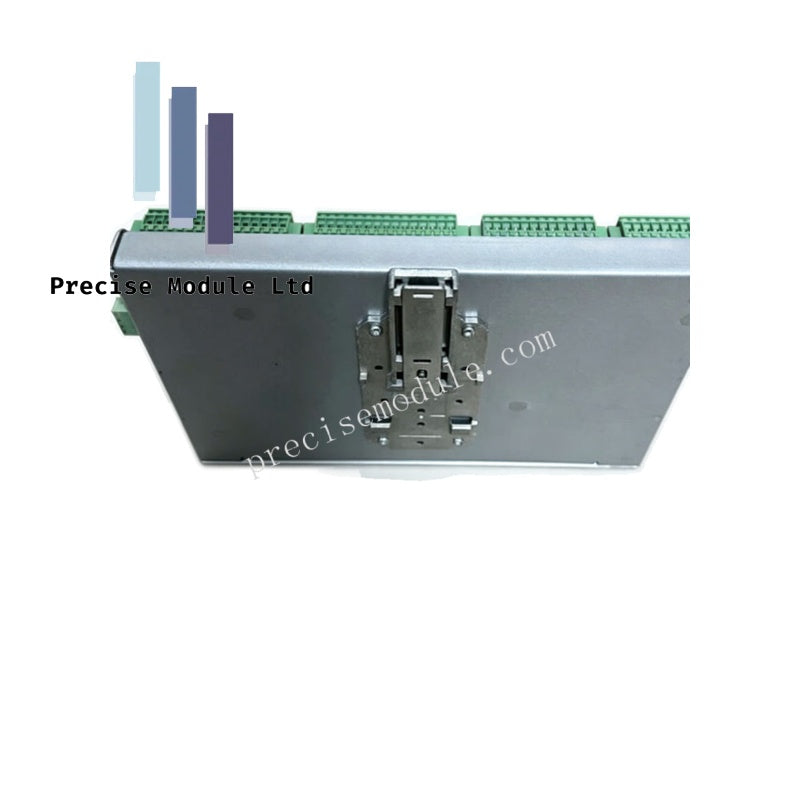

Mount the unit horizontally on a standard symmetrical top-hat DIN rail inside an environmental enclosure that meets field pollution degree 2 limits. Verify that the input supply voltage maintains operational limits below 60 Vdc or 30 Vrms before energizing the device terminal blocks. Ground the accelerometer cable shields at the dedicated chassis ground rail to eliminate stray electromagnetic noise and prevent data distortion.
