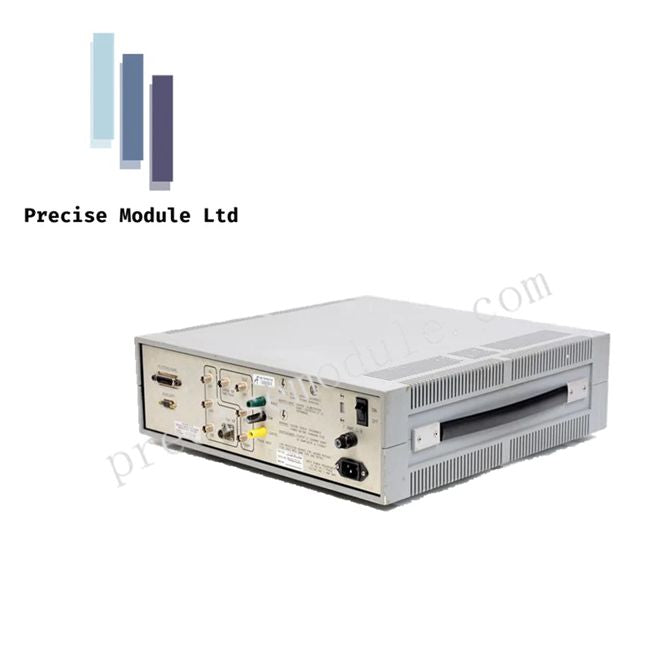

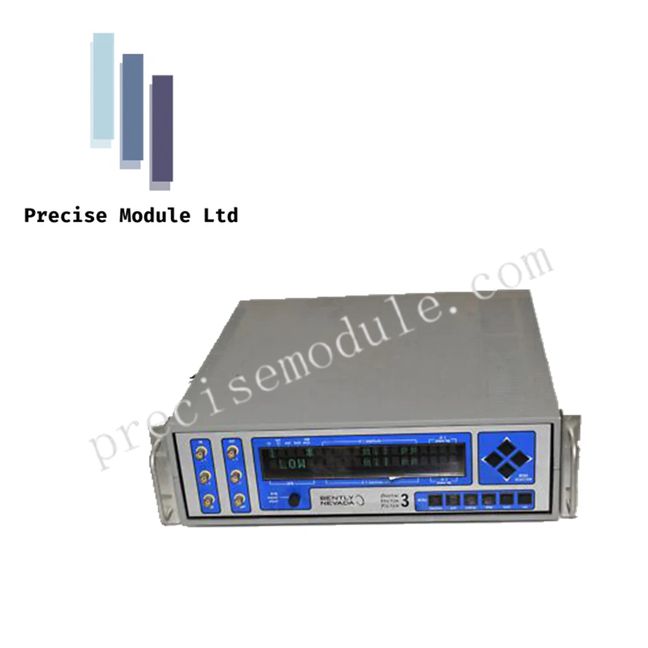

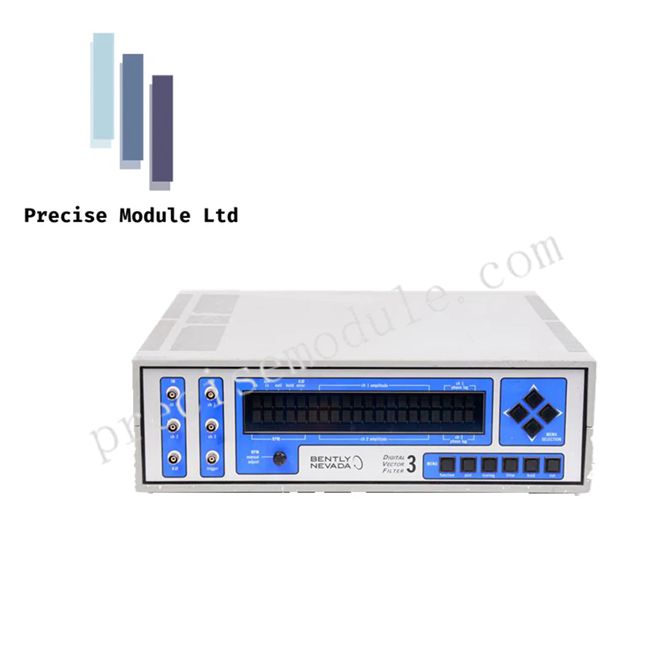

Bently Nevada 77581-02 DVF 3 Digital Vector Filter Analyzer

Product Description

Overview

The Bently Nevada 77581-02 (DVF 3) is a dual-channel, high-precision digital vector filter designed for field vibration analysis and rotor diagnostics. Unlike permanent 3500 protection modules, the DVF 3 serves as a portable diagnostic tool for monitoring machinery transients, rotor dynamics, and steady-state vibration characteristics.

It converts vibration sensor signals into filtered vector data, providing amplitude and phase information relative to a Keyphasor® reference, enabling detailed analysis of machine behavior under varying operating conditions.

Key Features

• Dual-channel simultaneous vibration signal processing with Keyphasor input

• Generates filtered vector data for amplitude and phase analysis (1X, 2X, or nx components)

• Bode, Polar, and Sweep frequency plotting for rotor response evaluation

• Adjustable tracking filter bandwidth (12–120 cpm)

• Peak hold function captures maximum vibration vectors during operation

• Portable, rugged enclosure with lightweight design (0.8 kg)

• Data interface via GP-IB for recording or digital plotting

• Supports both metric and English units

Technical Specifications

Applications

• Rotor Balancing: Determine weight placement for precise rotor balancing using phase data

• Transient Analysis: Capture high-resolution vibration data during startup, shutdown, or emergency coastdowns

• Critical Speed Evaluation: Identify resonance points and rotor response to operational speeds

• Structural Fault Detection: Detect early-stage shaft cracks or misalignment through phase and amplitude shifts

• Diagnostic Reporting: Connect to digital plotters or computers for data documentation and trend analysis

FAQ

Q: Can the DVF 3 handle high-speed machinery?
A: Yes, it supports shaft speeds up to 100,000 RPM, suitable for most industrial turbomachinery.

Q: How many channels does it support?
A: Two vibration channels plus one Keyphasor reference input.

Q: Can it operate with different sensor types?
A: Yes, it is compatible with proximity, velocity, and accelerometer sensors.

Q: Is this device portable?
A: Yes, it is designed as a lightweight, rugged portable analyzer for field use.
