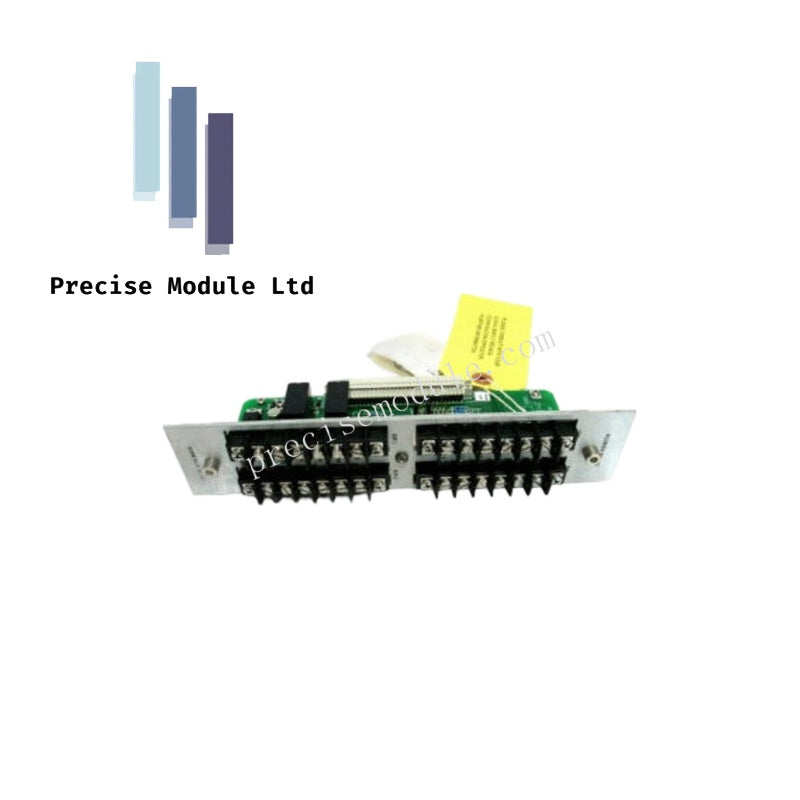

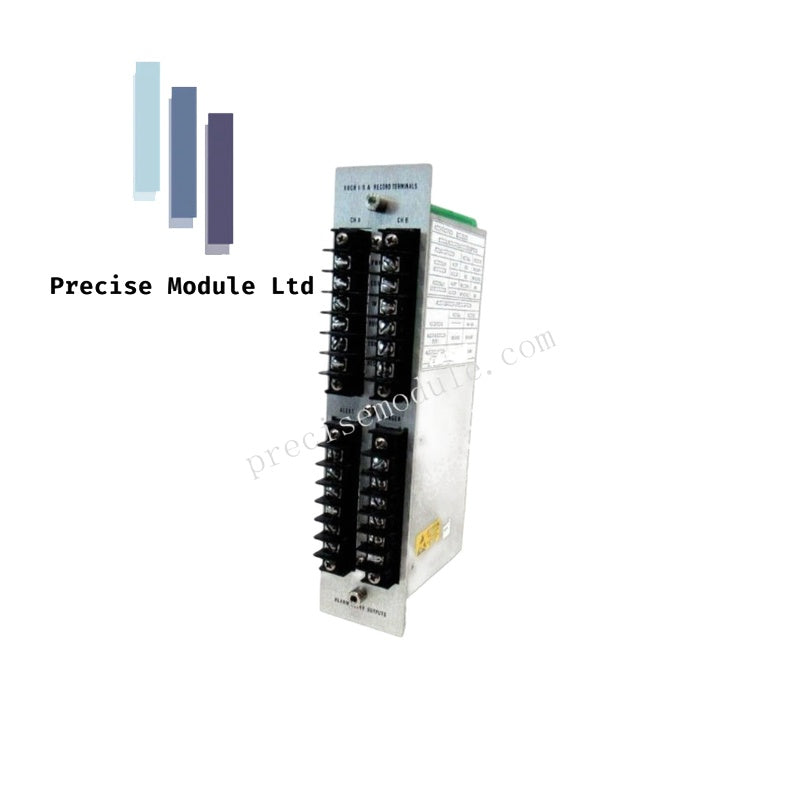

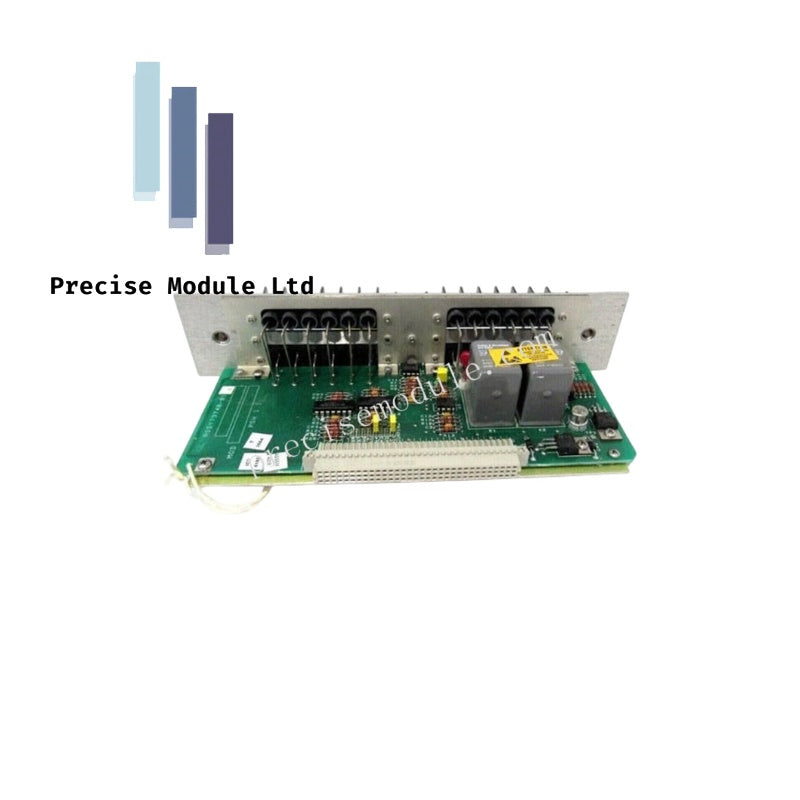

Bently Nevada 78462-02 Signal Input /Alarm Output Transducer Module

Bently Nevada 78462-02 Signal Input /Alarm Output Transducer Module

The Bently Nevada 78462-02, also cataloged as the 78462-02 Signal Input /Alarm Output Transducer Module, operates as a dedicated hardware component for vibration signal input and alarm output processing within the Bently Nevada 2300 Vibration Monitor platform. It interfaces with seismic or proximity transducers and supports machinery condition monitoring, alarm generation, and signal transfer.

Hardware Specifications

Cross-Talk Suppression and Eddy-Current Probe Validation

The module operates with the 2300 Vibration Monitor to acquire vibration and transducer signals for machinery condition assessment. When proximity transducers are connected, measurement accuracy depends on correct eddy-current probe scaling and verification of probe gap voltage during commissioning. A probe bias near the commonly accepted -10 VDC target is used where applicable to confirm operation within the calibrated measurement range. Shielded instrumentation cables, proper grounding practices, and physical separation between signal and power wiring reduce channel cross-talk and preserve signal integrity for rotor dynamic measurements.

Frequently Asked Questions

Q: Which sensor types are supported by the associated monitoring platform?
A: The 2300 Vibration Monitor accepts two channels of seismic or proximity measurements using compatible accelerometers, Velomitor sensors, or Proximitor transducers, together with one speed reference input.

Q: Does the module generate alarm outputs?
A: Yes. The associated 2300 monitoring platform provides relay alarm outputs based on configured vibration thresholds and monitoring logic.

Q: Can the monitoring platform interface with external control systems?
A: Yes. The 2300/20 monitor supports a configurable 4-20 mA analog output for DCS integration, while the 2300/25 monitor provides System 1 Classic connectivity for Trendmaster SPA communication.

Field Installation Guidelines

• Install the module in the designated location specified for the 2300 monitoring system.
• Verify secure termination of all transducer, speed input, and alarm wiring before energizing the system.
• Route sensor cables independently from AC power and relay wiring to minimize electromagnetic interference.
• Ground cable shields according to the system grounding specification to reduce common-mode noise and signal cross-talk.
• During commissioning, verify transducer polarity, channel response, alarm operation, and communication with the associated monitoring platform.
