Bently Nevada 79492-01 3300/35 Six-Channel Analog Temperature Monitor PWA

Bently Nevada 79492-01 3300/35 Six-Channel Analog Temperature Monitor PWA

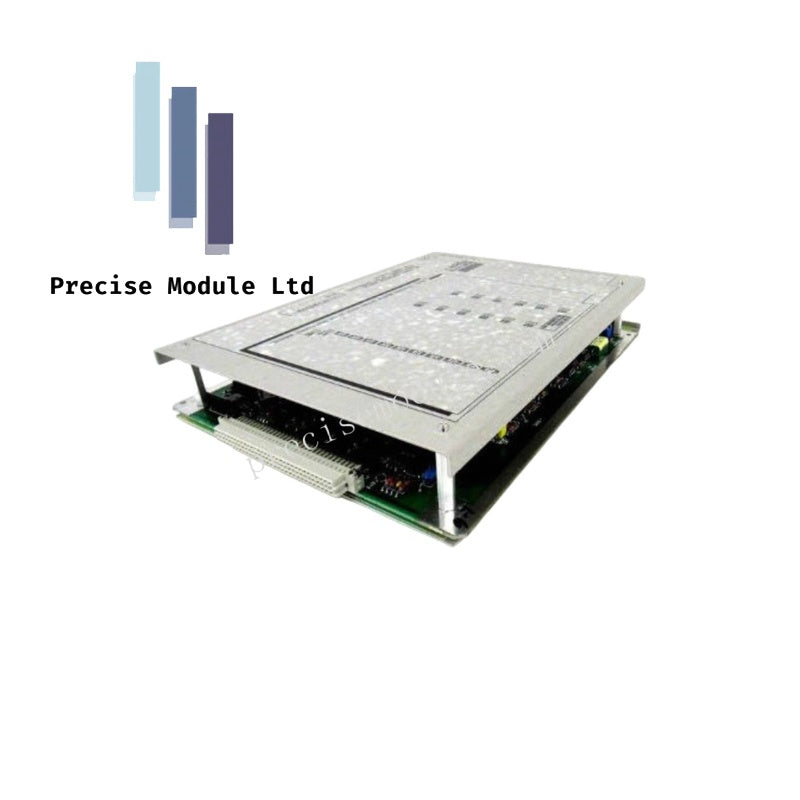

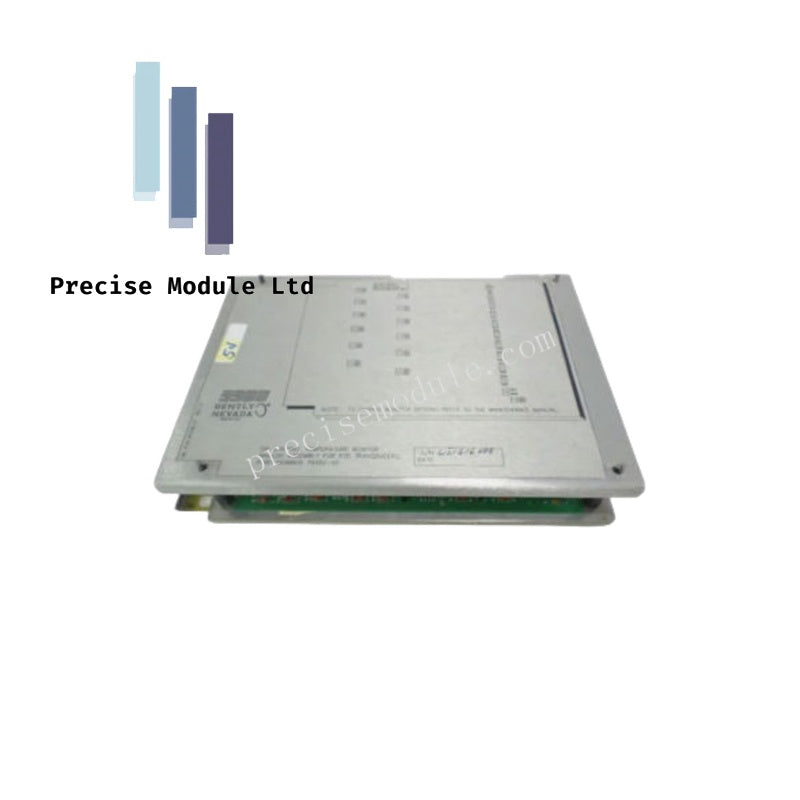

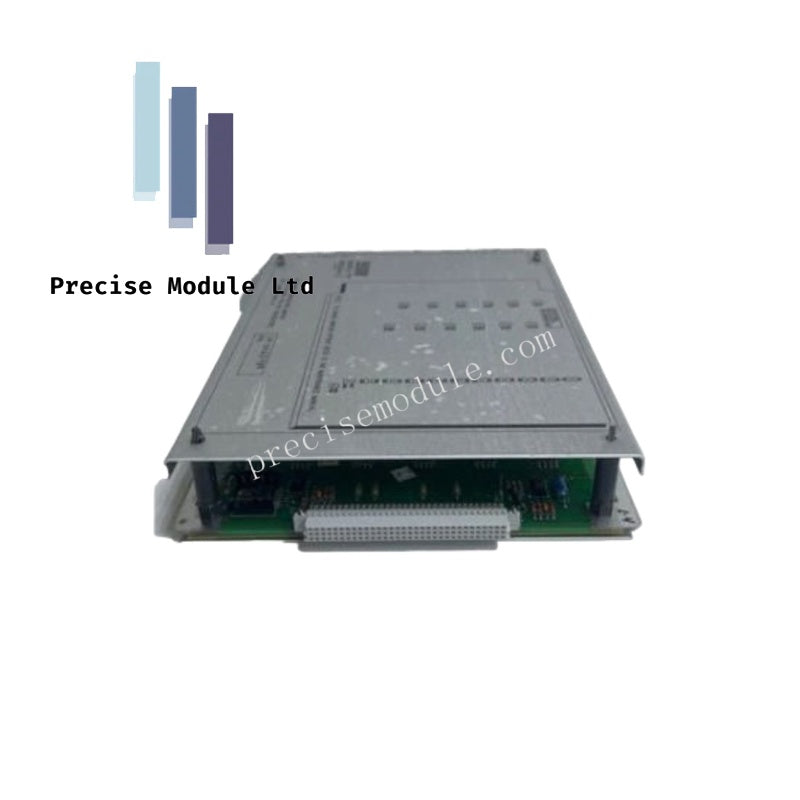

Configured for multi-channel thermal tracking in 3300 machinery protection systems, the Bently Nevada 79492-01 (79492-01 Six-Channel Analog Temperature Monitor PWA) provides direct physical/electrical execution. It serves as the primary internal circuitry module interfacing with raw plant instrumentation to protect high-speed rotating equipment from over-temperature failures.

Hardware Specifications

Proximity Instrumentation and Gap Voltage Validation

The Bently Nevada 79492-01 integrates with the 3300 framework to maintain strict isolation parameters across sensor loops. In Turbomachinery Instrumentation (TSI) deployments where temperature arrays run parallel to eddy-current probe networks, cross-talk suppression circuitry minimizes high-frequency electromagnetic interference. The system design ensures that transient voltages do not alter the gap voltage validation metrics (-10 VDC targets) typical of adjacent proximity transducers, preserving the integrity of integrated vibration monitoring and rotor dynamics calculations under varying thermal loads.

Frequently Asked Questions

Q: Can this PWA be hot-swapped while the 3300 rack is powered?

A: No. The 3300 series monitor architecture requires a total power shutdown of the specific rack or slot row before extracting or inserting the mainboard assembly to prevent backplane bus overcurrent spikes.

Q: How are different RTD or Thermocouple types configured on this mainboard?

A: Input configuration is managed through physical hardware jumpers located on the PWA surface. Users must position the jumpers according to the sensor curves specified in the original 3300/35 hardware configuration manual.

Field Installation Guidelines

• Electrostatic Discharge (ESD) Protection: Technicians must wear a grounded wrist strap attached to the rack chassis during handling. The unprotected circuit traces on the PWA are sensitive to static discharge.
• Terminal Block Wiring: Ensure all sensor inputs are wired using shielded twisted-pair cabling. The shield wires must be terminated only at the designated chassis ground point on the rack terminal strip to eliminate ground loops.
• Chassis Slide Alignment: Align the board edges precisely with the plastic card guides inside the 3300 rack chassis slot. Push firmly until the rear connector fully mates with the backplane assembly, then secure the front panel screws.
