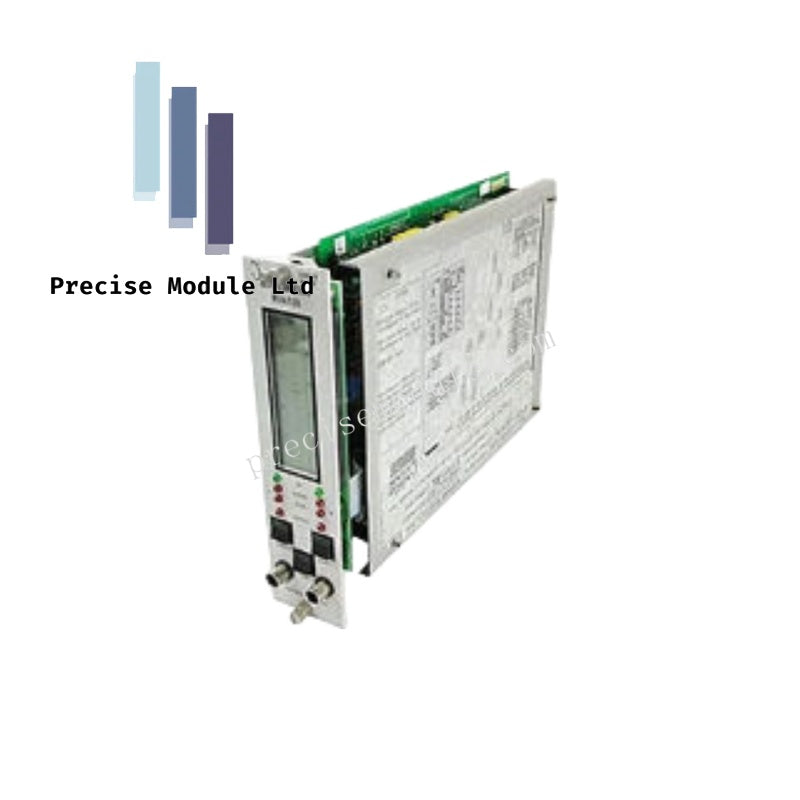

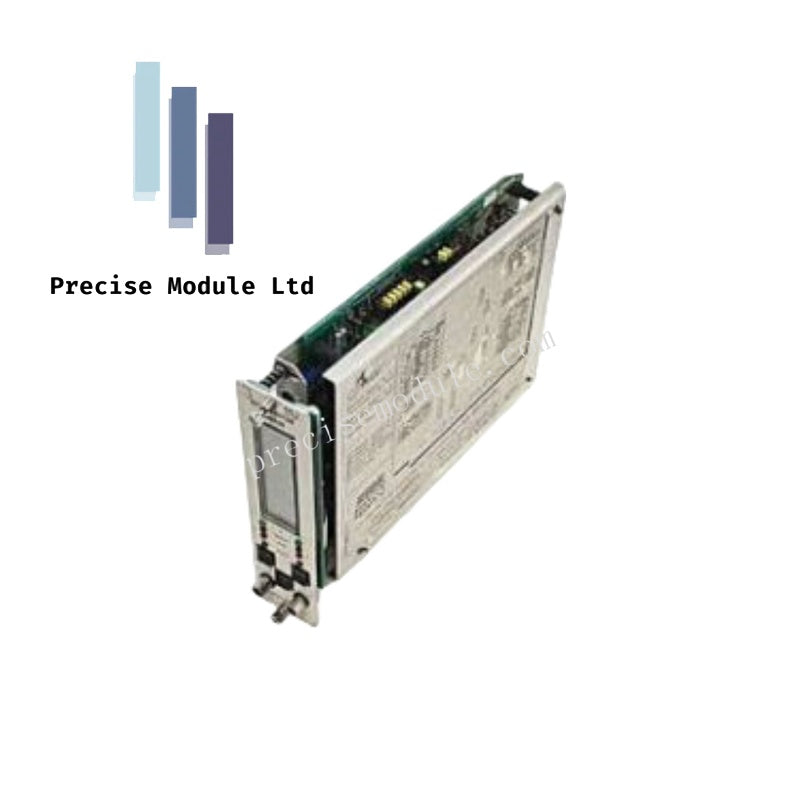

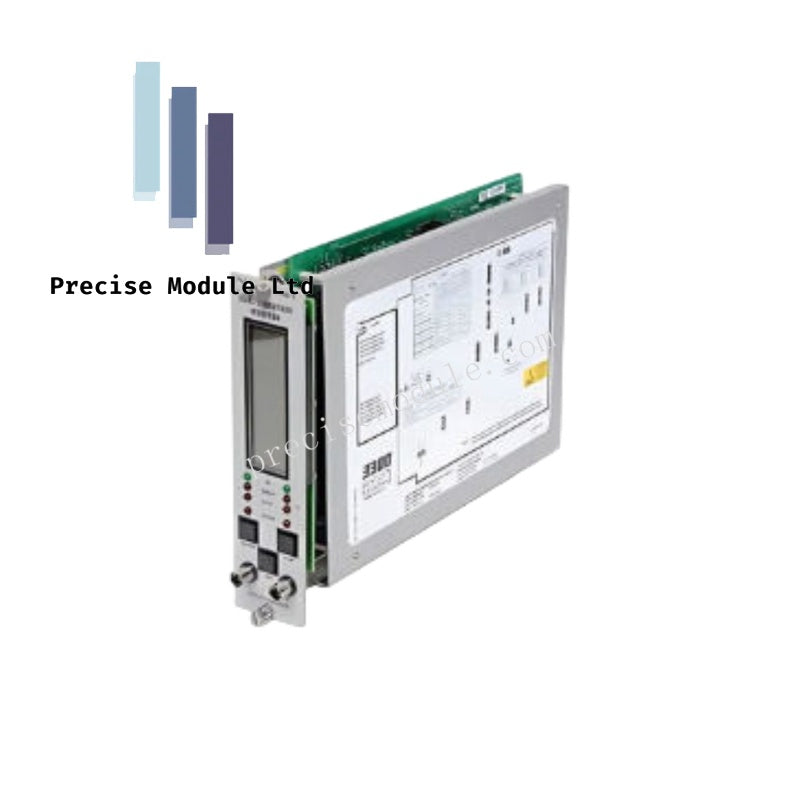

Bently Nevada 79502-01 Temperature Monitor

Bently Nevada 79502-01 Temperature Monitor

The Bently Nevada 79502-01, also cataloged as the 79502-01 Temperature Monitor, operates as a dedicated hardware component for thermal signal conditioning within the 3500 Machinery Monitoring System. This module executes real-time processing of temperature inputs, enabling continuous, online surveillance of critical machinery assets to support predictive maintenance and operational safety protocols.

Hardware Specifications

Rotor Dynamics and Signal Validation

The 79502-01 monitor maintains precise signal conditioning essential for the accuracy of temperature-based machinery protection. By providing stable input processing, it ensures that thermal measurements remain consistent with rotor dynamics data, allowing the system to differentiate between thermal expansion and mechanical displacement. Effective cross-talk suppression is implemented within the circuitry to prevent interference between channels, ensuring that gap voltage validation and signal integrity are maintained even in complex, high-vibration monitoring environments.

Frequently Asked Questions

Q: Can the 79502-01 be configured to support different sensor types?

A: Yes, the module supports configurable input types, allowing for adaptation to various RTD or thermocouple sensors, provided they fall within the supported range specified in the 3500 rack configuration software.

Q: Is it possible to update the firmware on the 79502-01 without removing the module?

A: Firmware updates are supported via the 3500 system configuration software through the Transient Data Interface (TDI) module, eliminating the need to physically extract the monitor module for standard version upgrades.

Field Installation Guidelines

1. Module Insertion: Ensure the 3500 rack is powered on or off as per local safety procedures before sliding the 79502-01 into the designated slot. Confirm that the module guide rails are aligned to prevent damage to the backplane connector pins.

2. Shielding and Grounding: Terminate cable shields at the designated rack ground points to minimize electromagnetic interference. Maintain continuous shielding from the sensor housing to the monitor terminal block to ensure signal accuracy.

3. Loop Integrity: Verify the integrity of the loop resistance for all temperature sensors. High loop resistance can introduce errors in the signal conditioning process, potentially affecting the precision of alert and danger setpoint triggering.

4. Calibration Check: Upon initial installation, perform a signal verification check using a calibrated simulator to confirm that the measured values align with the physical temperature inputs across all four channels.
