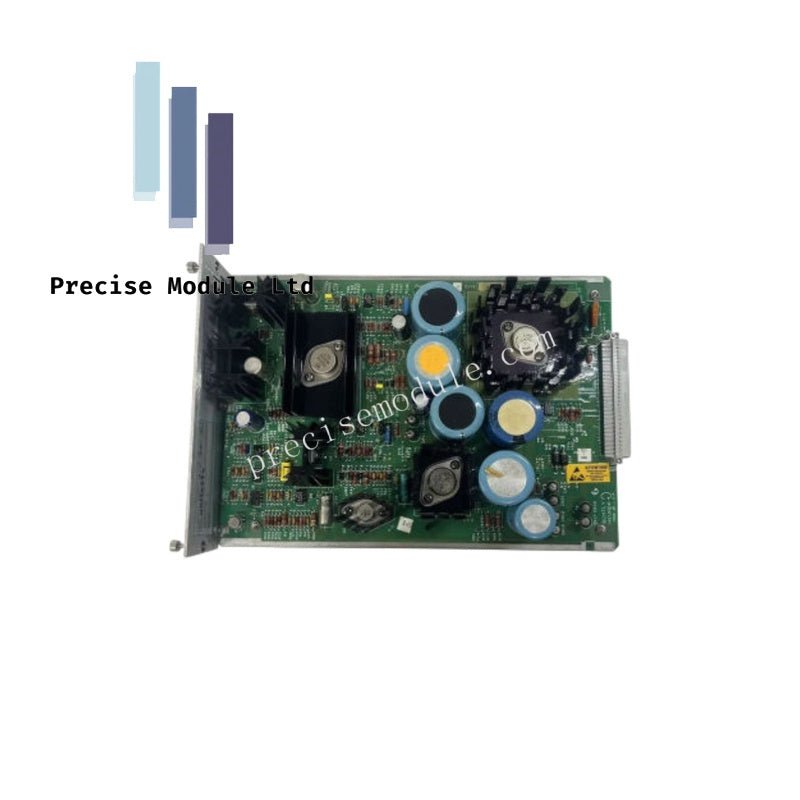

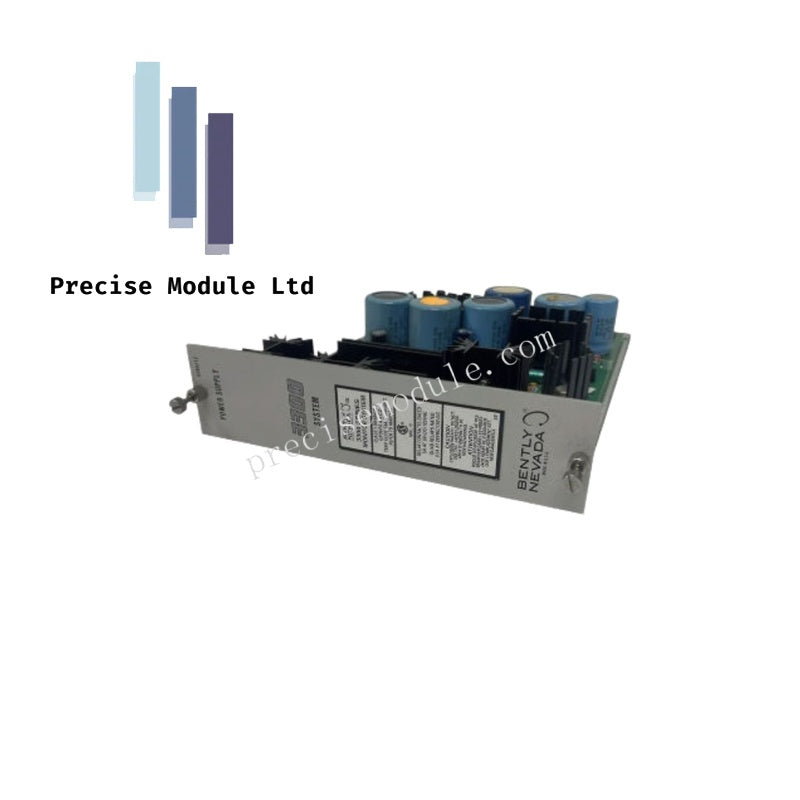

Bently Nevada 88194-01 3300 Power Supply Module

Bently Nevada 88194-01 3300 Power Supply Module

Configured for regulated power distribution in 3300 machinery monitoring systems, the Bently Nevada 88194-01 (88194-01 Power Supply Module) provides direct electrical power conversion and supply functions for Bently Nevada 3300 rack monitoring hardware.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Monitoring

The Bently Nevada 88194-01 is a power supply module designed to provide regulated electrical power for 3300 system monitoring modules. The module supports stable operation of connected monitoring hardware by supplying controlled power within the rack architecture.

The power supply function supports machinery monitoring configurations that include vibration and position measurement modules. Stable power delivery maintains the operating conditions required for signal conditioning hardware, including proximity measurement channels using eddy-current probe systems. Proper power integrity supports accurate rotor dynamics monitoring functions by maintaining consistent electrical operating conditions across installed monitoring modules.

Frequently Asked Questions

Q: What is the primary function of the Bently Nevada 88194-01 module?
A: The 88194-01 functions as a power supply module for Bently Nevada 3300 system monitoring hardware.

Q: Is the 88194-01 a measurement input module?
A: No. The module provides electrical power supply functions and does not perform direct vibration or position measurement processing.

Q: Which system is the 88194-01 designed for?
A: The module is designed for installation within Bently Nevada 3300 machinery monitoring systems.

Field Installation Guidelines

Install the module in the designated 3300 rack power supply position according to the system hardware configuration requirements. Verify rack slot assignment, connector engagement, and power wiring conditions before energizing the monitoring system.

Maintain proper separation between power wiring and low-level instrumentation signal cables. Confirm grounding connections and rack electrical integrity according to site installation practices before placing connected monitoring modules into operation.
