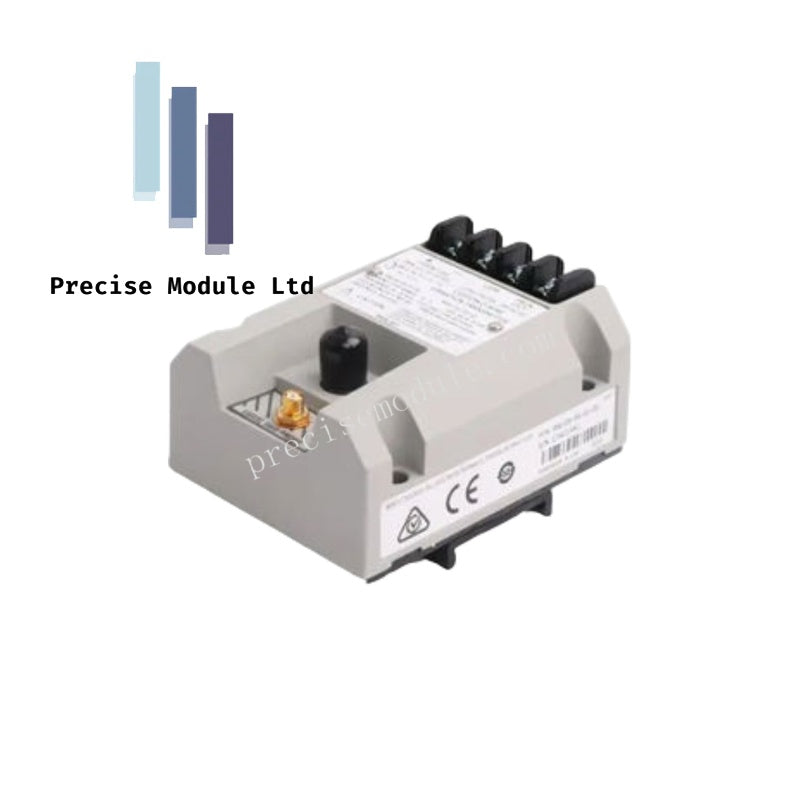

Bently Nevada 990-04-70-01-00 990 Vibration Transmitter

Bently Nevada 990-04-70-01-00 990 Vibration Transmitter

Configured for proximity probe signal conditioning and 4-20 mA vibration transmission in machinery monitoring systems, the Bently Nevada 990-04-70-01-00 (990-04-70-01-00 990 Vibration Transmitter) provides direct physical/electrical execution by converting dynamic shaft vibration measurements into an industry-standard analog current output.

Suffix Breakdown & Model Matrix

The available documentation identifies 990-04-70-01-00 as a complete ordering model. No official suffix breakdown is specified in the provided data.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 990 Vibration Transmitter accepts input from a 3300 NSv eddy-current proximity probe and its matching extension cable. Internal signal conditioning converts shaft vibration into peak-to-peak engineering units and produces a proportional 4-20 mA output for connection to PLC, DCS, or machinery protection systems.

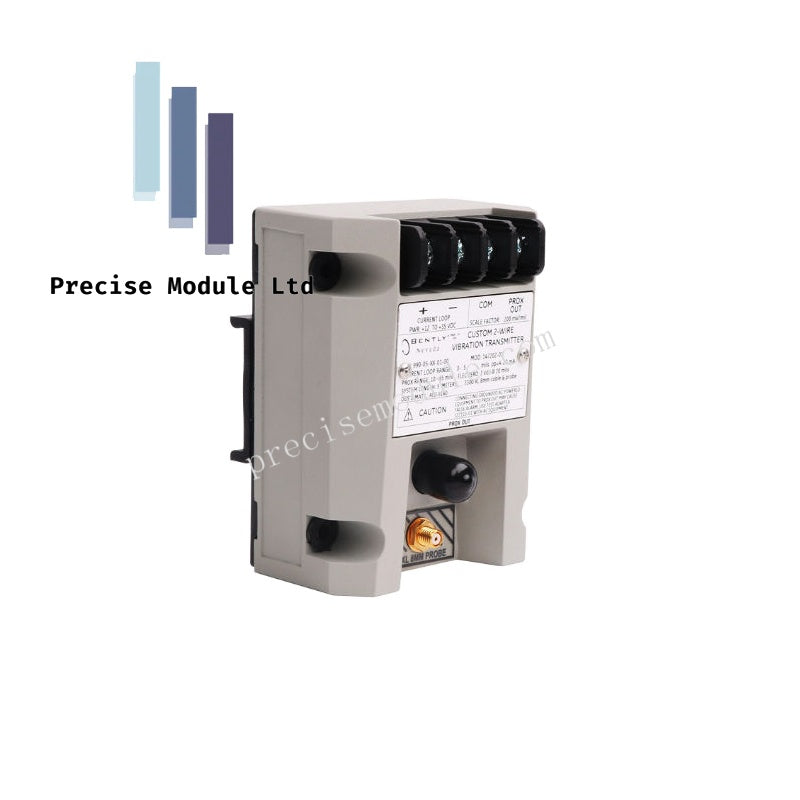

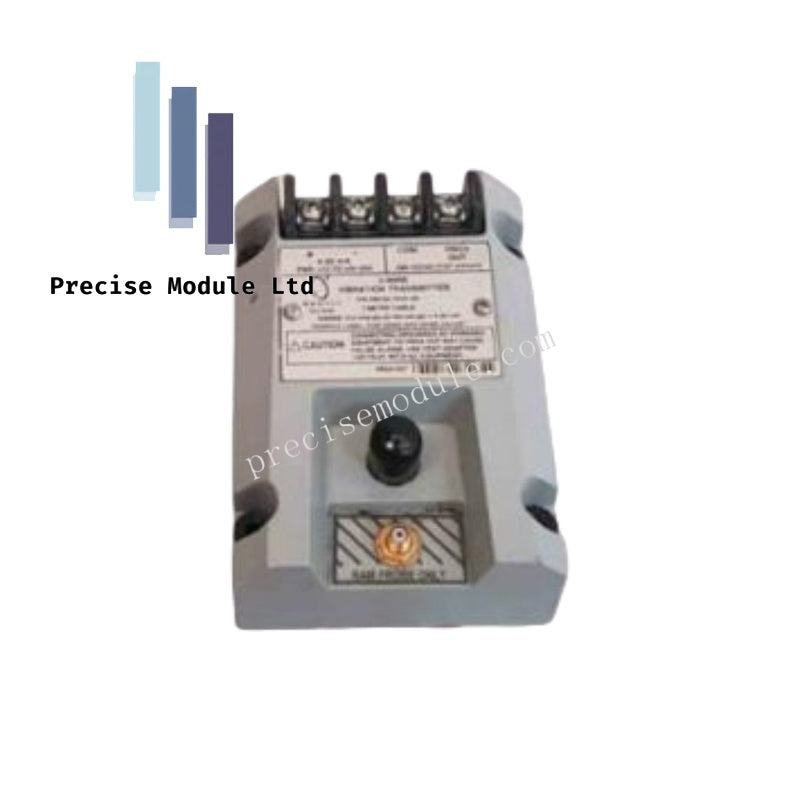

The integrated Proximitor Sensor eliminates the need for a separate external signal conditioning unit. In addition to the analog loop output, the transmitter provides non-isolated PROX OUT and COM terminals together with a coaxial diagnostic connector for dynamic vibration and gap voltage monitoring.

Gap voltage verification is commonly referenced to approximately -10 VDC during commissioning to confirm proper probe positioning within the linear measurement range. Correct probe scaling and cable matching are required to maintain measurement accuracy and support rotor dynamics analysis.

Frequently Asked Questions

Q: Which proximity probe is compatible with the 990-04-70-01-00?
A: The transmitter is designed for use with a Bently Nevada 3300 NSv proximity probe and its matching 5 m or 7 m extension cable.

Q: Does the transmitter require an external Proximitor Sensor?
A: No. The unit incorporates an integrated Proximitor Sensor within the transmitter housing.

Q: How can the analog loop output be verified during commissioning?
A: The built-in Test Input pin allows loop output verification using a function generator without requiring machine operation.

Field Installation Guidelines

Install the transmitter using either the supplied DIN rail clips or the bulkhead mounting hardware. Ensure adequate mechanical support to prevent cable strain.

Use only the specified 3300 NSv proximity probe and matching extension cable to maintain the calibrated measurement system. Do not substitute cables with different electrical characteristics.

Route probe cables separately from power wiring and variable-frequency drive output cables to reduce electromagnetic interference. Maintain proper shielding and grounding practices throughout the installation.

Before placing the transmitter into service, verify probe gap voltage, confirm the 4-20 mA loop current using the Test Input function, and adjust the zero and span potentiometers only when calibration is required.
