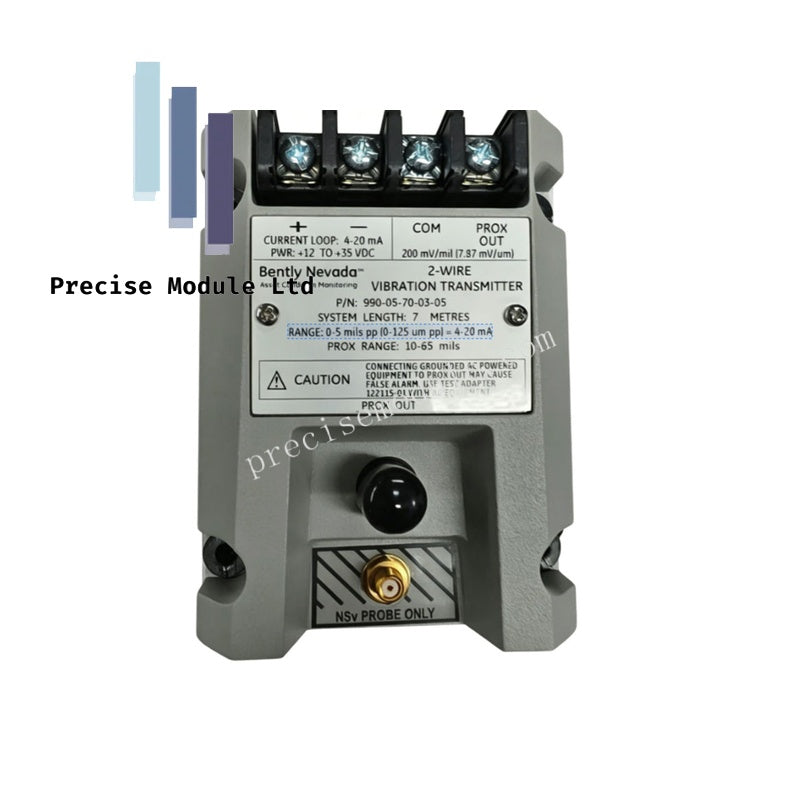

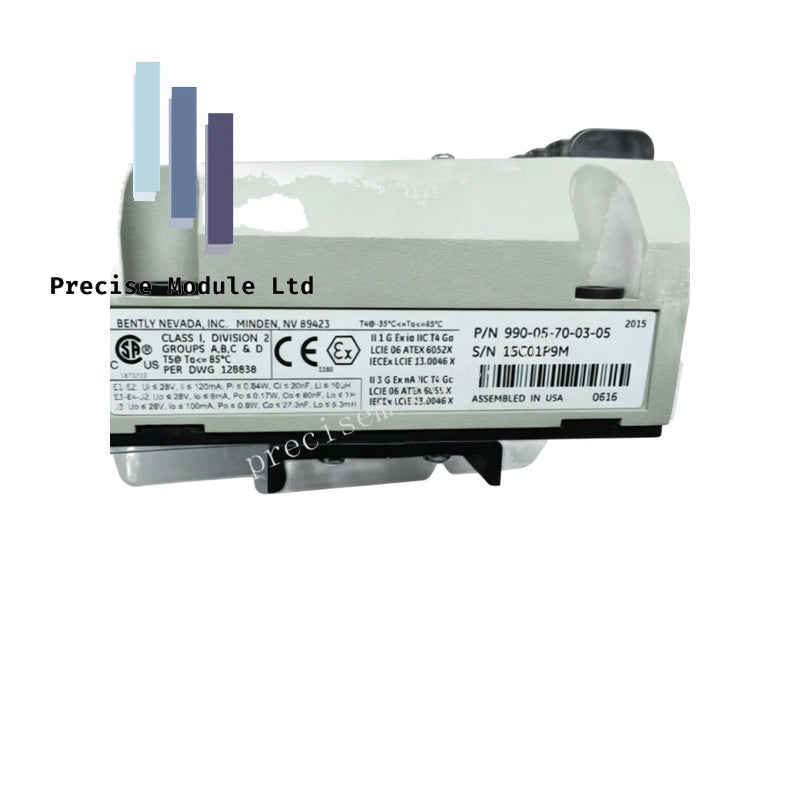

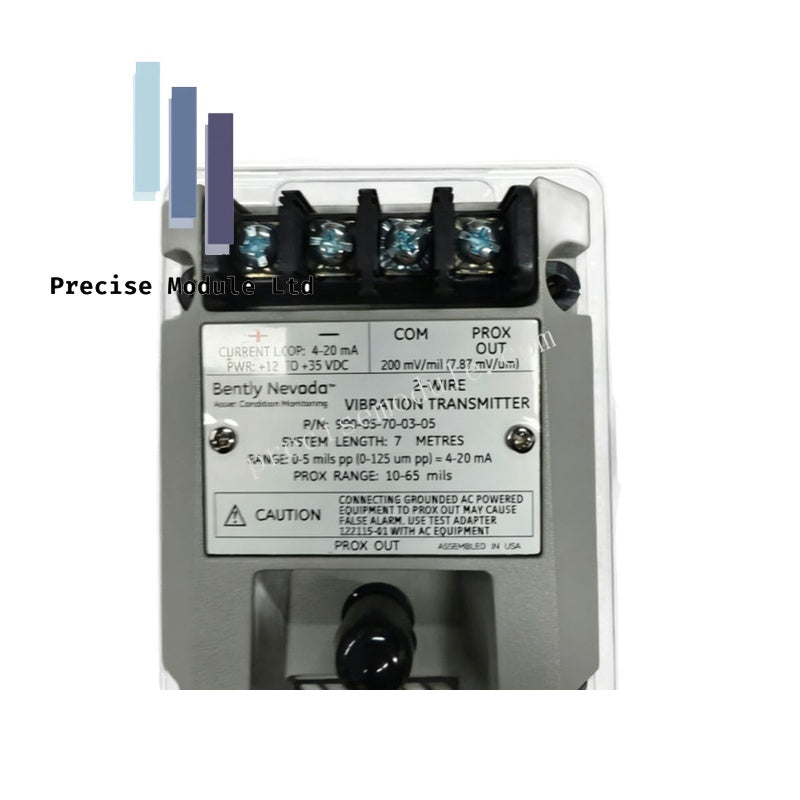

The Bently Nevada 990-05-70-03-05, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for conditioning eddy-current proximity probe signals into proportional current loops within machinery control and monitoring platforms.

Suffix Breakdown & Model Matrix

• 990: Base Model (990 Vibration Transmitter with Integrated Proximitor Sensor)
• 05: Full-scale option (0-5 mils peak-to-peak / 0-125 um peak-to-peak)
• 70: System length option (7.0 meters system length)
• 03: Mounting option (Includes both 35 mm DIN-rail clips and bulkhead mounting screws)
• 05: Agency approval option (CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval)

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The transmitter functions natively as a proximity transducer interface, converting raw high-frequency RF signals into a linear voltage variation before rectifying it into a 4-20 mA current loop calibrated specifically to a 0-5 mils peak-to-peak scale. During initialization and routine diagnostic sweeps, gap voltage validation targets a nominal -10 VDC baseline across the PROX OUT and COM terminals to verify the physical distance between the probe tip and the target shaft. This electrical offset isolation prevents cross-talk suppression failures across multi-axis arrangements and allows high-fidelity extraction of rotor dynamics via the unconditioned BNC port. If the probe gap exceeds calibrated physical limits or experiences a cable disconnect, the integrated Not OK circuit triggers immediately, clamping the loop output below 3.6 mA to prevent false machinery protection alarms.

Frequently Asked Questions

Q: Can this transmitter be utilized with a 5.0-meter proximity probe system?

A: No. This specific configuration is calibrated for a 7.0-meter system length. Using a 5.0-meter total cable length will alter the electrical parameters of the tuned RF driver circuit, resulting in incorrect eddy-current probe scaling and significant measurement errors.

Q: What is the purpose of the Test Input pin located on the housing?

A: The Test Input pin allows field verification of the internal transmitter conditioning and downstream 4-20 mA loop logic. By injecting a known AC voltage waveform from an external function generator into this pin, technicians can simulate real peak-to-peak vibration values to verify the output scaling without rotating the machine shaft.

Q: Does adjusting the zero or span potentiometers alter the raw dynamic signal at the BNC connector?

A: No. The zero and span potentiometers are non-interacting adjustments that affect only the conditioned 4-20 mA analog loop output. They do not alter the raw AC vibration waveform or DC gap voltage present at the dynamic BNC interface.

Field Installation Guidelines

• Enclosure and Environmental Shielding: Install the transmitter inside a sealed, dust-proof industrial enclosure to protect the non-interacting zero and span adjustment potentiometers from corrosive environmental particulates and moisture, especially in ABS maritime applications.
• Coaxial Cable Layout and Isolation: Ensure the coaxial cable connection from the 3300 NSv extension cable to the transmitter is tight and free of mechanical tension. Insulate the outer barrel of the coaxial connector to prevent accidental contact with the metal enclosure chassis, which can introduce ground loops and corrupt the vibration readings.
• Shield Termination and Grounding: Terminate the outer shield of the 4-20 mA loop signal cable at a single point, preferably at the control system cabinet ground rack. Do not ground the shield at both ends to prevent circulating ground currents from introducing signal noise into the diagnostic telemetry.
• Conduit Routing Constraints: Route the low-voltage sensor input wiring and the 4-20 mA loop wiring in dedicated, grounded metal conduits separated from high-voltage AC power distribution lines or variable frequency drive (VFD) output cables to minimize electromagnetic interference.
