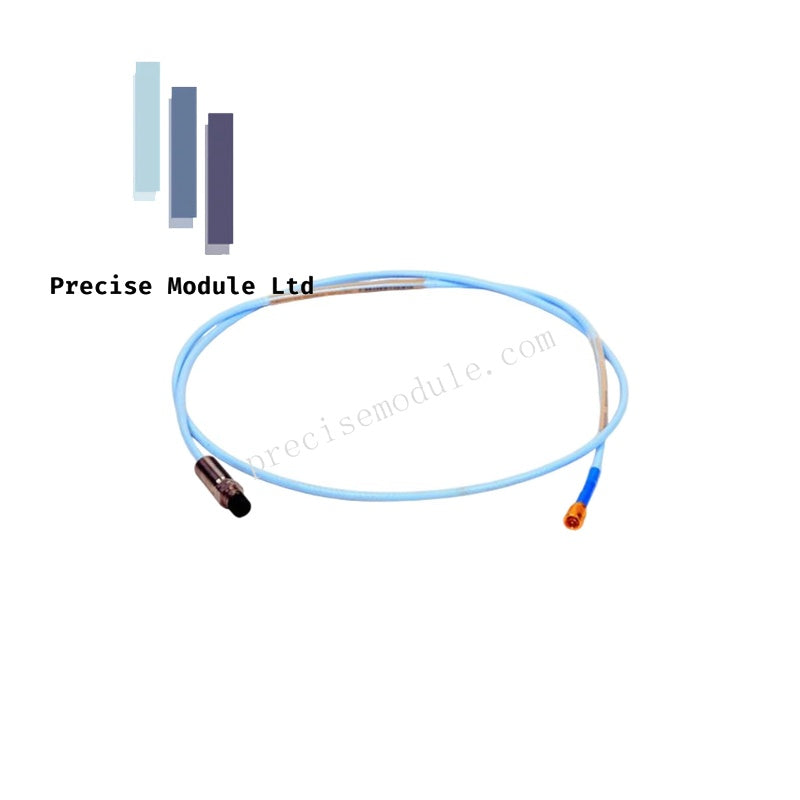

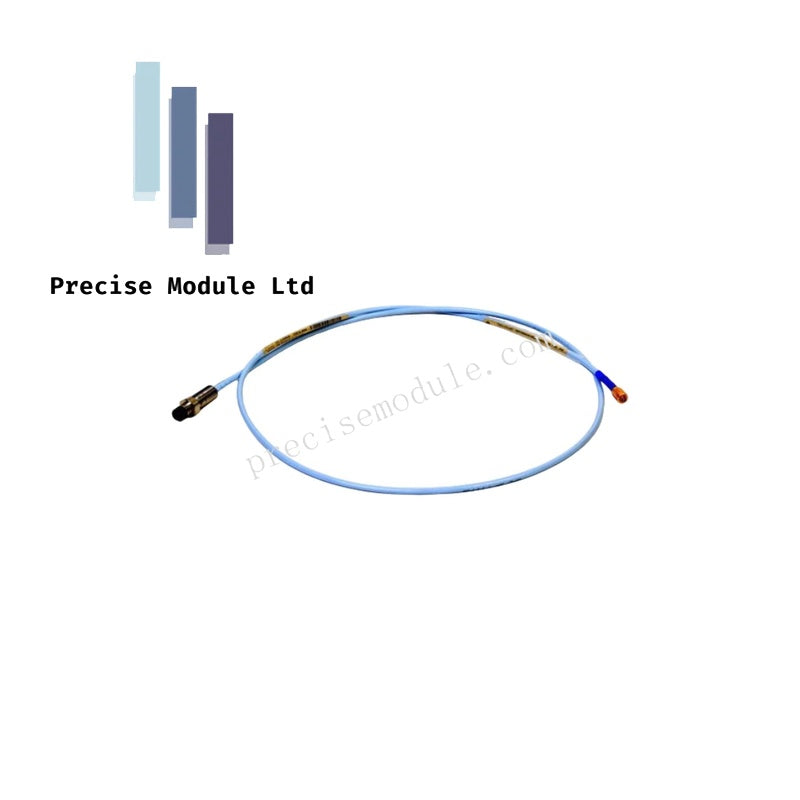

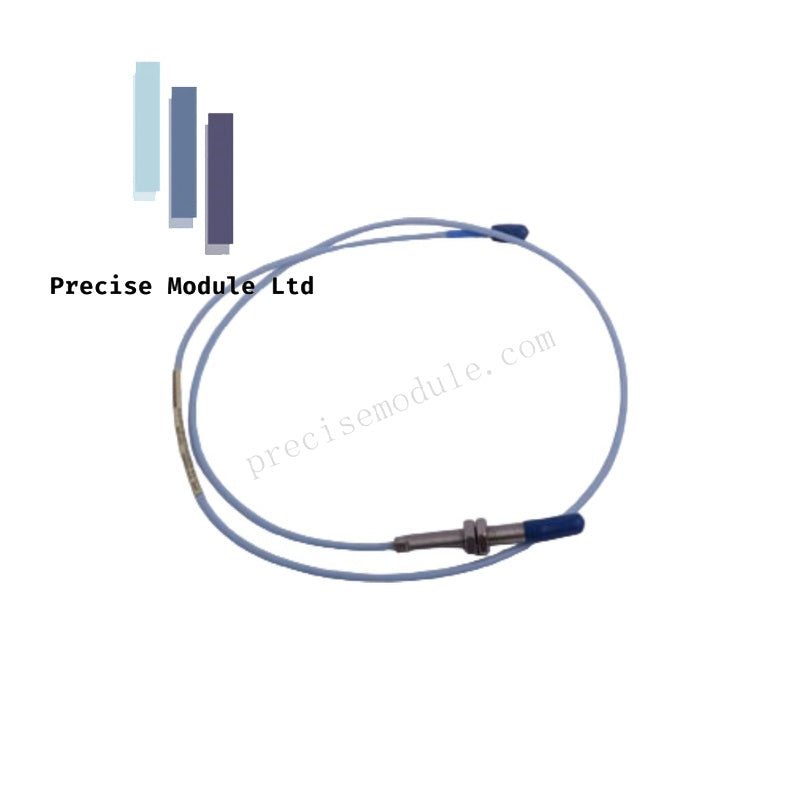

Bently Nevada JNJ5300-08-05-007-030-10-00-00-06 Proximity Transducer System

Bently Nevada JNJ5300-08-05-007-030-10-00-00-06 Proximity Transducer System

The Bently Nevada JNJ5300-08-05-007-030-10-00-00-06, also cataloged as the 3300 XL NSv Proximity Transducer System, operates as a dedicated hardware component for vibration and position measurement within space-constrained fluid-film bearing machine monitoring networks.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The JNJ5300 NSv system utilizes specialized eddy-current probe scaling to provide a consistent 7.87 V/mm output, compatible with standard monitoring interfaces. Its geometry is optimized for shafts under 51 mm or flat targets under 15 mm, providing superior performance in restricted side-view conditions compared to legacy 3000 or 7000-series systems. The system maintains high-precision rotor dynamics data through optimized cross-talk suppression and a linear range of 1.5 mm. When performing field upgrades from legacy systems, the NSv architecture ensures signal consistency, allowing for reliable Keyphasor and speed measurements even in environments with high electromagnetic interference.

Frequently Asked Questions

Q: How does the NSv linear range compare to legacy 3000-series 190 systems?

A: The 3300 XL NSv system provides a linear range of 1.5 mm (60 mils), which exceeds the capabilities of the 3000-series 190 Transducer System.

Q: Is this system compatible with existing 3300 RAM monitoring infrastructure?

A: Yes. Upgrades from 3300 RAM systems can retain existing probe and extension cable hardware when paired with the 3300 XL NSv Proximitor Sensor. However, legacy 3000 or 7000-series upgrades require a complete component replacement.

Field Installation Guidelines

1. Probe Positioning: Due to the reduced sensing diameter, ensure the probe tip is strictly centered. Misalignment can lead to signal non-linearity when measuring on targets below 15 mm.

2. Threading Specification: Utilize the 1/4-28 UNF thread mounting strictly according to the specified case length. Over-insertion may cause mechanical interference with rotating components.

3. Connector Maintenance: Ensure the miniature coaxial connectors are kept dry and free of particulate contamination, as impedance changes at the connection point directly affect the 7.87 V/mm scale factor.

4. Grounding: Follow standard TSI grounding practices, ensuring that the sensor housing and cable shields are properly terminated to minimize common-mode noise.
