Bently Nevada TK-3G 177314-02 Air Driven

Description

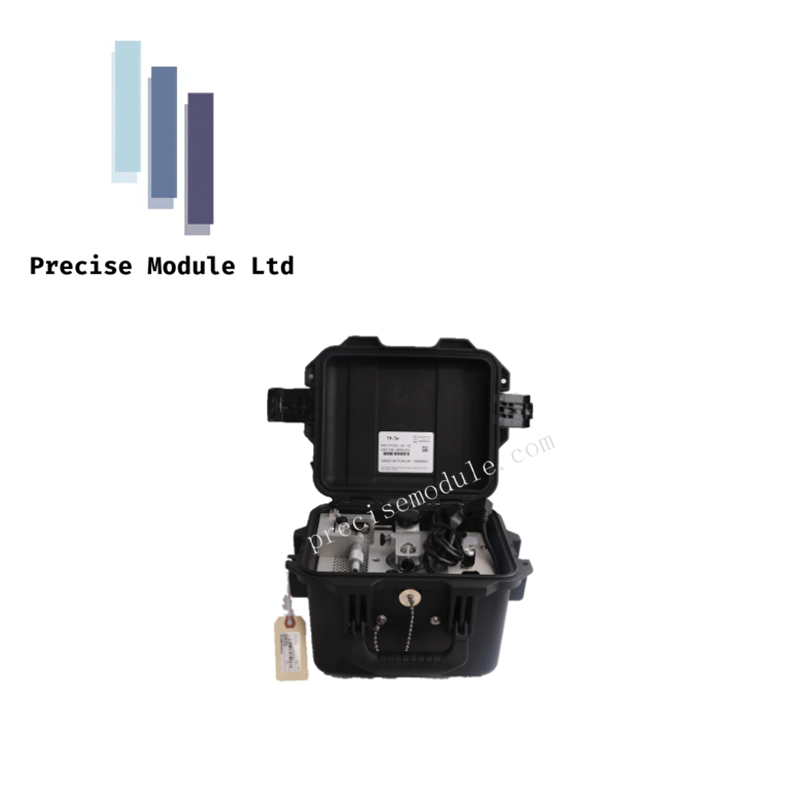

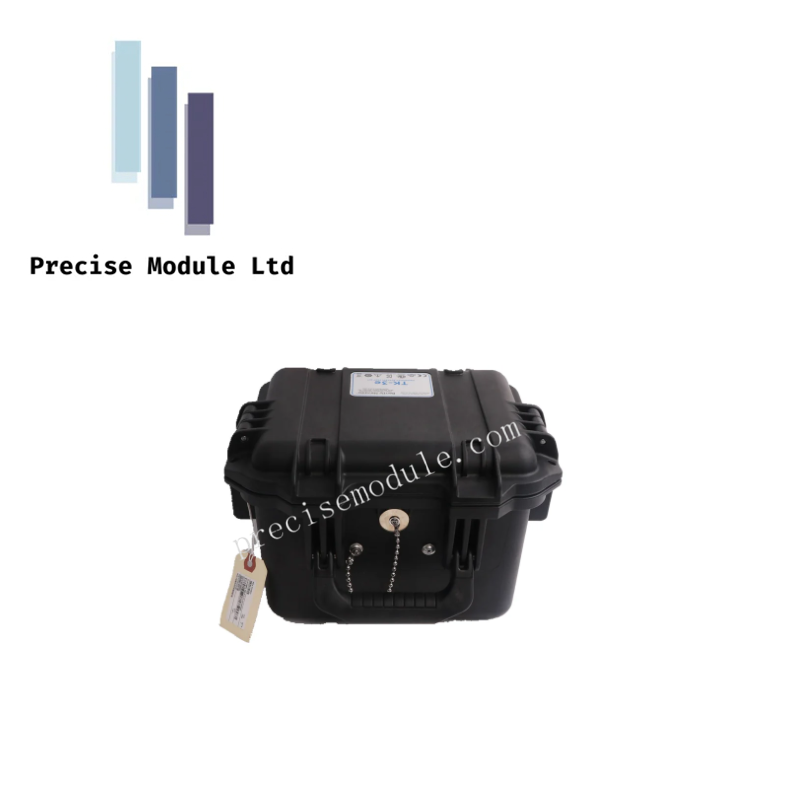

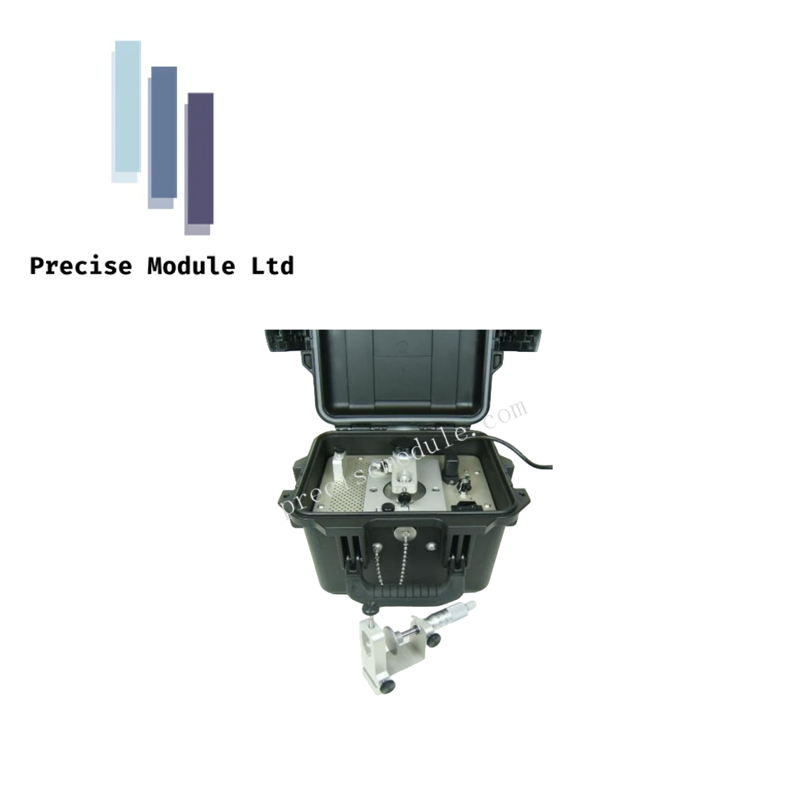

The TK-3G 177314-02 from Bently Nevada is a precision air-driven calibration kit engineered for proximity probe system testing. It ensures accurate vibration amplitude and phase calibration, especially in rotating machinery such as turbines and compressors.

Specifications

• Model Number: TK-3G 177314-02

• Manufacturer: Bently Nevada

• Product Type: Air-driven calibration kit

• Power Requirement: 90 psi (6.2 bar) compressed air

• Maximum Speed: 0 to 5000 cpm ±1000 cpm

• Vibration Amplitude Range: 50 µm to 254 µm (2 to 10 mils) peak-to-peak

• Spindle Micrometer Range: 0 to 25.4 mm (0 to 1000 mils)

• Probe Diameter Compatibility: 5 mm to 19 mm (0.197 in to 0.75 in)

• Target Material: AISI 4140 alloy steel

• Humidity Resistance: 95% non-condensing

• Exposure Rating: IP54 when enclosure is closed

• Operational Temperature: 0°C to 54°C (32°F to 130°F)

• Storage Temperature: -18°C to 65°C (0°F to 150°F)

• Dimensions: 19.5 cm × 29.9 cm × 24.8 cm

• Weight: 5.22 kg (shipping weight approx. 8 kg)

• Warranty: 12 months

• Country of Origin: USA

Features

• Multi-Probe Calibration: Supports up to three channels for simultaneous testing

• High Precision Control: Micrometer and amplitude settings allow fine-tuned calibration

• Air-Driven Mechanism: Delivers smooth and consistent vibration simulation

• Durable Construction: Built with industrial-grade materials for long-term reliability

• Environmental Protection: IP54-rated enclosure suitable for field conditions

• Wide Compatibility: Works with various proximity probes and monitoring systems

• Portable Design: Compact and rugged for on-site calibration tasks

• Diagnostic Accuracy: Enables reliable fault detection and vibration analysis

• User-Friendly Interface: Simplifies setup and operation for maintenance teams

• Field Adjustability: Conversion factors can be modified for specific applications
