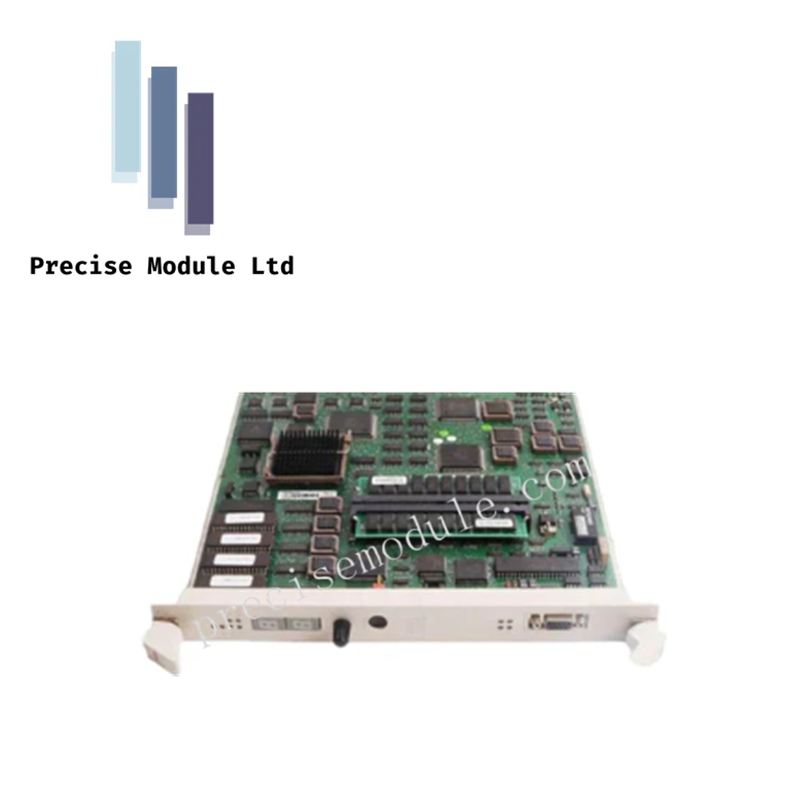

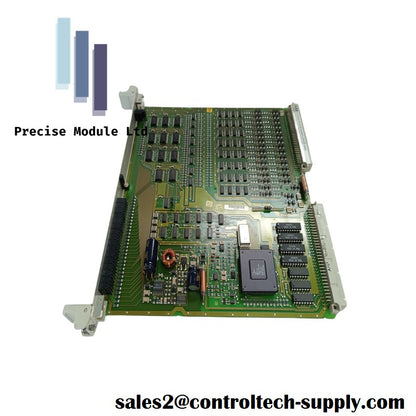

Control Module ABB HESG324087R2AE2 Series Signal Processor

Product Overview

The HESG324087R2AE2 is the high-performance command core of the ABB REG216 generator protection system. Engineered to function as a centralized processing hub, this module orchestrates the complex flow of data between input transformer units, auxiliary relay outputs, and high-level communication networks. It is the primary engine for executing sophisticated protection logic, managing fault signal trajectories, and ensuring synchronized interfacing with SCADA or Distributed Control Systems (DCS). Designed for the rigorous demands of power generation and substation environments, the HESG324087R2AE2 provides the computational reliability required to identify electrical anomalies and trigger corrective actions in milliseconds.

Technical Specifications

• Product Identification: HESG324087R2AE2

• Series Architecture: ABB REG216 Numerical Protection

• Functional Role: Central Processing / System Interface Unit

• Environmental Protection: IP30 (Standard protection against solid objects)

• Thermal Operating Range: -25°C to +55°C (-13°F to +131°F)

• Signal Coordination: Multi-channel handling for synchronized I/O processing

• Physical Footprint: 280 mm x 180 mm x 81 mm

• Net Weight: 2.5 kg

• Mounting Compatibility: Standard DIN rail or panel-mount configurations

• Logic Execution: High-speed digital processing for differential and backup protection

• Communication Support: Seamless integration with industrial bus modules and supervisory layers

Advanced Protection and Control Capabilities

As the "brain" of a protection rack, the HESG324087R2AE2 is indispensable for high-stakes applications such as gas-fired power stations and large-scale industrial microgrids. It doesn't just pass signals; it analyzes digitized current and voltage vectors to perform "Generator Differential Protection." When a fault is detected, the module coordinates the simultaneous triggering of multiple trip outputs while logging the event for post-fault analysis. Its modern digital architecture makes it a premier choice for "Lifecycle Extension" or retrofit projects, allowing facilities to replace mechanical or early electronic relays with a compact, network-ready solution that enhances overall system visibility.
