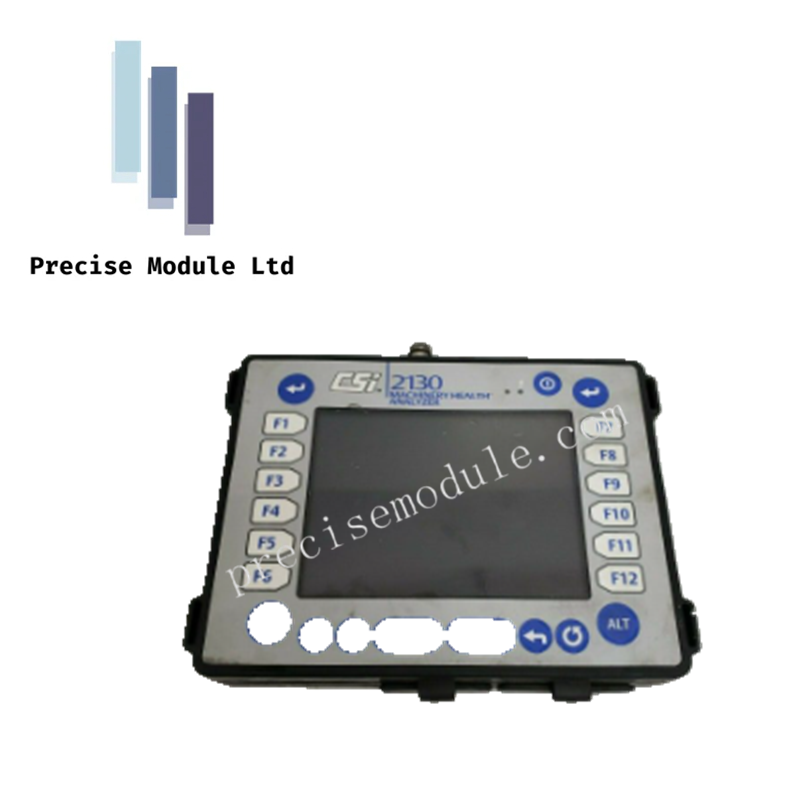

CSI 2130 Machinery Health Analyzer

Technical Overview

The CSI 2130 is a premier portable diagnostic terminal engineered for the high-resolution assessment of rotating equipment. As a cornerstone of the Emerson AMS suite, this handheld analyzer integrates advanced vibration signature analysis with cross-channel diagnostics to identify mechanical imbalances, bearing wear, and structural resonance before they lead to unplanned downtime. The CSI 2130 is designed for rapid data collection, allowing maintenance teams to perform comprehensive route-based inspections or deep-dive transient analysis on critical assets.

Beyond simple vibration metering, the CSI 2130 features specialized modules for dynamic balancing, motor diagnostics, and laser shaft alignment. Its dual-channel capability enables phase measurements and orbit plots, providing a holistic view of machinery health. Data captured in the field seamlessly integrates with AMS Suite software for long-term trend analysis and automated reporting.

Detailed Technical Specifications

• Diagnostic Modes: Full-spectrum vibration analysis, cross-channel phase analysis, and transient event capture.

• Specialized Functions: On-site dynamic balancing for rotating masses and integrated motor condition monitoring.

• Alignment Support: Optional laser shaft alignment interface for sub-millimeter precision.

• Data Management: High-speed data synchronization with AMS Device Manager and AMS Suite software.

• Environmental Tolerance: Operational range from -10°C to +50°C (14°F to 122°F).

• Safety Options: Available in standard and optional explosion-proof configurations for hazardous area deployment.

• Portability: Ergonomic handheld design with a net weight of approximately 816g.

• Manufacturing Origin: USA.

Application and Field Utility

The CSI 2130 is the industry standard for predictive maintenance (PdM) programs in power generation, oil and gas, and manufacturing. Its ability to detect transient anomalies makes it invaluable during machine startup and coast-down phases. The analyzer's ruggedized exterior and high-visibility screen ensure it remains functional in the harsh conditions of industrial plant floors, while its intuitive interface allows technicians to perform complex root-cause analysis without requiring a stationary workstation.
