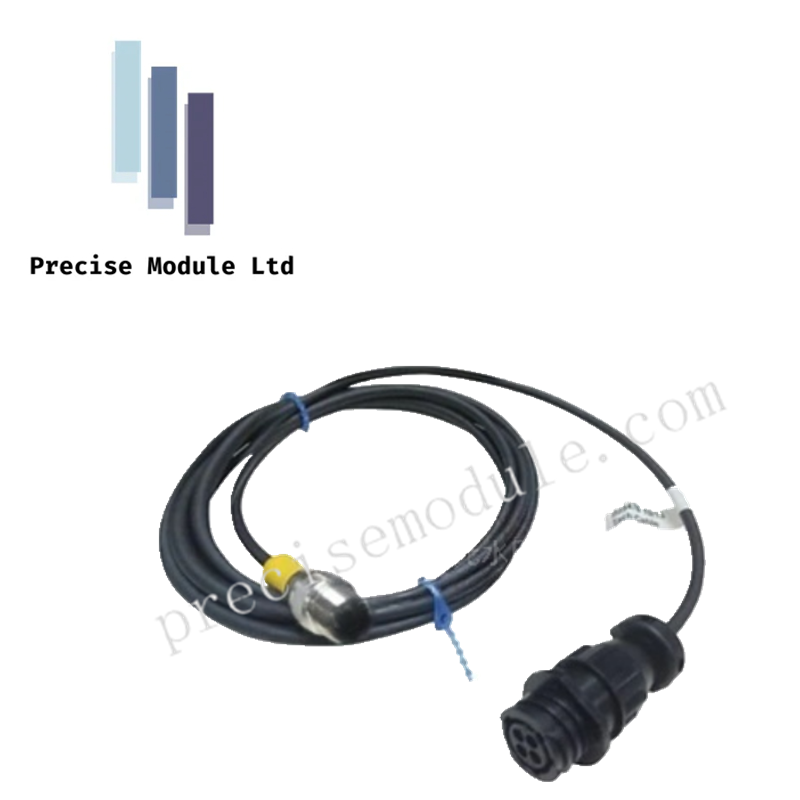

CSI CB103-C555-005-5-D2C Vibration Monitoring Cable

Technical Overview

The CB103-C555-005-5-D2C is a high-performance signal transmission cable engineered by CTC for use with Emerson AMS CSI 2130 and 2140 Machinery Health Analyzers. This specialized interconnect is designed for the rigorous demands of portable vibration analysis, specifically serving as the 'A' channel acceleration input. By utilizing low-capacitance shielded conductors, the cable ensures that high-frequency vibration data is transmitted from the sensor to the analyzer without signal degradation or electromagnetic interference.

Constructed with a heavy-duty black Polyurethane (PUR) jacket, the CB103-C555-005-5-D2C remains flexible across a vast temperature gradient while providing superior resistance to industrial oils, chemicals, and mechanical abrasion. The connector interface features a robust M12 5-pin design with a high-strength polycarbonate insert, ensuring a secure and repeatable connection during field routes.

Detailed Technical Specifications

• System Interoperability: Fully compatible with Emerson CSI 2130 and 2140 portable diagnostic units.

• Input Configuration: Dedicated for Channel 'A' acceleration measurements.

• Connector Architecture: M12, 5-pin industrial connector with durable polycarbonate internal housing.

• Wiring Pinout:

• Pin 2: Signal/Power (+)

• Pin 5: Common (-)

• Cable Construction:

• Conductors: 2-conductor, AWG 20 wire gauge for low resistance.

• Shielding: Integrated braided shield with a dedicated drain wire for EMI/RFI suppression.

• Jacket: Industrial-grade Black Polyurethane (PUR).

• Electrical Performance:

• Capacitance: Nominal 49 pF/ft to maintain signal clarity at high frequencies.

• Voltage Rating: 1000 VDC.

• Compliance: UL AWM 10118 (80°C, 300V) and UL 1581 Horizontal Flame resistant.

• Environmental Tolerance:

• Temperature Range: Extreme resilience from -76°F (-60°C) to +250°F (+121°C).

• External Diameter: 0.245 in. (6 mm).

• Mass: 300g lightweight design for portable field use.

• Manufacturing Origin: USA.

Application and Field Maintenance

The CB103-C555-005-5-D2C is the essential link for maintenance professionals performing route-based vibration collection. Its extreme cold and heat tolerance make it suitable for use in both cryogenic applications and high-heat steam environments. To ensure long-term reliability, the M12 connector should be kept free of metallic debris, and the polyurethane jacket should be inspected periodically for deep cuts that could compromise the internal shielding.
