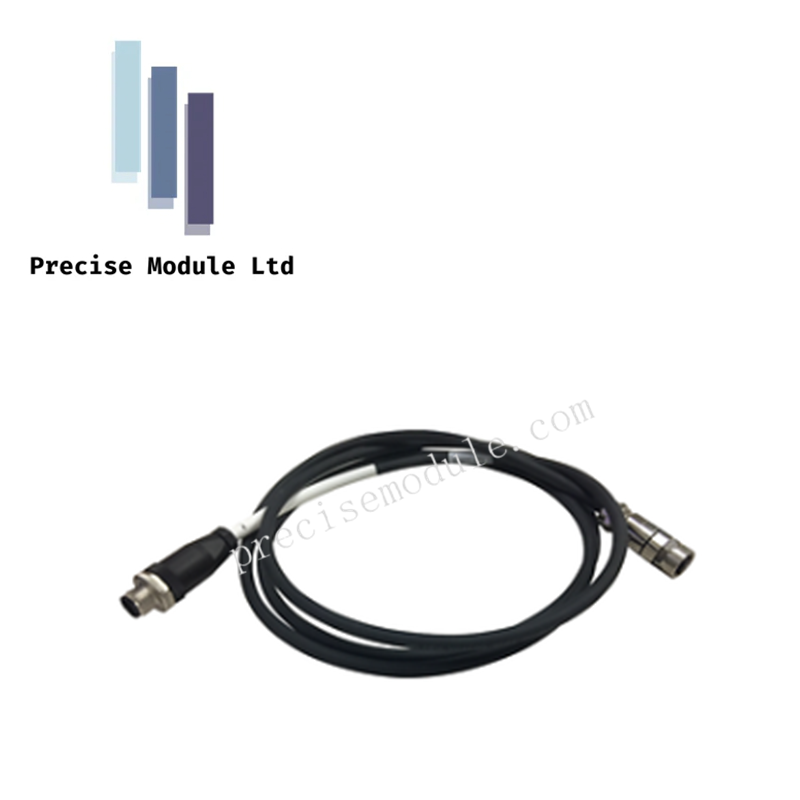

CSI D25777 Vibration Analysis Cable Assembly

Technical Overview

The D25777 is a specialized, high-integrity signal transmission assembly engineered by Emerson CSI for the AMS 2140 Machinery Health Analyzer. This dual-purpose cable is a critical interface for predictive maintenance professionals, facilitating the simultaneous acquisition of vibration data and tachometer signals. By integrating specialized connectors for both acceleration and speed inputs, the D25777 enables the analyzer to perform phase-locked measurements and order tracking, which are essential for diagnosing complex faults in rotating equipment.

Constructed for field reliability, the cable utilizes a high-performance twisted-pair architecture to mitigate electromagnetic interference (EMI). The lightweight polyurethane jacket is specifically selected for its resilience against industrial lubricants and its flexibility in varying climates, ensuring that the D25777 remains easy to manage during intensive data collection routes.

Detailed Technical Specifications

• System Interoperability: Native design for the Emerson AMS 2140 machinery health analyzer.

• Cable Architecture: 2-conductor, twisted, and shielded pair for superior signal purity.

• Interface Connectors:

• Connector 1: 8-pin M12 with a 303-grade stainless steel shell (optimized for tachometer/speed input).

• Connector 2: 4-pin LEMO® with a chrome-plated copper shell (optimized for acceleration/vibration input).

• Physical Dimensions:

• Standard Length: 6 feet (approx. 1.8 meters).

• Outer Diameter: 0.175 in. (4.5 mm).

• Material Integrity: Lightweight black Polyurethane (PUR) jacket.

• Thermal Performance: Maximum operating temperature rated up to 250°F (121°C).

• Mass: 200g optimized for portable handheld operation.

• Manufacturing Origin: USA.

Application and Field Utility

The D25777 cable is the preferred interconnect for advanced machinery diagnostics where correlating vibration with shaft speed is necessary. It is commonly used in power plants, refineries, and manufacturing facilities to monitor turbines, pumps, and fans. The robust 303 stainless steel and chrome-plated connectors provide the mechanical durability required for frequent insertion and removal cycles, while the shielded twisted-pair design ensures that low-voltage sensor signals reach the AMS 2140 without noise-induced distortion.
