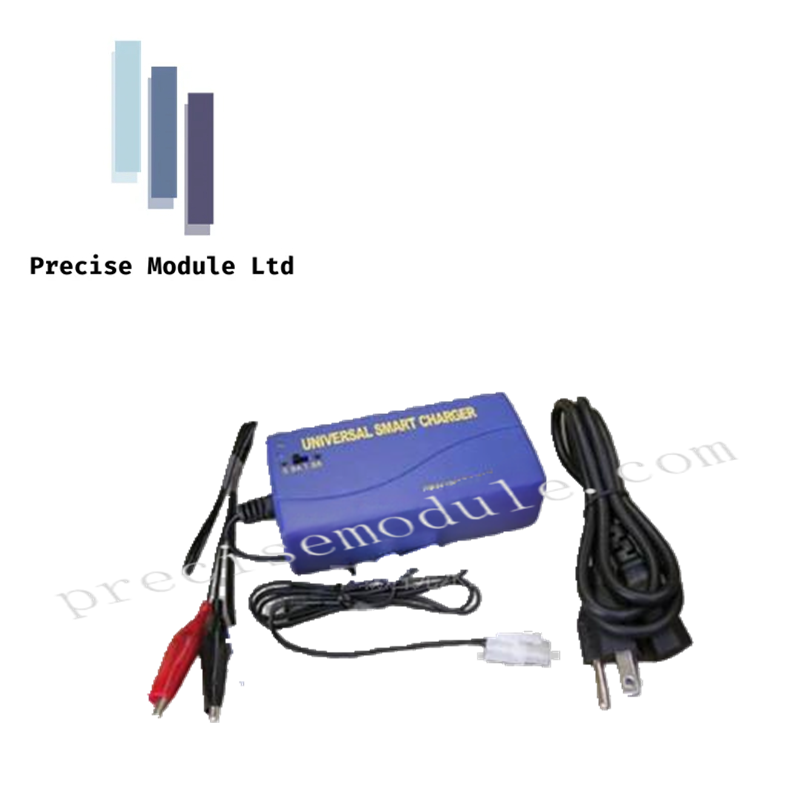

CSI H01501020-US-1 Multi-Current Universal Fast Charger

Technical Overview

The H01501020-US-1 is a high-efficiency, universal rapid charging station engineered for nickel-metal hydride (NiMH) and nickel-cadmium (NiCd) battery chemistry. Utilizing advanced pulse and 10% negative pulse technology, this charger optimizes the chemical reaction within the cells, reducing heat buildup and significantly extending overall battery lifecycle. Designed for both industrial and high-end hobbyist applications—including RC vehicles, aircraft, and airsoft equipment—the H01501020-US-1 provides a reliable power solution for packs ranging from 4.8V to 10.8V.

Equipped with smart -dV (negative delta V) peak detection, the unit automatically terminates the charging cycle upon reaching full capacity, preventing overcharge and potential cell damage. Its wide-range input voltage support makes it a versatile tool for international deployment, ensuring consistent performance regardless of local power grid standards.

Detailed Technical Specifications

• Voltage Compatibility: Supports 4.8V to 10.8V NiMH and NiCd battery packs.

• Input Power: Universal 120V to 240V AC, enabling worldwide operation.

• Charge Current Selection: User-selectable 1A or 2A output for tailored charging speeds.

• Advanced Pulse Logic: Features pulse charging with a 10% negative pulse for superior cell conditioning.

• Safety Termination: Automatic cut-off via high-precision -dV peak detection.

• Thermal Constraints: Recommended for operation in ambient temperatures below 40°C.

• Interface Connectors:

• Standard Tamiya male connector.

• Heavy-duty alligator clips for custom terminal access.

• Mini Tamiya adapter for compact battery interfaces.

• Operational Efficiency:

• 1800mAh packs fully charged in approximately 60 minutes.

• 3000mAh packs fully charged in approximately 90 minutes.

• Physical Profile: 5.5" (L) x 2.5" (W) x 1.5" (H).

• Mass: 476g (1.05 lbs).

• Manufacturing Origin: USA.

Application and Field Versatility

The H01501020-US-1 is the preferred choice for users requiring a "set-and-forget" charging solution that doesn't compromise on battery health. Its compact form factor and multi-current toggle allow it to handle everything from small receiver packs to large high-capacity drive batteries. The inclusion of multiple adapter types ensures immediate compatibility with various industrial and hobbyist wiring standards right out of the box.
