GE 342A4903ADP221 | GE | Mark VIe Control System Configured Assembly

Overview

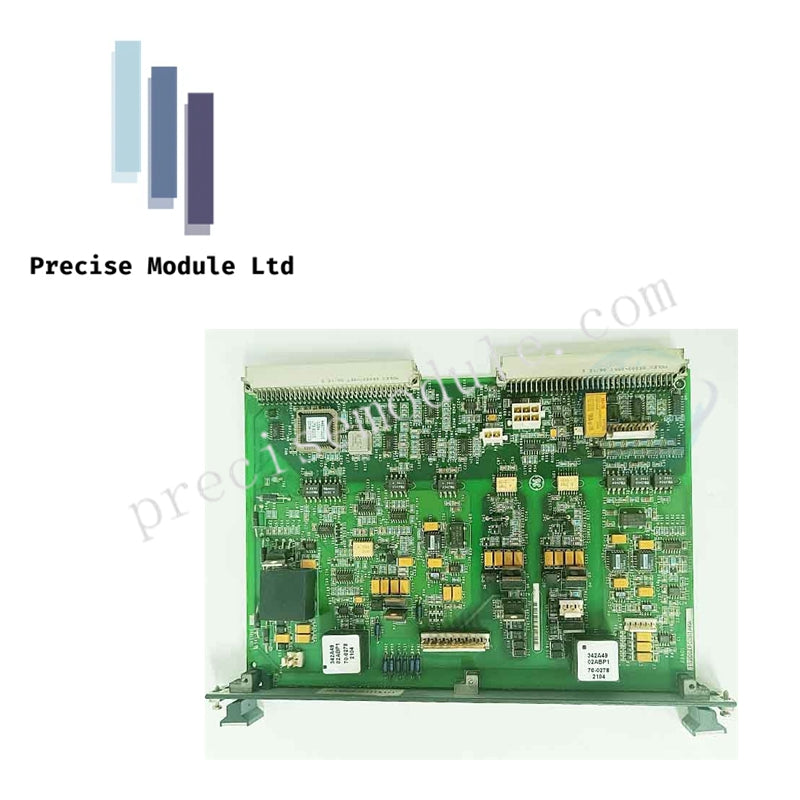

The GE 342A4903ADP221 is a high-performance, pre-configured assembly designed for seamless integration within the Mark VIe Control System. This unit, specifically tailored for Discrete I/O and Specialized Power Distribution applications, combines rugged hardware components—such as IS220 I/O Packs and IS200 Terminal Boards—into one ready-to-install package. It connects field devices to the Mark VIe controller via Ionet (Ethernet), making it ideal for turbine control systems requiring robust, real-time communication.

Key Features

• Model: GE 342A4903ADP221

• Part Number: 342A4903ADP221

• Control System Compatibility: GE Mark VIe and Mark VIeS (Safety)

• Network Interface: Dual 100 Mbps Ethernet (Ionet) ports

• Mounting Options: Standard cabinet back-panel or DIN-rail

• Form Factor: Compact vertical design for optimal space and convection cooling

Technical Specifications

Component Breakdown

The 342A4903ADP221 typically includes:

• IS220 I/O Packs: Core logic components for signal processing and communication

• IS200 Terminal Board: Passive PCB for field wire termination

• Base Plate/Carrier: Structural frame for module assembly

• Electronic ID Chip: Stores module configuration data for identification via ToolboxST

System Integration

• Control Topology: Supports Simplex, Dual, or Triple Modular Redundancy (TMR) configurations depending on the internal component setup.

• Networking: Facilitates real-time data synchronization across high-speed Ethernet interfaces, ensuring seamless communication within the Mark VIe network.

Applications

The GE 342A4903ADP221 is designed for industrial automation applications, specifically in turbine control systems. It is used to:

• Monitor switch states

• Drive relays

• Manage power to solenoids

• Serve as an interface node between field devices and the Mark VIe Controller

Frequently Asked Questions (FAQ)

Q1: Is the GE 342A4903ADP221 compatible with older Mark VI systems?

• The 342A4903ADP221 is specifically designed for Mark VIe and Mark VIeS systems, offering enhanced communication and redundancy features. For older Mark VI systems, compatibility may require adjustments or additional interfaces.

Q2: How does the dual power input feature work?

• The dual power input ensures uninterrupted operation even if one power supply fails. This feature is critical for applications that require high reliability and continuous operation, such as turbine control systems.

Q3: What type of environmental conditions can the 342A4903ADP221 withstand?

• This assembly is built to endure extreme environmental conditions, including a wide operating temperature range of -30°C to +65°C and high vibration, commonly found in industrial and power plant settings.
