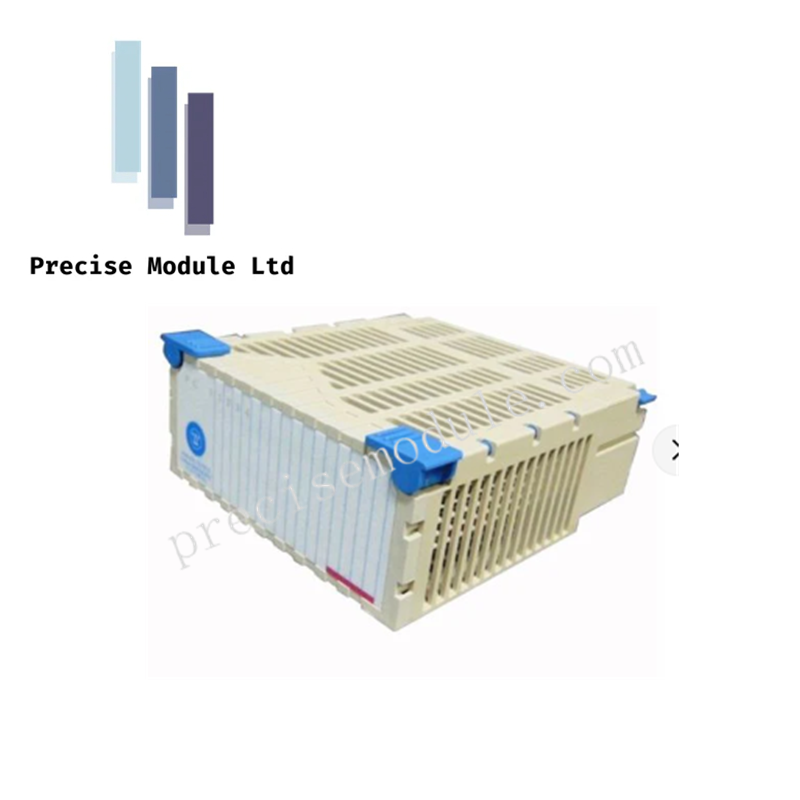

Emerson 1C31129G03 | Ovation Relay Output Module for DCS

Product Description

The Emerson Ovation 1C31129G03 is a robust Relay Output Module designed for high-reliability switching in Emerson Ovation™ Distributed Control Systems (DCS). Engineered to interface low-voltage logic signals with high-power field devices, this module provides complete galvanic isolation via electromechanical relays, making it ideal for applications where solid-state outputs are insufficient.

This G03 revision features an 8-channel layout capable of switching significant AC and DC loads while maintaining precise and fast response. Its modular, hot-swappable architecture allows replacement or maintenance without disrupting field wiring or the overall system operation.

Key Features

• High-Power Switching: Handles up to 230V AC / 125V DC, suitable for motors, solenoids, and large annunciators.

• Rapid Relay Response: Sub-10 millisecond actuation ensures timing-critical operations are met.

• Full Isolation: Provides 1000–1500V AC/DC dielectric strength between field and logic circuits, protecting the controller.

• Diagnostic Feedback: Integrated LED indicators display channel status, and the module communicates faults or failures back to the DCS controller.

• Modular, Hot-Swappable Design: Reduces downtime by allowing maintenance without removing the base or disconnecting field wiring.

• Rugged Industrial Build: Operates reliably in ambient temperatures from -20°C to +60°C.

• Energy Efficient: Consumes minimal power, reducing heat buildup in the I/O cabinet.

Technical Specifications

Applications

The 1C31129G03 module is ideal for industrial control applications where high-current switching and electrical isolation are critical. Common use cases include controlling motor starters, solenoid valves, and large alarm annunciators in power plants, water treatment facilities, and other industrial sites using Emerson Ovation DCS.

FAQ

Q: How many channels does the module provide?
A: It supports 8 independent relay channels.

Q: What voltage and current can each channel switch?
A: Each channel handles up to 230V AC or 125V DC at 2A.

Q: Is the module hot-swappable?
A: Yes, it can be replaced without interrupting field wiring or system operation.

Q: How fast do the relays respond?
A: Relay actuation occurs in less than 10 milliseconds.

Q: Does it protect the DCS controller from field-side surges?
A: Yes, with 1000–1500V AC/DC isolation between channels and logic.
