Product Title:

Emerson 5X00225G01 | Serial Link Controller | Ovation DCS Communication Interface

Product Description:

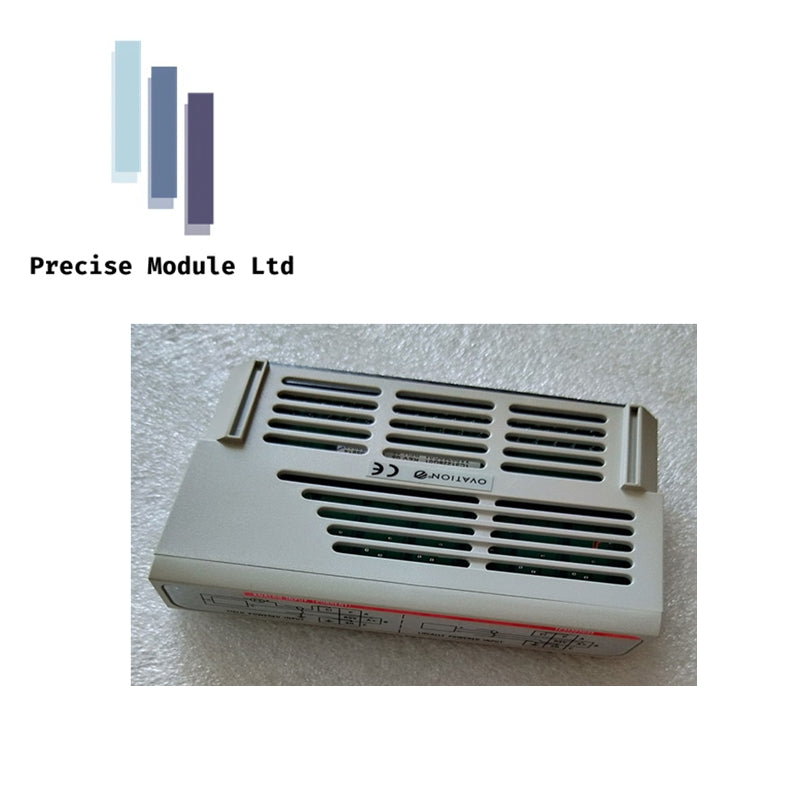

The Emerson 5X00225G01 is a Serial Link Controller (SLC) module, also known as a Media Access Control (MAC) or UCN Bridge. It serves as a crucial communication interface within the Ovation Distributed Control System (DCS). Its primary function is to manage high-speed data exchanges between the Ovation Controller and serial-based I/O devices or remote field devices.

This module is integral in environments transitioning from older Westinghouse WDPF systems to modern Emerson Ovation platforms. It ensures seamless communication across I/O modules and the main processor, enabling real-time data transmission without latency. Designed with mission-critical reliability in mind, the 5X00225G01 boasts advanced EMI shielding and high-speed internal logic, ensuring process variables are updated efficiently and accurately.

Key Features and Specifications:

1. High-Speed I/O Scanning

The 5X00225G01 controls the cyclic scanning of both digital and analog I/O modules, ensuring timely and accurate data updates. This functionality is especially vital in systems that require stable PID control with strict timing constraints, typically ranging from 10ms to 100ms.

2. Redundancy for System Reliability

To enhance system reliability, the 5X00225G01 is often installed in redundant pairs. This configuration ensures that if the primary controller fails, the backup module takes over seamlessly, with bumpless transfer. The system continues to operate without interruption, providing uninterrupted data communication between the Ovation network and field devices.

3. Deterministic Communication

Utilizing deterministic protocols, the module ensures predictable and constant data transmission times. This predictability is crucial for applications that require exact synchronization, such as safety interlocks or turbine protection logic where delays could cause equipment damage.

4. Self-Diagnostics for Enhanced Maintenance

The 5X00225G01 includes advanced self-diagnostic capabilities that perform continuous loopback tests and Cyclic Redundancy Checks (CRC) on all data packets. If an error is detected, the module immediately provides an error code to the Ovation Diagnostics Monitor, helping to quickly identify and troubleshoot issues.

5. Seamless Integration for Legacy Systems

In legacy system integration, the 5X00225G01 acts as a bridge between Westinghouse WDPF and modern Emerson Ovation DCS platforms, allowing smooth data transmission across mixed systems. This is essential for plants undergoing upgrades without full system replacements.

Technical Specifications:

Key Benefits:

- Fast and Reliable I/O Scanning

The 5X00225G01 enables cyclic scanning for real-time data updates, meeting the timing requirements of PID control systems. This results in faster response times for real-time process monitoring and control.

- Redundancy for Uninterrupted Operation

Equipped with redundant support, this module provides bumpless transfer between controllers. If one controller fails, the backup automatically takes over, ensuring no downtime in critical applications.

- Deterministic and Predictable Data Transmission

The module offers deterministic communication, ensuring that data transmission times are consistent and predictable. This is essential for safety-critical applications like interlocks and turbine control.

- Continuous Diagnostics for Preventative Maintenance

With built-in self-diagnostics, the 5X00225G01 provides real-time feedback on the health of the system, helping operators identify issues before they lead to failures.

Applications:

The Emerson 5X00225G01 is commonly used in a wide range of applications requiring high-speed, reliable communication for distributed control systems. Notable use cases include:

• Power Plants: For high-performance communication between Ovation Controllers and remote I/O systems.

• Legacy System Upgrades: Bridging communication between Westinghouse WDPF systems and Emerson Ovation DCS during plant upgrades.

• Manufacturing Plants: For real-time data exchanges between controllers and field devices in automated manufacturing processes.

• Oil & Gas: Ensuring accurate, low-latency communication for process control and monitoring in harsh industrial environments.

Frequently Asked Questions (FAQ):

Q: What does "bumpless transfer" mean in the context of the 5X00225G01?

A: Bumpless transfer means that in a redundant configuration, if the primary module fails, the backup module seamlessly takes over without causing any interruption to the system’s communication or operation.

Q: How does the 5X00225G01 handle communication errors?

A: The 5X00225G01 continuously performs loopback tests and CRC checks on all data packets. If a communication error is detected, an error code is generated and reported to the Ovation Diagnostics Monitor for quick resolution.

Q: Can the 5X00225G01 be used for upgrading legacy systems?

A: Yes, the 5X00225G01 is designed to integrate older Westinghouse WDPF systems with the newer Emerson Ovation DCS, allowing smooth communication between legacy and modern systems during upgrades.
