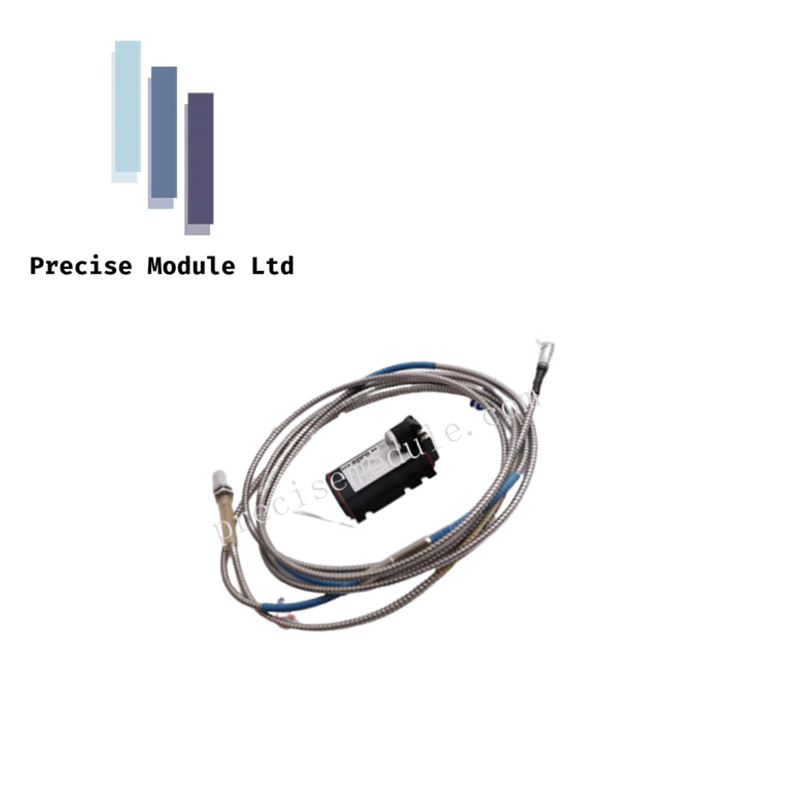

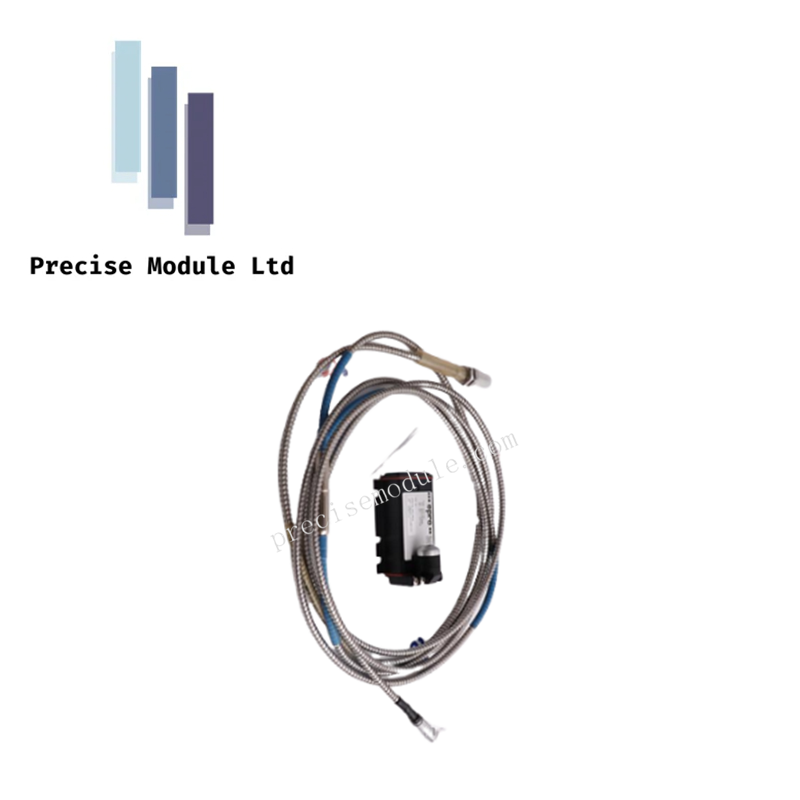

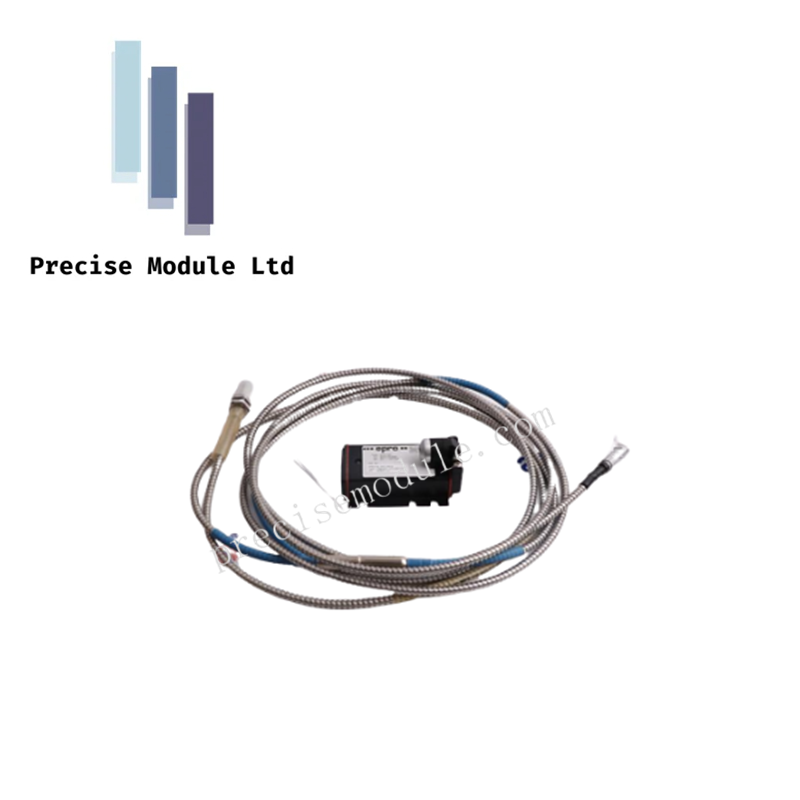

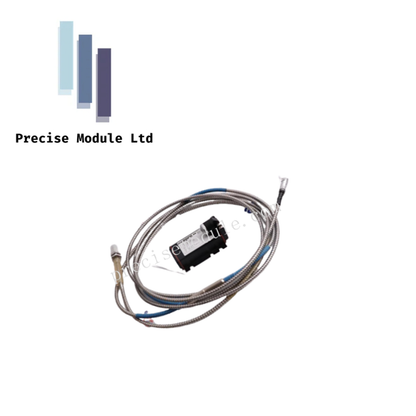

Emerson Epro PR6423/010-010+C0N021 Eddy Current Displacement Sensor

Description

The PR6423/010-010+C0N021 eddy current displacement sensor from Emerson Epro is built for non-contact measurement in critical turbomachinery applications. It monitors displacement, position, eccentricity, and speed with high precision and durability.

Specifications

• Manufacturer: Emerson

• Part Number: PR6423/010-010+C0N021

• Product Type: Eddy current displacement transducer

• Measuring Range:

  • Static: ±1.0 mm (±0.04 in)

  • Dynamic: 0 to 500 µm (0 to 20 mils)

• Sensitivity: 8 V/mm (203.2 mV/mil)

• Target Material: Electrically conducting steel

• Operating Temperature: –35°C to +180°C (–31°F to +356°F)

• Protection Class: IP66, IEC 60529

• Sensor Tip Diameter: 8 mm

• Thread Options: M10×1 or 3/8-24 UNF

• Cable Length: 1 meter (3.28 ft)

• Weight: Approximately 100 grams (3.53 oz)

Features

• Non-Contact Measurement: Captures displacement and vibration without surface contact

• High Sensitivity Output: Delivers accurate voltage signals proportional to movement

• Wide Temperature Range: Operates reliably up to 180°C in harsh environments

• Compact Sensor Tip: 8 mm diameter fits tight installation spaces

• Threaded Mounting Options: Supports M10×1 and 3/8-24 UNF for flexible setup

• IP66 Protection: Sealed against dust and moisture for industrial durability

• Steel Target Compatibility: Optimized for conductive materials like AISI 4140

• Lightweight Design: Weighs only 100 grams for easy handling

• System Integration: Works with Epro CON021 connector and monitoring platforms

• Field-Proven Reliability: Trusted in turbines, compressors, and rotating equipment
