Emerson

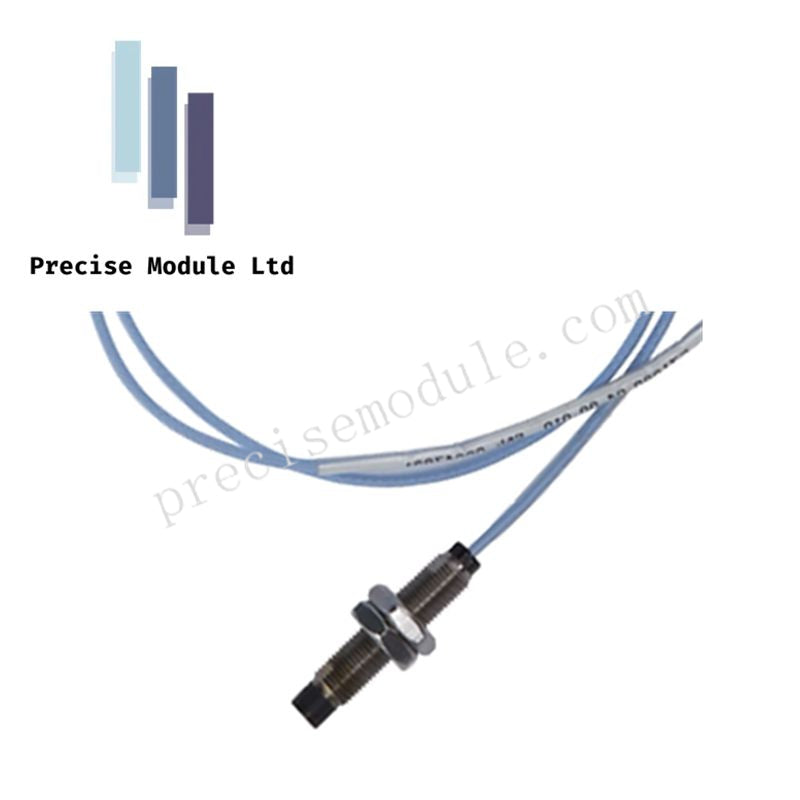

Product DescriptionEZ1080
8 mm ,

Model Analysis

• EZ1080 : 8 mm sensor

• 05 : Standard

• 00 : No thread

• 010 : 1.0 m cable

Technical Specifications

Measuring performance

• Linear measurement range: 2

• Initial air gap: 0.5 mm (20 m

• Incremental scale factor

  • API Standard: 7.87

  • ISO standard: 8

• Straightness deviation (DSL): ±0.02

Target Requirements

• Minimum target size: 14 mm (0.55 in) , recommended ≥20 mm

• Minimum shaft diameter: 20 mm (0.7 , recommended ≥25

• Compatible

  • 42CrMo4

  • C35

  • 34C

  • S235JR

  • Other ferromagnetic steel

Environmental and physical properties

• Operating temperature:

  • Sensor (including cable): -35°C ~ +180°

  • Cable and connector: -35°C ~ +150

• Protection level: IP67 (standard)

• Rated pressure: 1000

• Weight: Approx. 100 g (including 1 m cable)

• Thread size: M10×1
