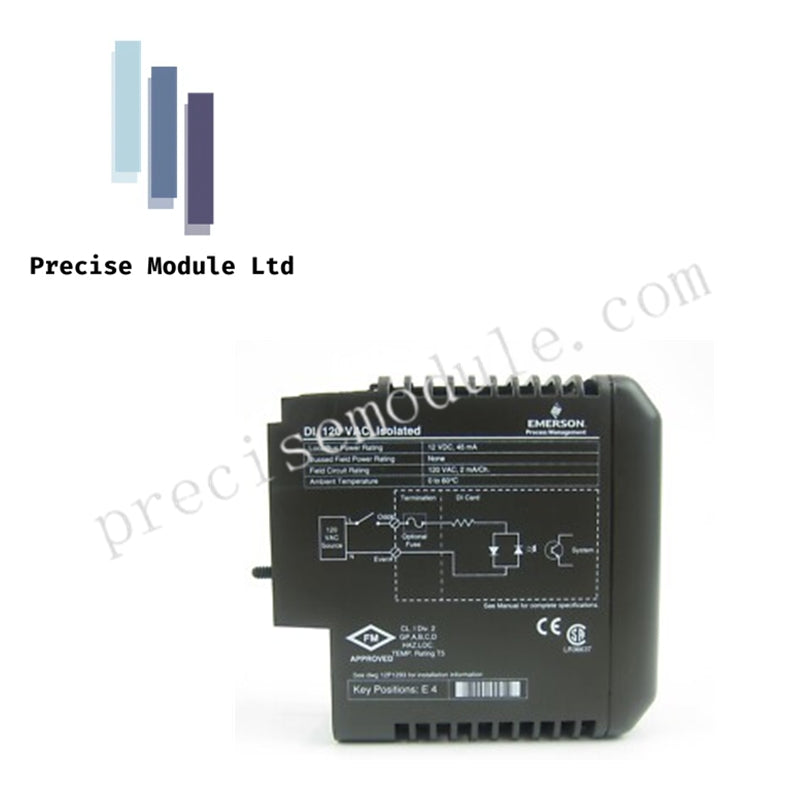

Emerson KJ3001X1-BC1 | 8-Channel 120 VAC Isolated Discrete Input Module for DeltaV

Product Title:
Emerson KJ3001X1-BC1 | 8-Channel 120 VAC Discrete Input Module for DeltaV™ M-Series

Product Description:

The Emerson KJ3001X1-BC1 is an 8-channel, 120 VAC isolated discrete input (DI) module designed for the DeltaV™ M-Series Traditional I/O subsystem. This module provides an interface for high-voltage field signals, such as those from limit switches, push buttons, or motor starters, into the DeltaV control system. With its optically isolated channels, it ensures reliable operation even in environments where different power sources or electrical isolation for safety are needed.

The KJ3001X1-BC1 module is essential for applications where protection from electrical noise and ground loops is critical. It offers superior signal integrity and safety in industrial environments, and it can be hot-swapped for convenient maintenance without system shutdowns.

Key Features:

• Optically Isolated Channels:
  Each of the 8 channels is isolated, providing superior protection from ground loops and signal noise, which ensures reliable operation of the DeltaV system even in electrically noisy environments.

• 120 VAC Logic:
  The module is designed to handle 120 VAC signals, making it suitable for use with standard AC industrial control circuits.

• Plug-and-Play:
  As part of the DeltaV M-series, the KJ3001X1-BC1 is fully hot-swappable. This allows it to be inserted or removed under power in non-hazardous environments without affecting system operation.

• Visual Diagnostics:
  Features front-panel LEDs to show the status (ON/OFF) of each input channel and the overall health of the module, providing quick and easy diagnostics.

• Hardware Keying:
  Built-in hardware keying ensures the correct module is installed in its designated terminal block, preventing the wrong card type from being accidentally plugged into a terminal block wired for a different voltage.

Technical Specifications:

Why Choose the Emerson KJ3001X1-BC1?

• Enhanced Safety & Isolation:
  The optical isolation on each channel ensures the system is protected from electrical faults and noise, enhancing the safety and longevity of both the input devices and the control system.

• Hot-Swappable Design:
  Hot-swapping allows for easy maintenance without system shutdown, ensuring minimal disruption to operations.

• Efficient Diagnostics:
  The front-panel LEDs provide at-a-glance diagnostics, making it easy to monitor input status and troubleshoot any issues.

• Versatile & Reliable:
  With an input range of 90 to 132 VAC and a wide operating temperature range, this module can handle demanding industrial environments.

Application Areas:

• Industrial Automation:
  Used for interfacing high-voltage field signals, such as from limit switches, push buttons, or motor starters, into a DeltaV control system.

• Process Control Systems:
  Ideal for process control systems that require electrical isolation and protection from external noise and disturbances.

• Safety Systems:
  Perfect for applications where electrical isolation is a safety requirement, especially in environments with ground loop or voltage spikes risks.
