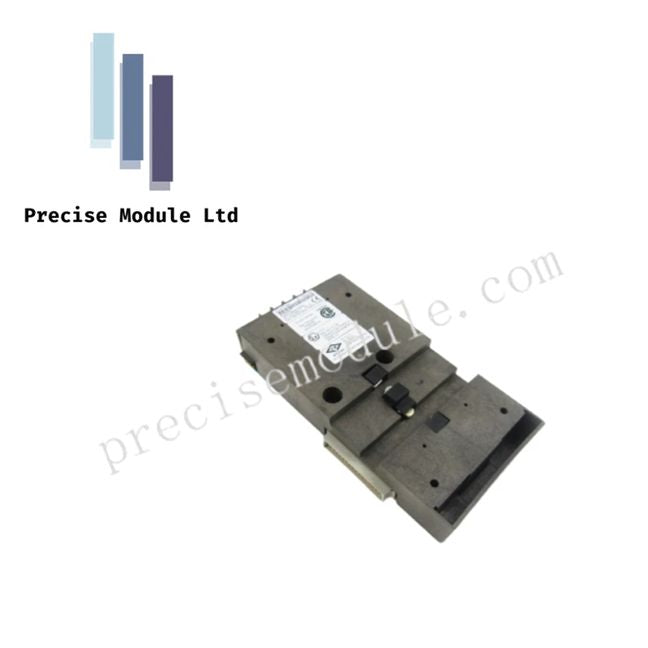

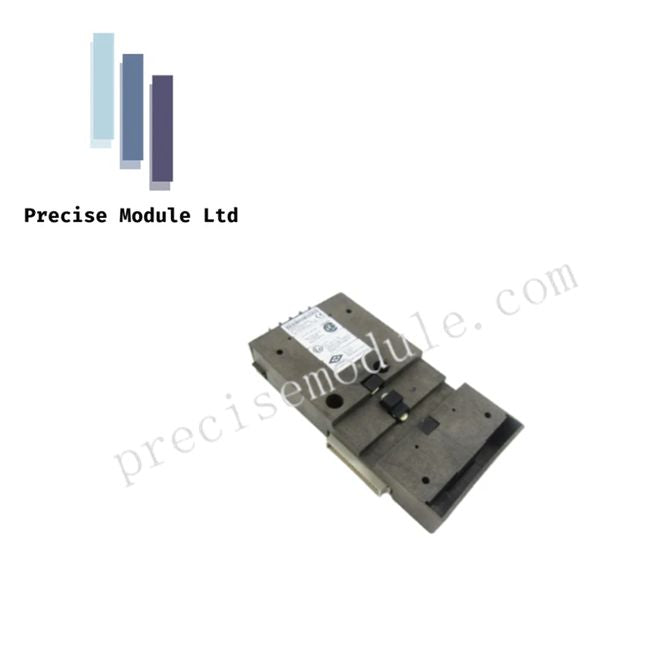

Emerson KJ4001X1-BA3 Power/Controller Carrier | DeltaV S-Series 8-Wide

Product Description

Overview

The Emerson KJ4001X1-BA3 is an S-Series 8-Wide Power/Controller Carrier designed for DeltaV™ Distributed Control Systems. It provides the physical infrastructure to mount controllers and power supplies while distributing power across the LocalBus. This carrier ensures system scalability, redundancy, and high-performance operation in industrial environments.

Key Features

Flexible System Integration
Supports a variety of DeltaV S-Series controllers and power modules, enabling a versatile platform that grows with your system requirements.

Redundant Power and Controllers
Accommodates dual power supplies and controllers in a redundant configuration, maintaining continuous operation if a component fails.

Hot-Swappable Module Slots
Modules can be inserted or removed without interrupting the system, simplifying maintenance and minimizing downtime.

Efficient Backplane Architecture
Integrated S-series horizontal bus eliminates complex wiring between modules, reducing installation time and improving reliability.

High-Current Distribution
Distributes 24 VDC power efficiently across a full row of I/O modules, supporting high-density configurations without voltage drops or thermal issues.

Mechanical Reliability
Robust interlocking mechanisms secure modules against vibration and mechanical shock, maintaining stable electrical connections.

Modular Scalability
The 8-wide carrier design allows straightforward connection to additional carriers via extenders such as the KJ1501X1-BC3, providing easy system expansion.

Technical Specifications

Applications

• Oil & Gas Process Control

• Chemical Manufacturing

• Power Generation Plants

• Pulp & Paper Facilities

• Water & Wastewater Treatment

FAQ

Q: Can modules be replaced without powering down the carrier?
A: Yes, the carrier supports hot-swappable modules in safe, non-hazardous conditions.

Q: How does this carrier handle high-density I/O?
A: Its high-current distribution and robust backplane architecture support a full row of I/O modules without voltage drops or overheating.

Q: What is the difference between KJ4001X1-BA3 and KJ4001X1-BA2?
A: The BA3 supports higher redundancy, improved hot-swappable capability, and enhanced backplane efficiency compared to the BA2.
