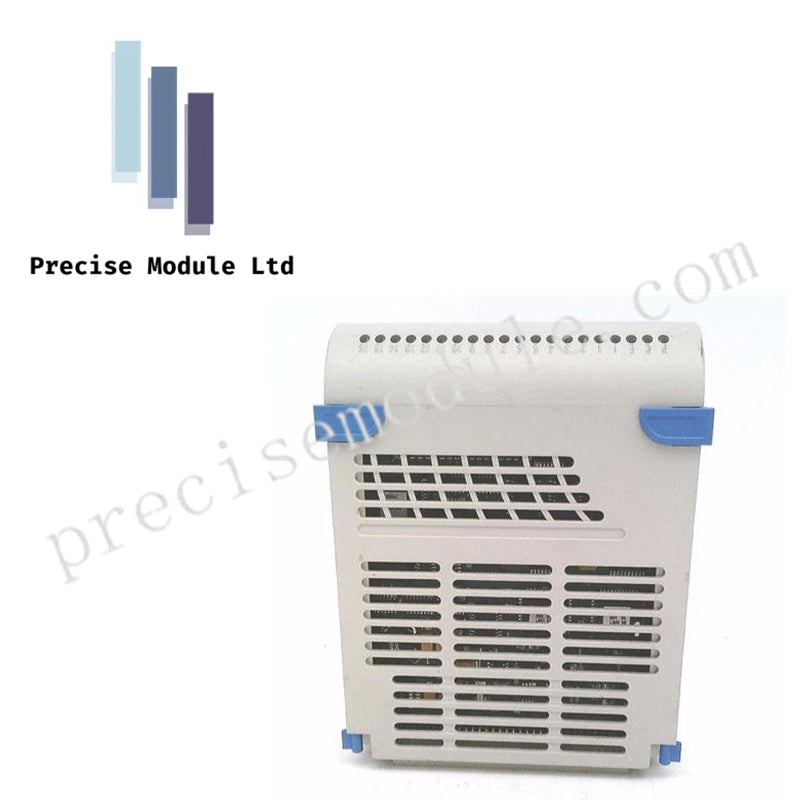

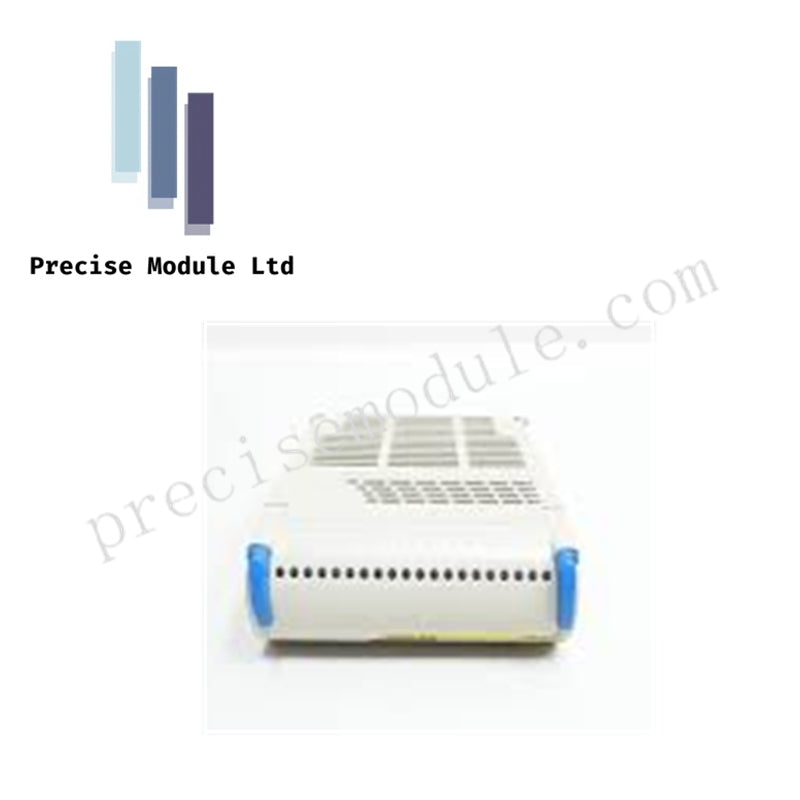

Emerson Ovation 5X00070G01 | 16-Channel Digital Input Module

Overview

The Emerson Ovation 5X00070G01 is a highly reliable Digital Input/Output (DIO) module designed for use in the Ovation Distributed Control System (DCS). It is specifically engineered for high-performance process control in critical applications like power plants and water treatment facilities. With 16 isolated channels, this module facilitates the acquisition of digital signals from various field devices such as switches and sensors.

Key Features

• Model: Emerson Ovation 5X00070G01

• Type: 16-Channel Digital Input (Contact Input)

• Input Voltage: Typically 24V DC or 125V DC (depending on configuration)

• Power Consumption: 3.5W (nominal)

• Isolation: Optical isolation for protection from electrical surges

• Mounting: Easily integrates into standard Ovation I/O branch base

• Diagnostics:

  • Individual channel status LEDs

  • Module OK and Fault indicators

  • Sequence of Events (SOE) capability with 1 ms resolution

• Hot-Swappable: Can be replaced without interrupting the system

• Configurable: Software-selectable filtering to eliminate mechanical switch bounce

• Ruggedized: Built for environments with high electromagnetic interference (EMI), like turbine decks and boiler rooms

Technical Specifications

Applications

The Ovation 5X00070G01 module is ideal for applications requiring robust signal acquisition and digital input capabilities. It is primarily used in power plant control systems and water treatment facilities, offering essential functionality for critical process control operations.

Siemens 6SL3912-5AP34-0AA0 | Active Interface Module (AIM) for SINAMICS S120 Drive System

Overview

The Siemens 6SL3912-5AP34-0AA0 is an Active Interface Module (AIM) for the SINAMICS S120 drive system. This module is essential for line-side filtering, pre-charging circuits, and damping, enabling clean power regeneration in regenerative DC-link systems. It ensures the system can feed braking energy back into the power grid, significantly enhancing energy efficiency during operation.

Key Features

• Model: Siemens 6SL3912-5AP34-0AA0

• Type: Active Interface Module (AIM)

• Voltage Rating: 3-Phase 380–480 V AC (± 10%)

• Rated Current: 605 A

• Rated Power: Approximately 400 kW

• Harmonic Distortion: Reduces Total Harmonic Distortion (THD) to < 3%

• Cooling: Internal air cooling (requires adequate ventilation)

• Regeneration: Enables motor to act as a generator during braking, feeding energy back into the grid

• Pre-charging Circuit: Integrated components prevent inrush current damage by safely ramping up the DC link voltage

• Protection Rating: IP00 (open chassis, suitable for cabinet integration)

Technical Specifications

Applications

The Siemens 6SL3912-5AP34-0AA0 module is used in high-power SINAMICS S120 drive systems, where it enables energy regeneration and harmonic distortion reduction. It is ideal for industries that require high-efficiency motor control, such as pumps, fans, compressors, and motion control applications in sectors like manufacturing and process automation.

Comparison Summary: Emerson 5X00070G01 vs. Siemens 6SL3912-5AP34-0AA0
