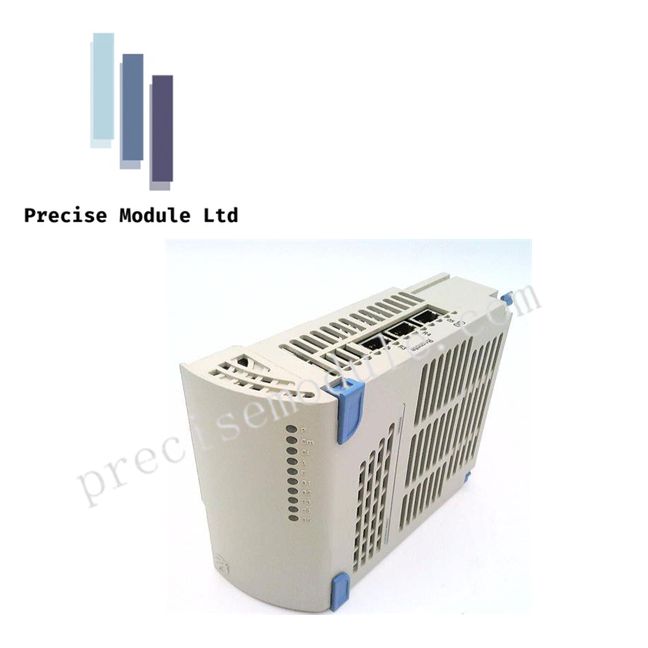

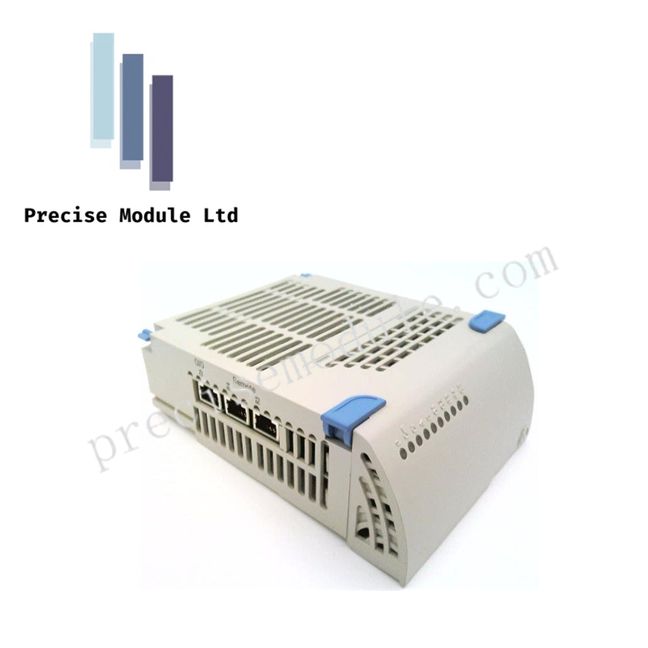

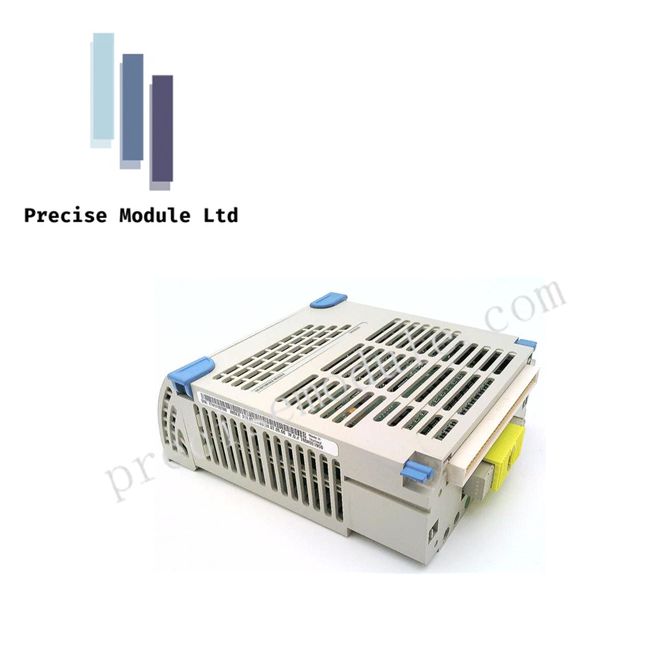

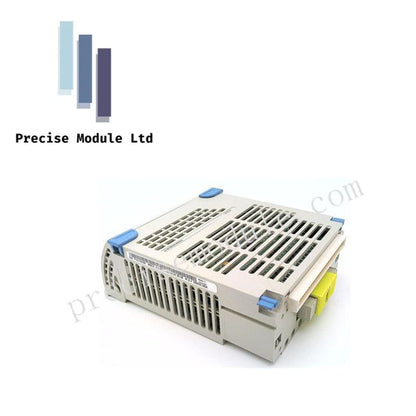

Emerson Ovation 5X00226G02 OCR 400 I/O Interface Module

Product Description

Overview

The Emerson Ovation 5X00226G02 is a high-performance I/O interface module, commonly known as an OCR 400 I/O interface, designed for the Ovation Distributed Control System (DCS). It functions as the central communication hub for a local or remote I/O branch, managing the flow of data between field sensors, actuators, and the Ovation Controller. Engineered for demanding industrial applications, it provides reliable, deterministic, and high-speed data transfer essential for process stability.

Technical Specifications

High-Speed Data Management

• Deterministic communication ensures consistent update intervals for stable closed-loop control

• Supports dual-channel redundancy to maintain operation during a module failure

• Capable of handling large I/O point counts with minimal latency

Signal Compatibility

• Interfaces with analog, digital, and HART-enabled modules

• Manages diverse signal types including discrete and continuous measurements

• Provides high accuracy and galvanic isolation to protect signal integrity

Reliability and Maintenance

• Hot-swappable design allows replacement without powering down the I/O branch

• On-board diagnostics detect internal errors or communication failures

• LED indicators display Power, Communication, and Fault status

Environmental and Physical Characteristics

• Operating temperature: 0°C to 60°C (32°F to 140°F)

• Built for resistance to vibration, electromagnetic interference (EMI), and industrial stress

• Plug-in form factor for easy integration into Ovation I/O base/rack assemblies

Applications

• Expanding and managing I/O branches in power generation and water treatment plants

• Integrating field sensors and actuators for precise process control

• Reducing downtime through predictive diagnostics and hot-swappable maintenance

• Compatible with Ovation Controller and software for seamless DCS integration

FAQ

Q: Can this module support both analog and digital I/O?
A: Yes, it interfaces with a broad spectrum of signal types, including analog, digital, and HART-enabled modules.

Q: Is the 5X00226G02 suitable for high-reliability applications?
A: Absolutely. It features dual-channel redundancy, robust diagnostics, and industrial-grade construction for mission-critical environments.

Q: How easy is it to expand a DCS system with this module?
A: Very easy. Its modular plug-in design allows scalable expansion of I/O branches without system downtime.
