F3237 F 3237 | HIMA |Safety-Related Input Module

Manufacturer: HIMA
Product No.: F3237
Condition：in Stock
Product Type: Safety-Related Input Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

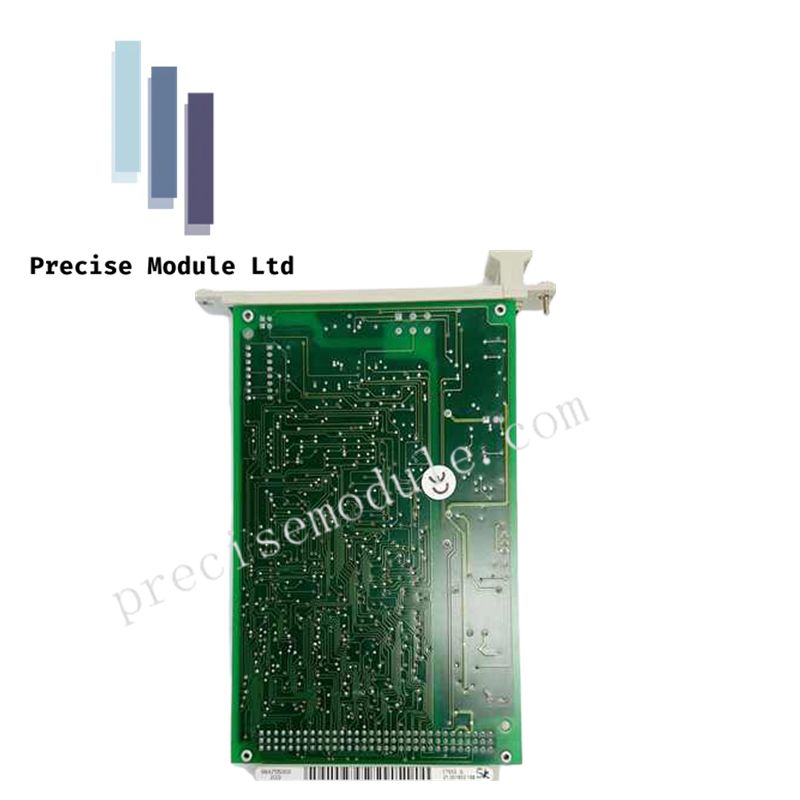

HIMA F3237 Safety Input Module – SIL 3 Certified for Critical Control

Overview

The HIMA F3237 is a high-performance safety input module developed for integration into HIMA HIMatrix safety systems. Designed for SIL 3 applications under IEC 61508, it is ideal for industries requiring the highest safety integrity, including process automation, energy production, and transportation infrastructure.

With support for NAMUR proximity switches (DIN 19234), advanced diagnostic functions, and full redundancy support, the F3237 ensures reliable operation in safety-critical environments.

Key Features & Specifications

Feature	Specification
Model Number	F3237
Manufacturer	HIMA
Product Type	Safety-related Input Module
Number of Channels	8 input channels
Input Type	Single-channel, galvanically isolated
Input Voltage	24 V DC
Input Current	Up to 2 A
Response Time	≤ 2 ms
Diagnostic Coverage	100%
Supported Sensors	NAMUR proximity switches (DIN 19234)
Fault Detection	Short-circuit and wire-break monitoring
Status Indicators	LED indicators for each channel
Safety Integrity Level	SIL 3 (IEC 61508)
ATEX Rating	II 3G Ex nA IIC T4
Power Consumption	< 10 W
Mounting Type	DIN rail
Dimensions (H × W × D)	130 mm × 100 mm × 120 mm
Weight	Approx. 1 kg
Operating Temperature	−20°C to +60°C
Storage Temperature	−40°C to +85°C
Communication Interfaces	Ethernet, RS-232, CAN bus
Redundancy Support	Yes
Configuration Software	SILworX or ELOP II Factory
